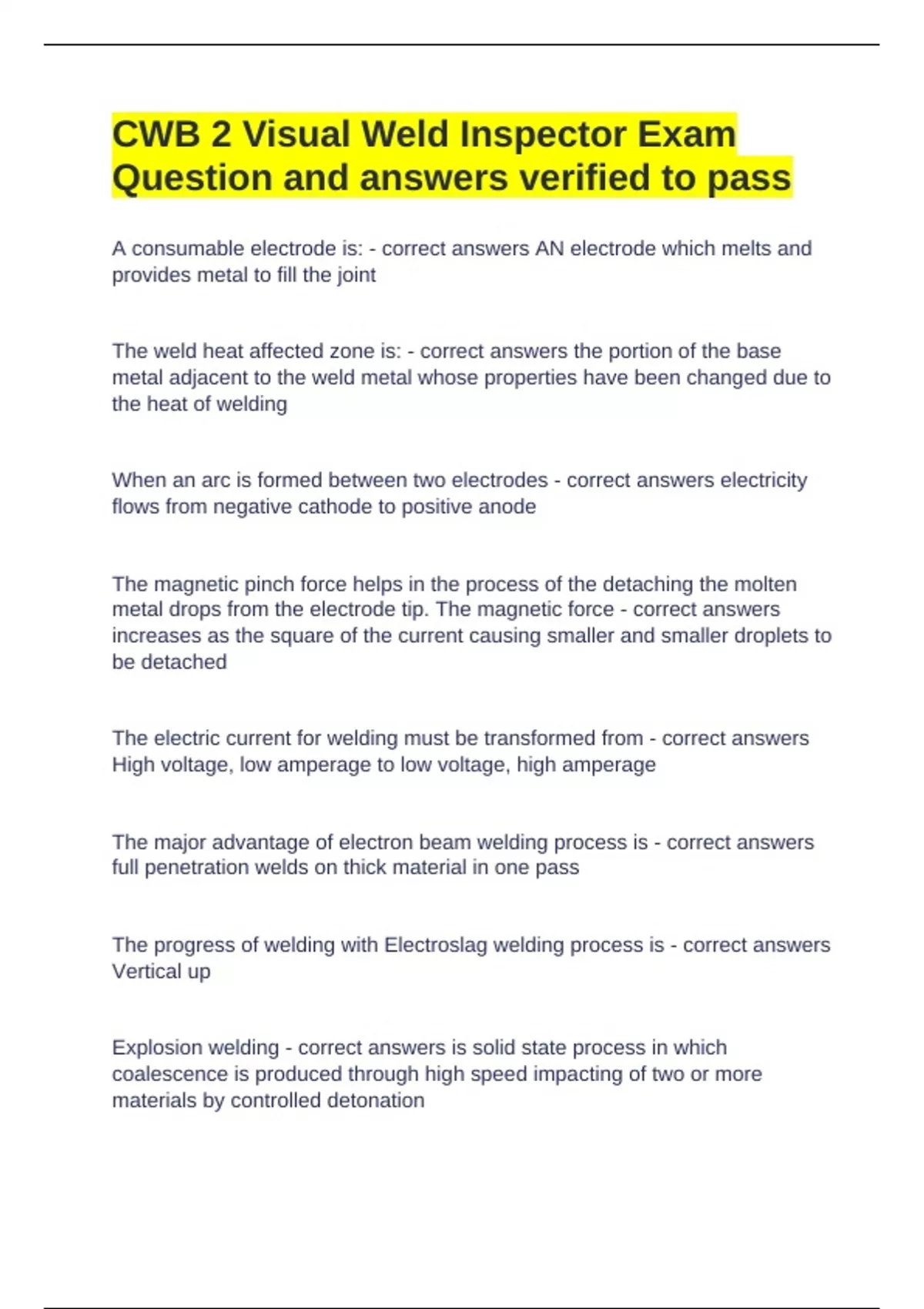

CWB 2 Visual Weld Inspector Exam
Question and answers verified to pass
A consumable electrode is: - correct answers AN electrode which melts and
provides metal to fill the joint
The weld heat affected zone is: - correct answers the portion of the base
metal adjacent to the weld metal whose properties have been changed due to
the heat of welding
When an arc is formed between two electrodes - correct answers electricity
flows from negative cathode to positive anode
The magnetic pinch force helps in the process of the detaching the molten
metal drops from the electrode tip. The magnetic force - correct answers
increases as the square of the current causing smaller and smaller droplets to
be detached
The electric current for welding must be transformed from - correct answers
High voltage, low amperage to low voltage, high amperage
The major advantage of electron beam welding process is - correct answers
full penetration welds on thick material in one pass
The progress of welding with Electroslag welding process is - correct answers
Vertical up
Explosion welding - correct answers is solid state process in which
coalescence is produced through high speed impacting of two or more
materials by controlled detonation
,A typical application for thermite welding is - correct answers joining of rails
Welding without filler metal with GTAW process is referred to as - correct
answers autogenous welding
A typical weld flaw associated with GTAW process is - correct answers
porosity
SMAW power sources typically have a volt-ampere curve that is - correct
answers drooping
Once a box of E49XX low hydrogen electrodes has been opened the
electrodes may remain at ambient temperature for up to a maximum of -
correct answers 4 hours
Shielded Metal ARC Welding (SMAW) process - correct answers establishes
an arc between the end of a covered electrode and the work piece.
The spray mode of metal transfer is achieved with - correct answers high
amperage, high voltage and argon-rich shielding gas
digital wire feeders - correct answers have feedback systems to maintain the
preset wire feed speed
wire designated by CSA standard W48 as an E491T-9MJ-H8 - correct
answers Results in weld deposit with a maximum of 8 ml diffusible hydrogen
per 100 g of weld metal
,Self shield flux cored wires are - correct answers better able to tolerate air
currents
The AWS classes metal cored wire along with - correct answers solid wires
SAW Fluxes that significantly influence the composition of the weld metal
through slag/metal reactions are called - correct answers active
Resistance welding of aluminum - correct answers Can be done but with
greater difficulty due to its low resistivity
The plasma arc welding process is similar to what other welding process in
principles of operation - correct answers GTAW
For a flat weld profile and good penetration profile using the MCAW process -
correct answers 15 degree travel angle using push technique should be used
What is the effect of tip to work distance (electrical sickout on deposition rate
of submerged are welding - correct answers decreasing tip to work distance
without adjusting any other variable will cause a increase in deposition rate
Electrode stick out is measured - correct answers From tip of nozzle to end of
electrode
Contact tip-to-work is the sum (CTTW) - correct answers of the electrode
extension and arc length
Increasing electrical sickout - correct answers decreases voltage, decreases
current and increases resistance
, Which welding process for GMAW has large weld pool and is rather large and
difficult to control out of position - correct answers Spray transfer
Which welding process for GMAW has excessive spatter - correct answers
Globular transfer
Which welding process for GMAW usually has lack of fusion - correct answers
Short Circuit
what electrodes never go in holding or baking oven - correct answers
cellulosic
Submerged Arc Welding disadvantage - correct answers Requires inter-pass
and post weld slag removal
What welding process has the greatest HAZ - correct answers Electroslag
GTAW when a BALL is formed on Tungsten - correct answers Aluminum
Which welding process can be done outside Earth's atmosphere - correct
answers Diffusion
With tungsten arc, most of the current across the arc is carried by - correct
answers electrons
Electrode beam welding has - correct answers a very narrow weld and heat
affected zone
