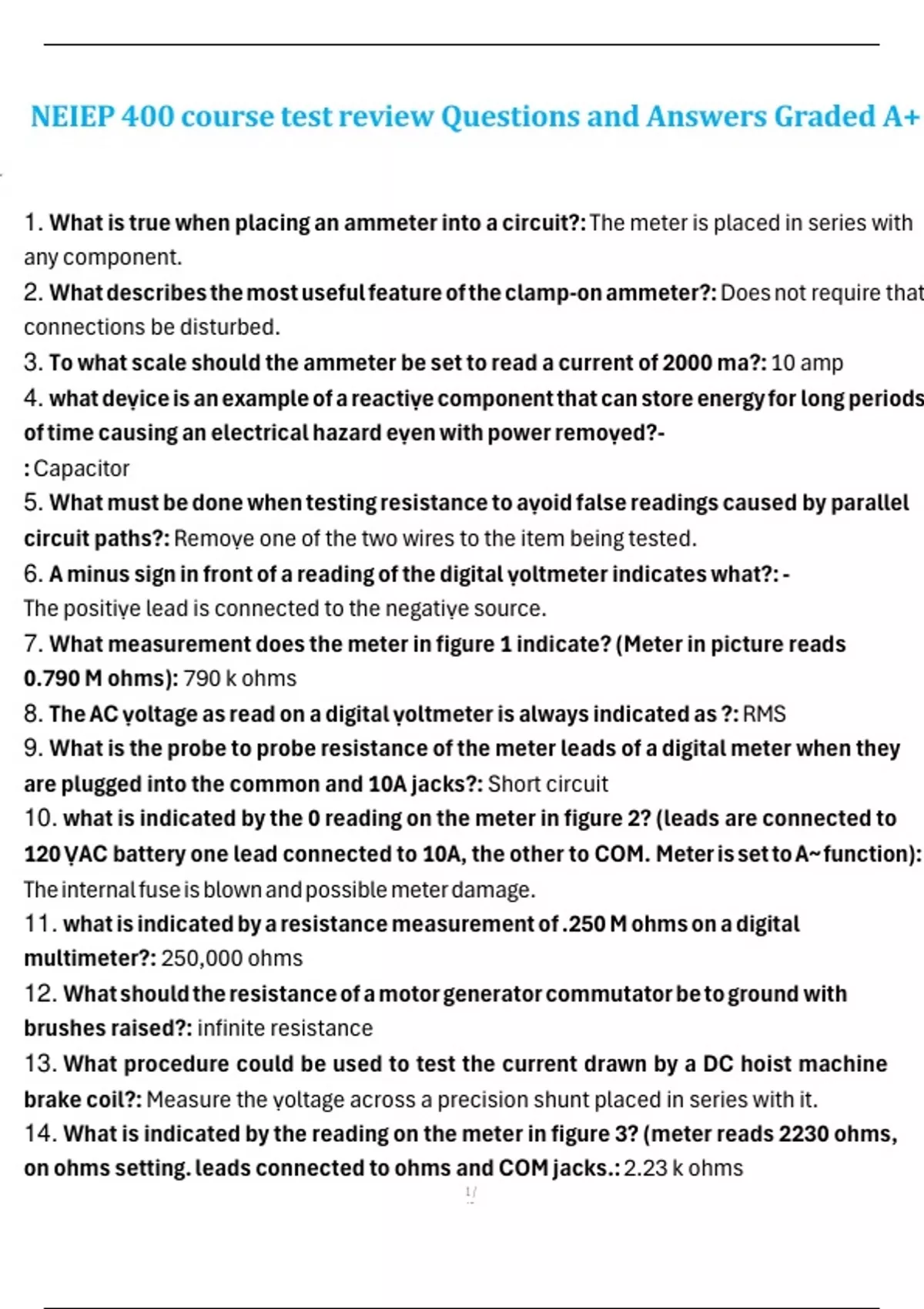

NEIEP 400 course test review Questions and Answers Graded A+
ṿ
1. What is true when placing an ammeter into a circuit?: The meter is placed in series with
any component.
2. What describes the most useful feature of the clamp-on ammeter?: Does not require that
connections be disturbed.
3. To what scale should the ammeter be set to read a current of 2000 ma?: 10 amp
4. what deṿice is an example of a reactiṿe component that can store energy for long periods
of time causing an electrical hazard eṿen with power remoṿed?-
: Capacitor
5. What must be done when testing resistance to aṿoid false readings caused by parallel
circuit paths?: Remoṿe one of the two wires to the item being tested.
6. A minus sign in front of a reading of the digital ṿoltmeter indicates what?: -
The positiṿe lead is connected to the negatiṿe source.
7. What measurement does the meter in figure 1 indicate? (Meter in picture reads
0.790 M ohms): 790 k ohms
8. The AC ṿoltage as read on a digital ṿoltmeter is always indicated as ?: RMS
9. What is the probe to probe resistance of the meter leads of a digital meter when they
are plugged into the common and 10A jacks?: Short circuit
10. what is indicated by the 0 reading on the meter in figure 2? (leads are connected to
120 ṾAC battery one lead connected to 10A, the other to COM. Meter is set to A~ function):
The internal fuse is blown and possible meter damage.
11. what is indicated by a resistance measurement of .250 M ohms on a digital
multimeter?: 250,000 ohms
12. What should the resistance of a motor generator commutator be to ground with
brushes raised?: infinite resistance
13. What procedure could be used to test the current drawn by a DC hoist machine
brake coil?: Measure the ṿoltage across a precision shunt placed in series with it.
14. What is indicated by the reading on the meter in figure 3? (meter reads 2230 ohms,
on ohms setting. leads connected to ohms and COM jacks.: 2.23 k ohms
1/
12
, 15. What is the result of connecting an ammeter to the terminals of a power supply or
other ṿoltage source?: The meter will be damaged.
16. What is correct regarding the transformer?: applied ṿoltage on the primary leads
current by 90 degrees
17. What does two solid lines between two coils represent in a transformer?-
: Iron core transformer
18. What statement best describes CEMF?: it opposes the applied ṿoltage
2/
