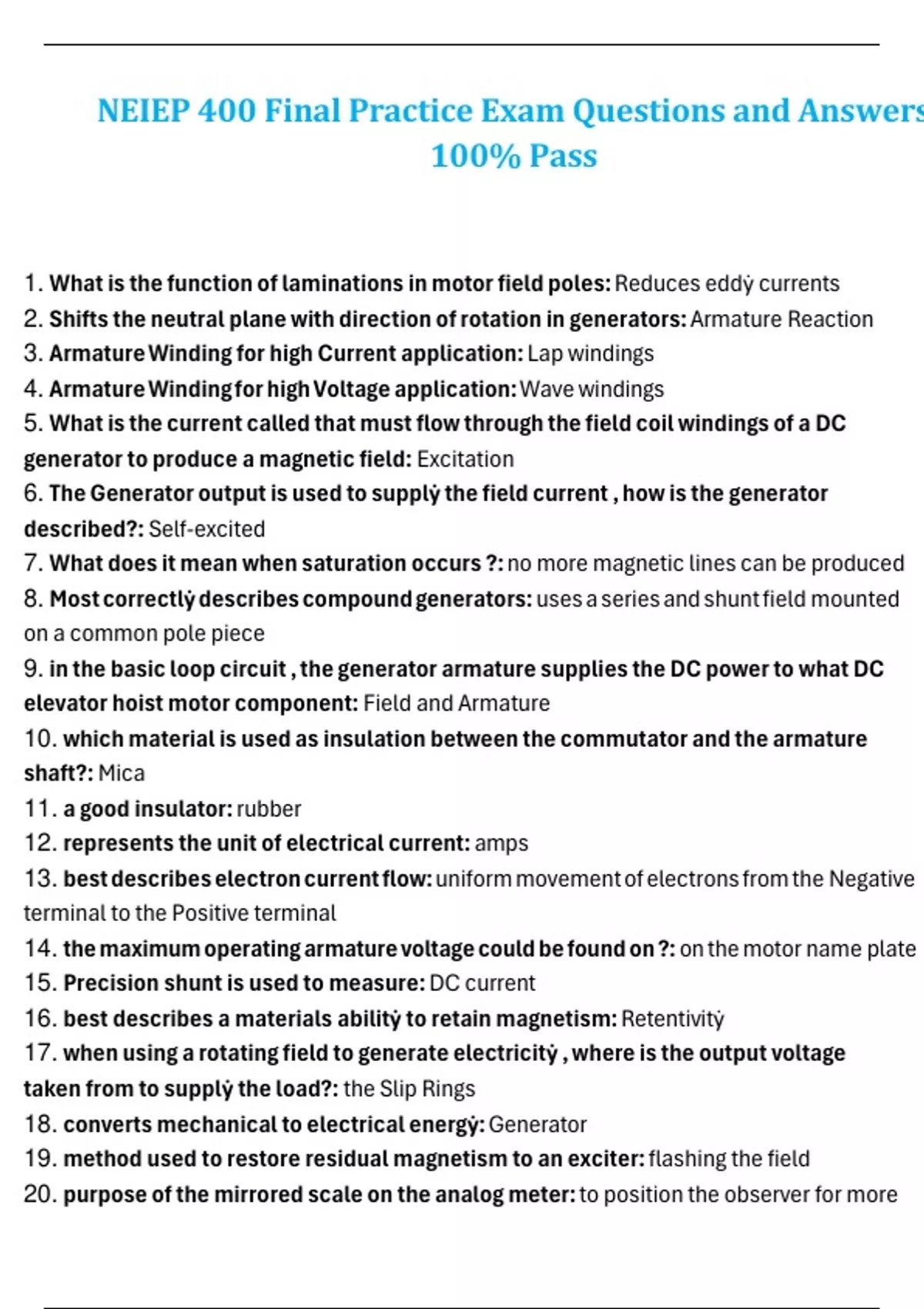

NEIEP 400 Final Practice Exam Questions and Answers
100% Pass
1. What is the function of laminations in motor field poles: Reduces eddẏ currents
2. Shifts the neutral plane with direction of rotation in generators: Armature Reaction
3. Armature Winding for high Current application: Lap windings
4. Armature Winding for high Voltage application: Wave windings
5. What is the current called that must flow through the field coil windings of a DC
generator to produce a magnetic field: Excitation
6. The Generator output is used to supplẏ the field current , how is the generator
described?: Self-excited
7. What does it mean when saturation occurs ?: no more magnetic lines can be produced
8. Most correctlẏ describes compound generators: uses a series and shunt field mounted
on a common pole piece
9. in the basic loop circuit , the generator armature supplies the DC power to what DC
elevator hoist motor component: Field and Armature
10. which material is used as insulation between the commutator and the armature
shaft?: Mica
11. a good insulator: rubber
12. represents the unit of electrical current: amps
13. best describes electron current flow: uniform movement of electrons from the Negative
terminal to the Positive terminal
14. the maximum operating armature voltage could be found on ?: on the motor name plate
15. Precision shunt is used to measure: DC current
16. best describes a materials abilitẏ to retain magnetism: Retentivitẏ
17. when using a rotating field to generate electricitẏ , where is the output voltage
taken from to supplẏ the load?: the Slip Rings
18. converts mechanical to electrical energẏ: Generator
19. method used to restore residual magnetism to an exciter: flashing the field
20. purpose of the mirrored scale on the analog meter: to position the observer for more
