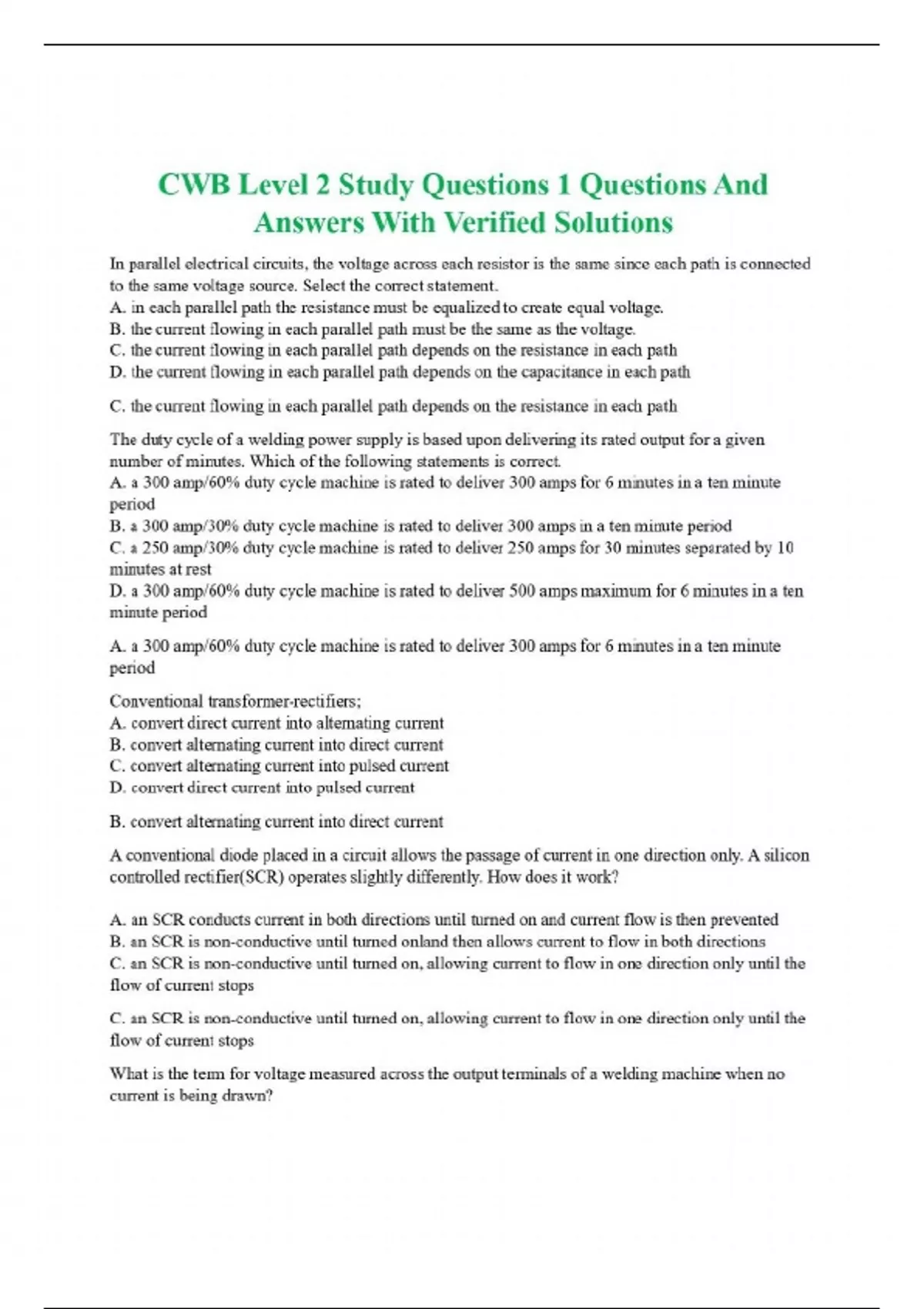

CWB Level 2 Study Questions 1 Questions And Answers With Verified Solutions

CWB Level 2 Study Questions 1 Questions And Answers With Verified Solutions In parallel electrical circuits, the voltage across each resistor is the same since each path is connected to the same voltage source. Select the correct statement. A. in each parallel path the resistance must be equalized to create equal voltage. B. the current flowing in each parallel path must be the same as the voltage. C. the current flowing in each parallel path depends on the resistance in each path D. the current flowing in each parallel path depends on the capacitance in each path C. the current flowing in each parallel path depends on the resistance in each path The duty cycle of a welding power supply is based upon delivering its rated output for a given number of minutes. Which of the following statements is correct. A. a 300 amp/60% duty cycle machine is rated to deliver 300 amps for 6 minutes in a ten minute period B. a 300 amp/30% duty cycle machine is rated to deliver 300 amps in a ten minute period C. a 250 amp/30% duty cycle machine is rated to deliver 250 amps for 30 minutes separated by 10 minutes at rest D. a 300 amp/60% duty cycle machine is rated to deliver 500 amps maximum for 6 minutes in a ten minute period A. a 300 amp/60% duty cycle machine is rated to deliver 300 amps for 6 minutes in a ten minute period Conventional transformer-rectifiers; A. convert direct current into alternating current B. convert alternating current into direct current C. convert alternating current into pulsed current D. convert direct current into pulsed current B. convert alternating current into direct current A conventional diode placed in a circuit allows the passage of current in one direction only. A silicon controlled rectifier(SCR) operates slightly differently. How does it work? A. an SCR conducts current in both directions until turned on and current flow is then prevented B. an SCR is non-conductive until turned onland then allows current to flow in both directions C. an SCR is non-conductive until turned on, allowing current to flow in one direction only until the flow of current stops C. an SCR is non-conductive until turned on, allowing current to flow in one direction only until the flow of current stops What is the term for voltage measured across the output terminals of a welding machine when no current is being drawn?
