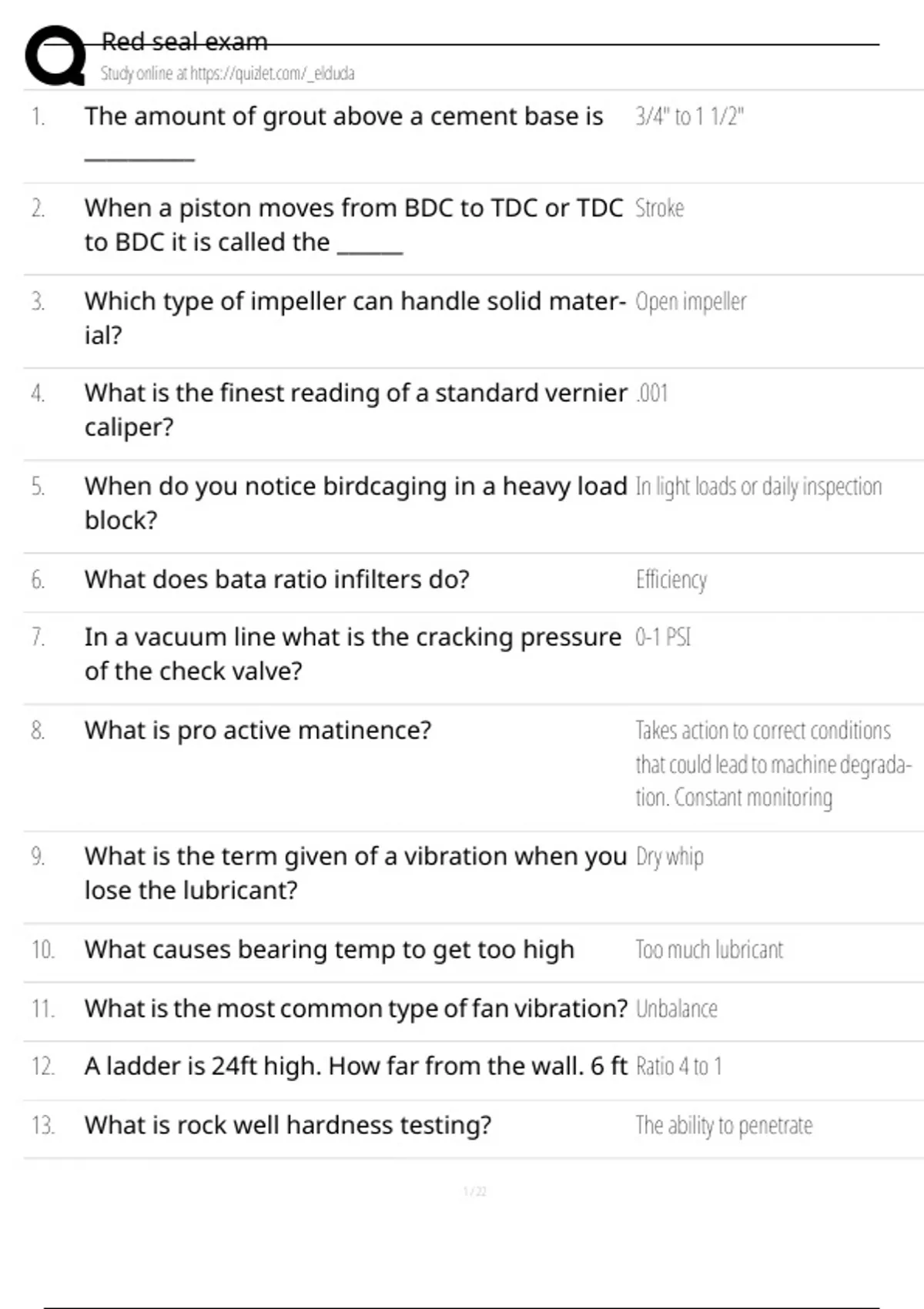

Red seal exam
Study online at https://quizlet.com/_elduda
1. The amount of grout above a cement base is 3/4" to 1 1/2"
__________
2. When a piston moves from BDC to TDC or TDC Stroke
to BDC it is called the ______
3. Which type of impeller can handle solid mater- Open impeller
ial?
4. What is the finest reading of a standard vernier .001
caliper?
5. When do you notice birdcaging in a heavy load In light loads or daily inspection
block?
6. What does bata ratio infilters do? Efficiency
7. In a vacuum line what is the cracking pressure 0-1 PSI
of the check valve?
8. What is pro active matinence? Takes action to correct conditions
that could lead to machine degrada-
tion. Constant monitoring
9. What is the term given of a vibration when you Dry whip
lose the lubricant?
10. What causes bearing temp to get too high Too much lubricant
11. What is the most common type of fan vibration? Unbalance
12. A ladder is 24ft high. How far from the wall. 6 ft Ratio 4 to 1
13. What is rock well hardness testing? The ability to penetrate
, Red seal exam
Study online at https://quizlet.com/_elduda
14. What causes babit bearings to rotate in their No keys cut or grooves or slots
housing?
15. What should you use to check a machine for Volt meter
power?
16. When a tank is uneven and you want a tempo- Fill underneath with grout
rary fix, what should you do?
17. How is a granite surface properly stored With a wooden cover
18. What is instrument used to scribe a line parallel Hermaphrodite caliper
to the edge of an object
19. What type of unthreaded fasteners would you Blind rivets
use when use when there is no access behind
the object
20. Why is a pipe thread tapered To prevent leakage
21. When should you temper a prick punch after Immediately
sharpening
22. When torquing a bolt what do you use to mul- A torque multiplier
tiply the amount or torque needed
23. Oil mist lubrication is used for? High speed applications
24. What is a full fluid film 2 surfaces are completely separated
by film of lubrication
25. A 4 leg bridal hitch, the load is divided by 2 Two just balance the load
because the other
26. How high to tie scaffolding 3 scaffold high
, Red seal exam
Study online at https://quizlet.com/_elduda
27. Where are stellite sleeves used Slurries
28. What is the first thing you do when fitting babet Relieving 9 to 11 millimeters and to
bearing keep shaft from binding
29. What is used to install a piece of equipment at Dowel pins
the exact position
30. When aligning a coupling, the faces are closer Under front foot of motor
at the top than the bottom. Where do you place
shims?
31. When the pump is pumping extremely hot fluid Motor should be higher than pump
32. If you mount a dial indicator on a flywheel cas- Flywheel face runout
ing and you read the face of the flywheel as you
turn it slowly, you are measuring ______.
33. Coefficency of expansion L x Temp change x Coeffiecient
34. What is the angle of flare for tubing 37 degrees. JIC fitting
35. Strobe lights are used to find Phase angle
36. How is overspeed trip activated? Centrifugal force
37. On a 2264k bearing, how do you adjust the The locknut on the tapered sleeve
bearing
38. Why do you use sleeves on shafts? Reduce cost
39. How do you adjust end float on bearings? Use shims to adjust and float
40. What causes jaw clutches to wear? Engaging at high-speed
