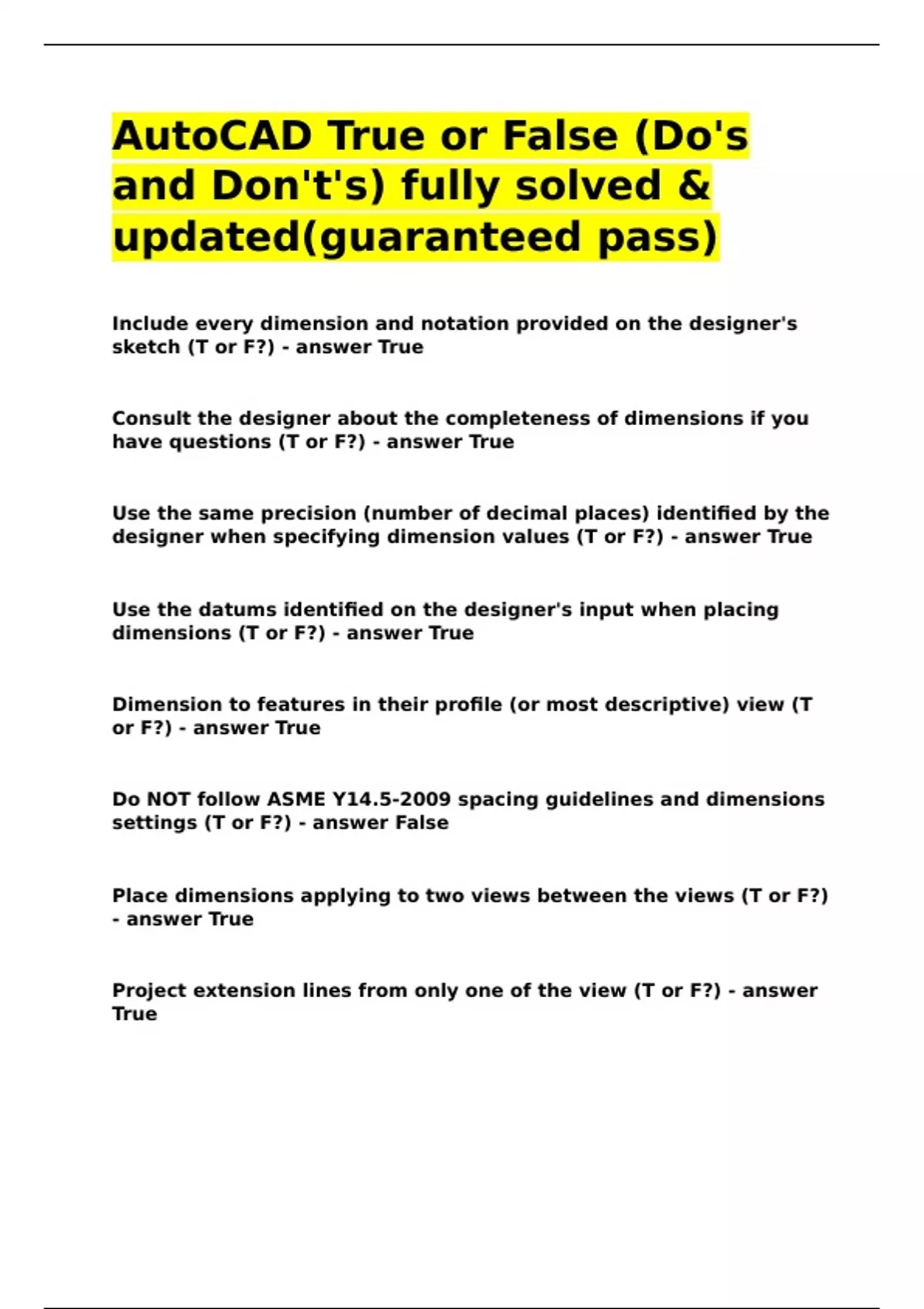

AutoCAD True or False (Do-s and Don-t-s) fully solved & updated(guaranteed pass).

Content preview

AutoCAD True or False (Do's
and Don't's) fully solved &
updated(guaranteed pass)
Include every dimension and notation provided on the designer's
sketch (T or F?) - answer True


Consult the designer about the completeness of dimensions if you
have questions (T or F?) - answer True


Use the same precision (number of decimal places) identified by the
designer when specifying dimension values (T or F?) - answer True


Use the datums identified on the designer's input when placing
dimensions (T or F?) - answer True


Dimension to features in their profile (or most descriptive) view (T
or F?) - answer True


Do NOT follow ASME Y14.5-2009 spacing guidelines and dimensions
settings (T or F?) - answer False


Place dimensions applying to two views between the views (T or F?)
- answer True


Project extension lines from only one of the view (T or F?) - answer
True
