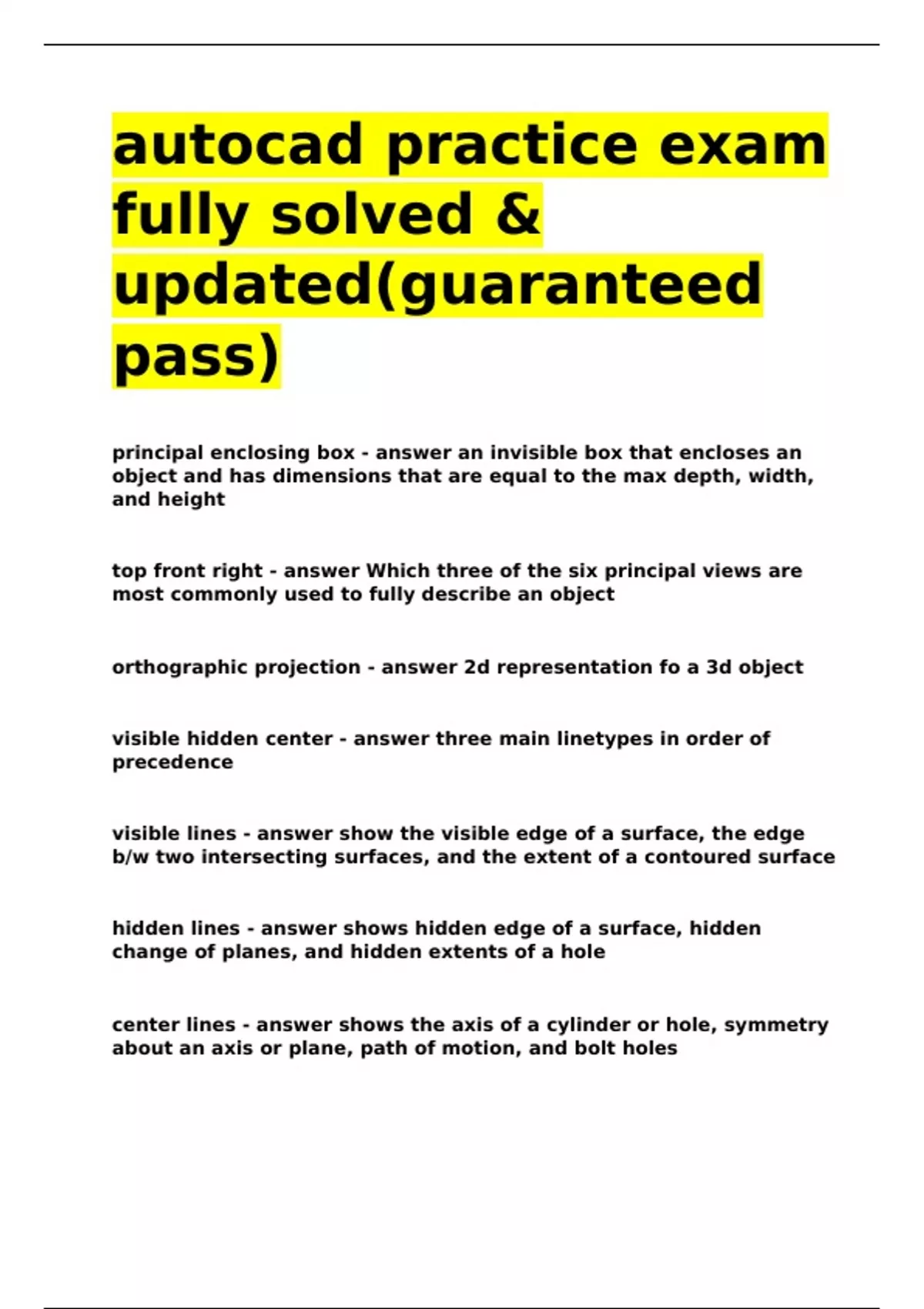

autocad practice exam
fully solved &
updated(guaranteed
pass)
principal enclosing box - answer an invisible box that encloses an
object and has dimensions that are equal to the max depth, width,
and height
top front right - answer Which three of the six principal views are
most commonly used to fully describe an object
orthographic projection - answer 2d representation fo a 3d object
visible hidden center - answer three main linetypes in order of
precedence
visible lines - answer show the visible edge of a surface, the edge
b/w two intersecting surfaces, and the extent of a contoured surface
hidden lines - answer shows hidden edge of a surface, hidden
change of planes, and hidden extents of a hole
center lines - answer shows the axis of a cylinder or hole, symmetry
about an axis or plane, path of motion, and bolt holes
, normal surface - answer a planar surface that is orthogonal to the
principal planes
inclined surface - answer foreshortened in two principal views of a
standard multiview
oblique surface - answer foreshortened in three principal views of a
standard multiview
a cylindrical feature - answer what type of feature appears circular
from one principal view and rectangular in the other two
elliptical - answer when viewed from an inclined or oblique angle, a
circle becomes foreshortened and appears...
a primary auxiliary view - answer what type of view is needed to
measure the true size and shape of an inclined surface and its
features
secondary auxiliary view - answer type of view needed to measure
the true size and shape of an oblique surface and its features
partial auxiliary view - answer shows only the inclined surface
miter line - answer A special construction line used to share the
depth dimension between the top and right side views of a
multiview drawing
dimension - answer numerical value used to define the size,
location, geometric characteristics or surface texture of a part or
feature
