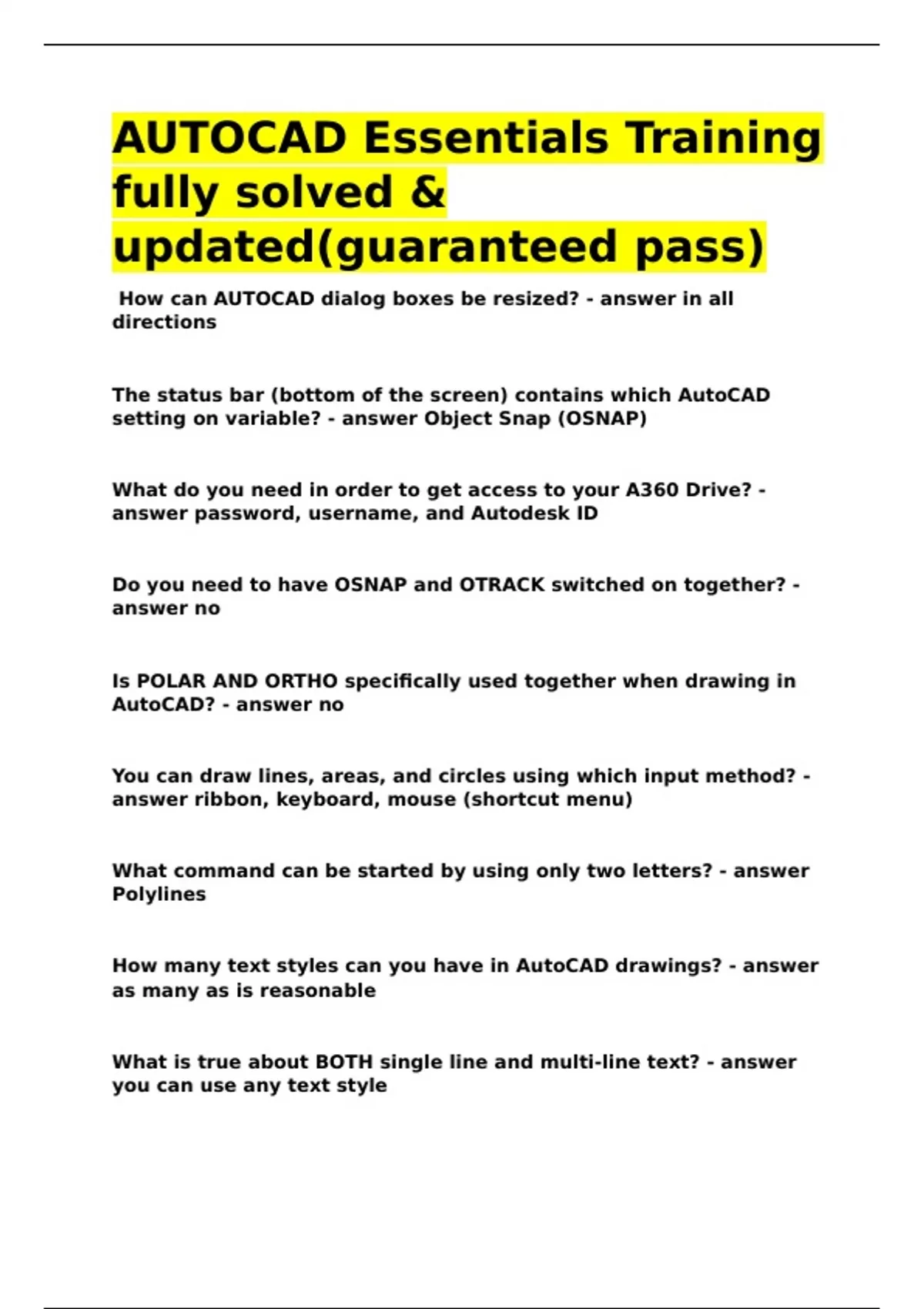

AUTOCAD Essentials Training
fully solved &
updated(guaranteed pass)
How can AUTOCAD dialog boxes be resized? - answer in all
directions
The status bar (bottom of the screen) contains which AutoCAD
setting on variable? - answer Object Snap (OSNAP)
What do you need in order to get access to your A360 Drive? -
answer password, username, and Autodesk ID
Do you need to have OSNAP and OTRACK switched on together? -
answer no
Is POLAR AND ORTHO specifically used together when drawing in
AutoCAD? - answer no
You can draw lines, areas, and circles using which input method? -
answer ribbon, keyboard, mouse (shortcut menu)
What command can be started by using only two letters? - answer
Polylines
How many text styles can you have in AutoCAD drawings? - answer
as many as is reasonable
What is true about BOTH single line and multi-line text? - answer
you can use any text style
, can go on any layer
annotative
Dimensions are there to _________________________ - answer provide
different styles for different uses
When dimensioning, what setting has to be used to provide
accuracy? - answer OSNAP
Can the TABLE command can only be accessed from the AutoCAD
ribbon? - answer no
Do you normally place a titleblock in a layout tab (paperspace?) -
answer yes
Which tab would you right click to get to the shortcut menu that
opens the Page Setup Manager? - answer the current layout tab
To add viewport in a layout you have to use a contextual tab on the
ribbon. What is it called? - answer the layout tab
If a viewport in a layout tab has a scale of 1:50, what should the
annotation scale be in the model tab to use annotative scaling? -
answer 1:50
To plot a drawing with preset settings, what must be used? - answer
page set up
You can change your workspace using the Quick Access Toolbar at
the top of the AutoCAD screen. Where else can your workspace be
changed? - answer status bar
