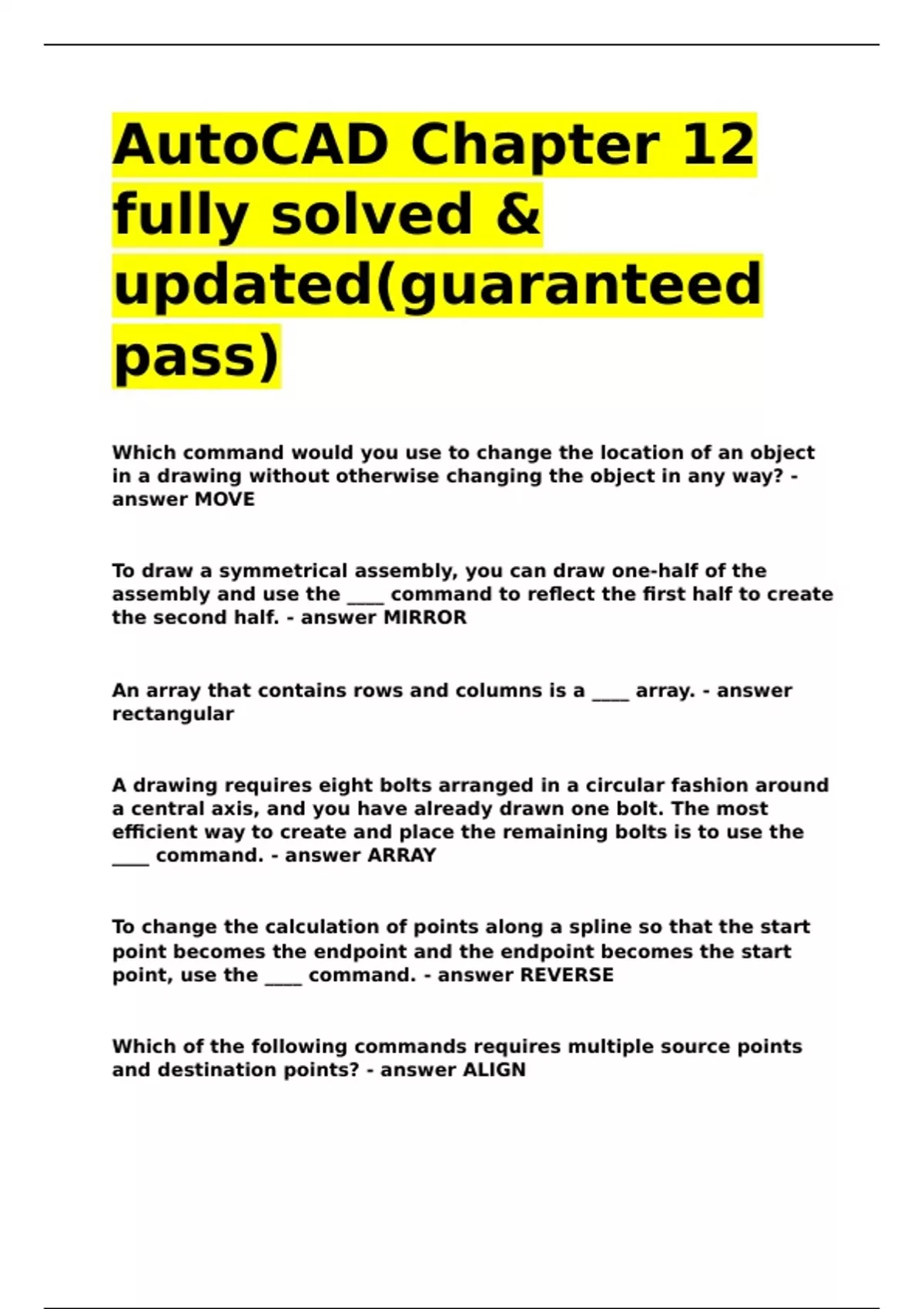

AutoCAD Chapter 12
fully solved &
updated(guaranteed
pass)
Which command would you use to change the location of an object
in a drawing without otherwise changing the object in any way? -
answer MOVE
To draw a symmetrical assembly, you can draw one-half of the
assembly and use the ____ command to reflect the first half to create
the second half. - answer MIRROR
An array that contains rows and columns is a ____ array. - answer
rectangular
A drawing requires eight bolts arranged in a circular fashion around
a central axis, and you have already drawn one bolt. The most
efficient way to create and place the remaining bolts is to use the
____ command. - answer ARRAY
To change the calculation of points along a spline so that the start
point becomes the endpoint and the endpoint becomes the start
point, use the ____ command. - answer REVERSE
Which of the following commands requires multiple source points
and destination points? - answer ALIGN
