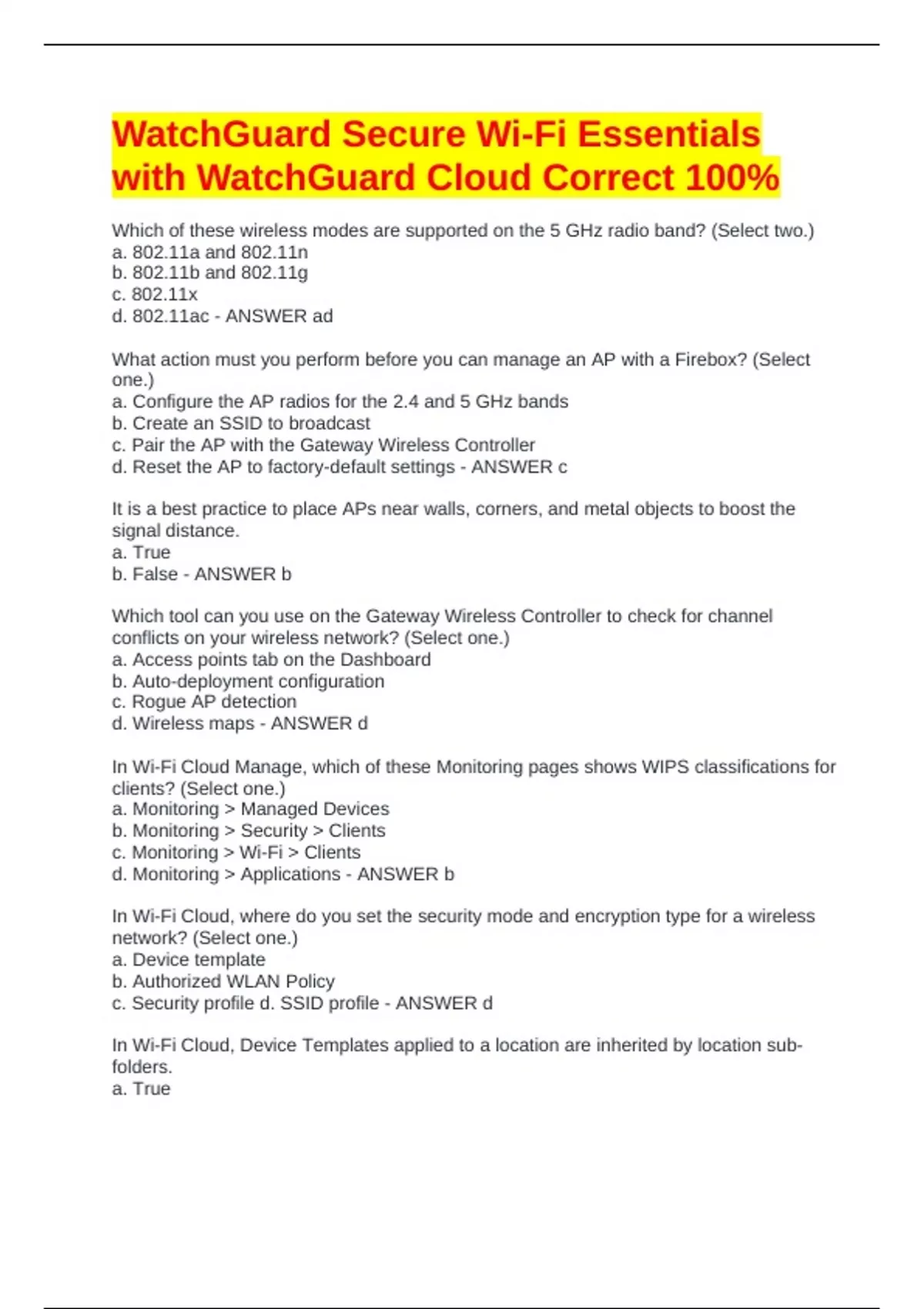

WatchGuard Secure Wi-Fi Essentials
with WatchGuard Cloud Correct 100%
Which of these wireless modes are supported on the 5 GHz radio band? (Select two.)
a. 802.11a and 802.11n
b. 802.11b and 802.11g
c. 802.11x
d. 802.11ac - ANSWER ad
What action must you perform before you can manage an AP with a Firebox? (Select
one.)
a. Configure the AP radios for the 2.4 and 5 GHz bands
b. Create an SSID to broadcast
c. Pair the AP with the Gateway Wireless Controller
d. Reset the AP to factory-default settings - ANSWER c
It is a best practice to place APs near walls, corners, and metal objects to boost the
signal distance.
a. True
b. False - ANSWER b
Which tool can you use on the Gateway Wireless Controller to check for channel
conflicts on your wireless network? (Select one.)
a. Access points tab on the Dashboard
b. Auto-deployment configuration
c. Rogue AP detection
d. Wireless maps - ANSWER d
In Wi-Fi Cloud Manage, which of these Monitoring pages shows WIPS classifications for
clients? (Select one.)
a. Monitoring > Managed Devices
b. Monitoring > Security > Clients
c. Monitoring > Wi-Fi > Clients
d. Monitoring > Applications - ANSWER b
In Wi-Fi Cloud, where do you set the security mode and encryption type for a wireless
network? (Select one.)
a. Device template
b. Authorized WLAN Policy
c. Security profile d. SSID profile - ANSWER d
In Wi-Fi Cloud, Device Templates applied to a location are inherited by location sub-
folders.
a. True
,b. False - ANSWER b
Which of these AP WIPS classifications refers to an device outside your network?
(Select one.)
a. External
b. Authorized
c. Rogue
d. Uncategorized - ANSWER a
If you enable VLAN tagging in an SSID, you must also enable management VLAN
tagging in the Gateway Wireless Controller settings.
a. True
b. False - ANSWER b. (False) You can optionally enable management VLAN tagging,
but it is not required.
Which passphrase does the Gateway Wireless Controller use to connect to a paired
WatchGuard AP device? (Select one.)
a. WPA/WPA2 (PSK) passphrase
b. Firebox configuration passphrase
c. Pairing passphrase
d. WatchGuard AP passphrase - ANSWER d. The Gateway Wireless Controller uses
the WatchGuard AP passphrase to connect to all paired AP devices
Which of these options can you configure in the hotspot connection settings? (Select
three.)
a. Allow hotspot users to connect without credentials.
b. Allow hotspot users to connect without accepting Terms and Conditions.
c. Require hotspot users to authenticate with a user name and passphrase.
d. Require hotspot users to authenticate with only a passphrase.
e. Require users to authenticate with a VPN client. - ANSWER a, c, d. There are no
options to skip the Terms and Conditions or require a VPN client
Name the two types of WatchGuard wireless devices - ANSWER 1: Firebox and XTM
devices with built-in wireless access points
2: WatchGuard AP devices
Name the WatchGuard AP devices - ANSWER AP100, AP200, AP300 - indoor
AP102 - indoor/outdoor
,Name the Firebox and XTM devices with built-in wireless - ANSWER Firebox T10-W,
T30-W, T50-W
XTM 25-W, XTM 26-W, XTM 33-W
What functionality do both Firebox - XTM wireless devices and WatchGuard AP devices
share - ANSWER Support 2.4 GHz and 5 GHz, 802.11a/b/g/n (802.11ac for T30-W,
T50-W, AP300)
Managed by WatchGuard System Manager, Fireware XTM Web UI, or CLI
What functionality do WatchGuard AP devices have - ANSWER •Each AP device has
one or two radios
•Configure up to eight SSIDs per radio
•Must be paired with and managed bya Firebox or XTM device
Connect to a trusted, optional, or custom network
A single Firebox device can manage many access points
•You can configure the same SSID on more than one AP device for better wireless
coverage
What common set of wireless features and configuration settings do Firebox and XTM
wireless devices share - ANSWER •Single dual-band radio
•2.4 GHz / 5 GHz switchable
•802.11a/b/g/n
•802.11ac (T30-W and T50-W only)
•3 SSIDs
Which Firebox and XTM wireless devices have internal antennas - ANSWER Firebox
T10-W, T30-W, T50-W
, Which Firebox and XTM wireless devices have external antennas - ANSWER XTM 25-
W
XTM 25-W
XTM33-W
What functionality does the AP100 and AP102 have - ANSWER •Single dual-band radio
•2.4 GHz / 5 GHz switchable
•2x2:2 MIMO 802.11 a/b/g/n
•Up to 300 Mbps
•8 SSIDs
What functionality does the AP200 have - ANSWER •Dual radios
•2.4GHz and 5 GHz
•2x2:2MIMO 802.11 a/b/g/n
•Up to 600 Mbps
•8 SSIDs per radio
What functionality does the AP300 have - ANSWER •Dual radios
•2.4GHz and 5 GHz
•3x3MIMO 802.11 a/b/g/n/ac
•Up to1300 Mbps
•8 SSIDs per radio
