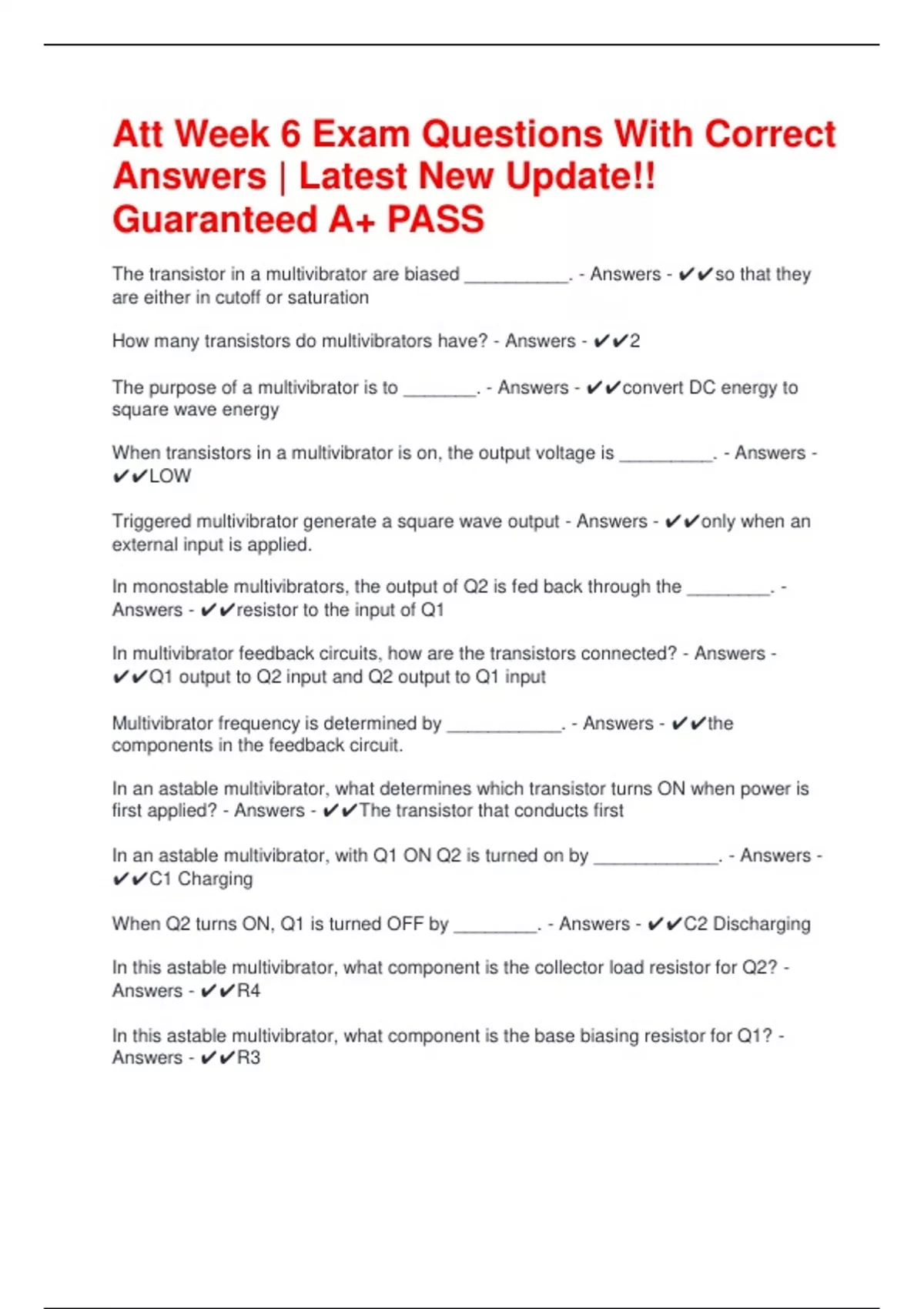

Document preview thumbnail
Preview 1 out of 3 pages
Exam (elaborations)

Att Week 6 Exam Questions With Correct Answers | Latest New Update!! Guaranteed A+ PASS

0.0
(0 reviews)
- sold
3 pages
2024/2025 Written for academic year
Institution Att
Course Att
Document preview thumbnail
Preview 1 out of 3 pages

Att Week 6 Exam Questions With Correct Answers Att Week 6 Exam Questions With Correct Answers | Latest New Update!! Guaranteed A+ PASS The transistor in a multivibrator are biased __________. - Answers - so that they are either in cutoff or saturation How many transistors do multivibrators have? - Answers - 2 The purpose of a multivibrator is to _______. - Answers - convert DC energy to square wave energy When transistors in a multivibrator is on, the output voltage is _________. - Answers - LOW Triggered multivibrator generate a square wave output - Answers - only when an external input is applied. In monostable multivibrators, the output of Q2 is fed back through the ________. - Answers - resistor to the input of Q1

Content preview

Att Week 6 Exam Questions With Correct
Answers | Latest New Update!!
Guaranteed A+ PASS
The transistor in a multivibrator are biased __________. - Answers - ✔✔so that they
are either in cutoff or saturation

How many transistors do multivibrators have? - Answers - ✔✔2

The purpose of a multivibrator is to _______. - Answers - ✔✔convert DC energy to
square wave energy

When transistors in a multivibrator is on, the output voltage is _________. - Answers -
✔✔LOW

Triggered multivibrator generate a square wave output - Answers - ✔✔only when an
external input is applied.

In monostable multivibrators, the output of Q2 is fed back through the ________. -
Answers - ✔✔resistor to the input of Q1

In multivibrator feedback circuits, how are the transistors connected? - Answers -
✔✔Q1 output to Q2 input and Q2 output to Q1 input

Multivibrator frequency is determined by ___________. - Answers - ✔✔the
components in the feedback circuit.

In an astable multivibrator, what determines which transistor turns ON when power is
first applied? - Answers - ✔✔The transistor that conducts first

In an astable multivibrator, with Q1 ON Q2 is turned on by ____________. - Answers -
✔✔C1 Charging

When Q2 turns ON, Q1 is turned OFF by ________. - Answers - ✔✔C2 Discharging

In this astable multivibrator, what component is the collector load resistor for Q2? -
Answers - ✔✔R4

In this astable multivibrator, what component is the base biasing resistor for Q1? -
Answers - ✔✔R3
