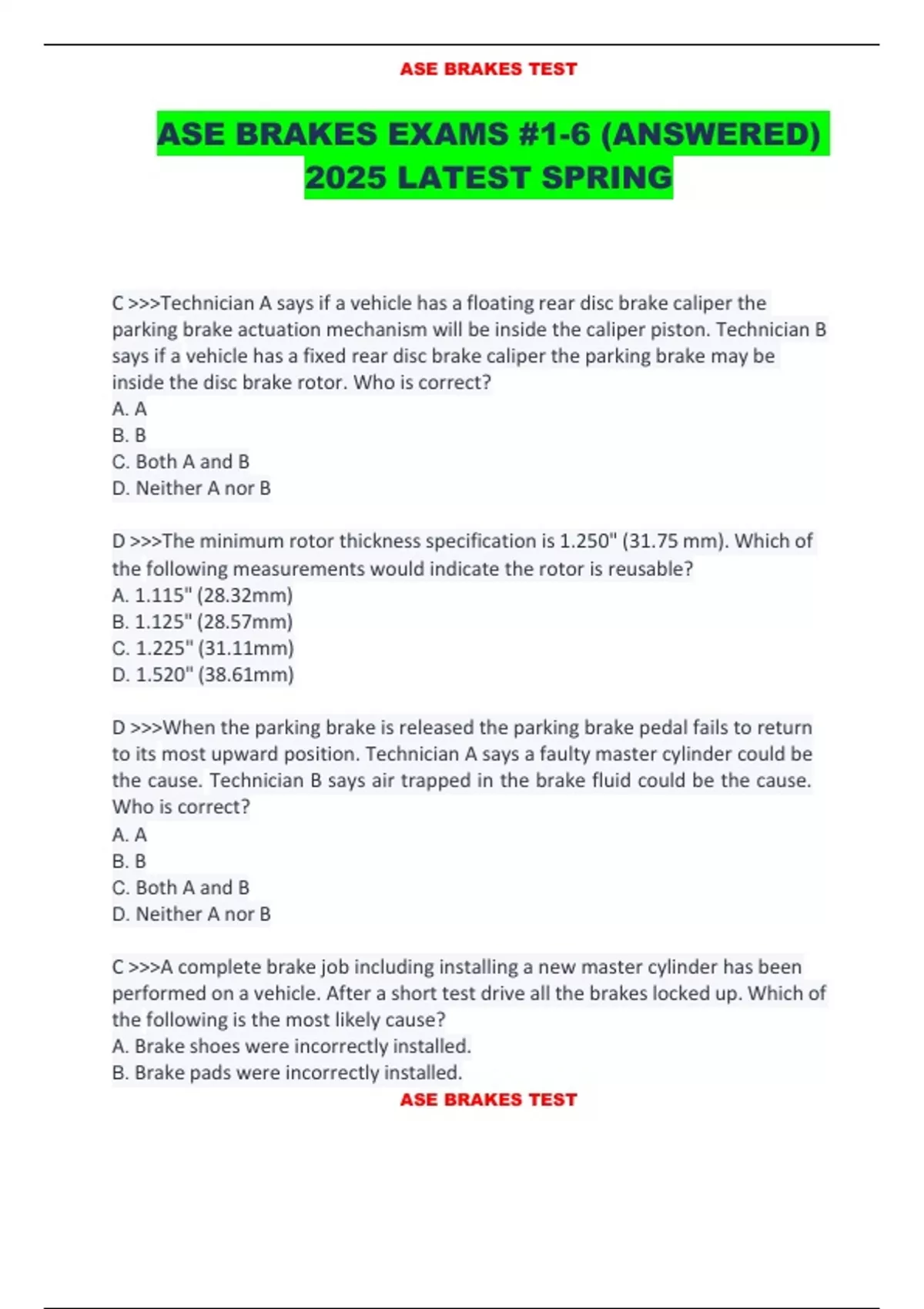

ASE BRAKES TEST
ASE BRAKES EXAMS #1-6 (ANSWERED)
2025 LATEST SPRING
C >>>Technician A says if a vehicle has a floating rear disc brake caliper the
parking brake actuation mechanism will be inside the caliper piston. Technician B
says if a vehicle has a fixed rear disc brake caliper the parking brake may be
inside the disc brake rotor. Who is correct?
A. A
B. B
C. Both A and B
D. Neither A nor B
D >>>The minimum rotor thickness specification is 1.250" (31.75 mm). Which of
the following measurements would indicate the rotor is reusable?
A. 1.115" (28.32mm)
B. 1.125" (28.57mm)
C. 1.225" (31.11mm)
D. 1.520" (38.61mm)
D >>>When the parking brake is released the parking brake pedal fails to return
to its most upward position. Technician A says a faulty master cylinder could be
the cause. Technician B says air trapped in the brake fluid could be the cause.
Who is correct?
A. A
B. B
C. Both A and B
D. Neither A nor B
C >>>A complete brake job including installing a new master cylinder has been
performed on a vehicle. After a short test drive all the brakes locked up. Which of
the following is the most likely cause?
A. Brake shoes were incorrectly installed.
B. Brake pads were incorrectly installed.
ASE BRAKES TEST
, ASE BRAKES TEST
C. The master cylinder was incorrectly installed.
D. The antilock braking system (ABS) sensors were not properly reset.
ASE BRAKES TEST
, ASE BRAKES TEST
D >>>When a customer attempts to apply the parking brake, the pedal travels its
full range of motion however the parking brakes do not apply. Technician A says a
faulty master cylinder could be the cause. Technician B says air trapped in the
brake fluid could be the cause. Who is correct?
A. A
B. B
C. Both A and B
D. Neither A nor B
C >>>Which of the following is true concerning a non-integral ABS system?
A. The master cylinder and booster are mounted separately.
B. The ABS controller and master cylinder are mounted together.
C. They can use a vacuum brake booster.
D. They use an electro-hydraulic pump as a booster.
D >>>The screw threads of the drum brake self adjuster should be lubricated with
which of the following?
A. Oil
B. Chassis grease
C. Lubriplate
D. Antiseize
A >>>The right front caliper is inoperative. All other brakes operate normally.
Technician A says that a collapsed brake hose could cause this. Technician B says
that a faulty master cylinder could cause this. Who is correct?
A. A only
B. B only
C. Both A and B
D. Neither A nor B
A >>>Tapered front roller bearings were replaced during a brake job. The vehicle
has come back into the shop with the wheel bearing welded to the spindle.
Which of the following is the most likely cause?
A. The bearing was overtightened.
B. The bearing clearance was left too loose.
C. The lug nuts were overtightened.
ASE BRAKES TEST
, ASE BRAKES TEST
D. The lug nuts were left loose.
B >>>Which of the following is most likely to use a single channel ABS system?
A. Front-wheel drive
B. Rear-wheel drive
C. Four-wheel drive
D. All-wheel drive
ASE BRAKES TEST
ASE BRAKES EXAMS #1-6 (ANSWERED)
2025 LATEST SPRING
C >>>Technician A says if a vehicle has a floating rear disc brake caliper the
parking brake actuation mechanism will be inside the caliper piston. Technician B
says if a vehicle has a fixed rear disc brake caliper the parking brake may be
inside the disc brake rotor. Who is correct?
A. A
B. B
C. Both A and B
D. Neither A nor B
D >>>The minimum rotor thickness specification is 1.250" (31.75 mm). Which of
the following measurements would indicate the rotor is reusable?
A. 1.115" (28.32mm)
B. 1.125" (28.57mm)
C. 1.225" (31.11mm)
D. 1.520" (38.61mm)
D >>>When the parking brake is released the parking brake pedal fails to return
to its most upward position. Technician A says a faulty master cylinder could be
the cause. Technician B says air trapped in the brake fluid could be the cause.
Who is correct?
A. A
B. B
C. Both A and B
D. Neither A nor B
C >>>A complete brake job including installing a new master cylinder has been
performed on a vehicle. After a short test drive all the brakes locked up. Which of
the following is the most likely cause?
A. Brake shoes were incorrectly installed.
B. Brake pads were incorrectly installed.
ASE BRAKES TEST
, ASE BRAKES TEST
C. The master cylinder was incorrectly installed.
D. The antilock braking system (ABS) sensors were not properly reset.
ASE BRAKES TEST
, ASE BRAKES TEST
D >>>When a customer attempts to apply the parking brake, the pedal travels its
full range of motion however the parking brakes do not apply. Technician A says a
faulty master cylinder could be the cause. Technician B says air trapped in the
brake fluid could be the cause. Who is correct?
A. A
B. B
C. Both A and B
D. Neither A nor B
C >>>Which of the following is true concerning a non-integral ABS system?
A. The master cylinder and booster are mounted separately.
B. The ABS controller and master cylinder are mounted together.
C. They can use a vacuum brake booster.
D. They use an electro-hydraulic pump as a booster.
D >>>The screw threads of the drum brake self adjuster should be lubricated with
which of the following?
A. Oil
B. Chassis grease
C. Lubriplate
D. Antiseize
A >>>The right front caliper is inoperative. All other brakes operate normally.
Technician A says that a collapsed brake hose could cause this. Technician B says
that a faulty master cylinder could cause this. Who is correct?
A. A only
B. B only
C. Both A and B
D. Neither A nor B
A >>>Tapered front roller bearings were replaced during a brake job. The vehicle
has come back into the shop with the wheel bearing welded to the spindle.
Which of the following is the most likely cause?
A. The bearing was overtightened.
B. The bearing clearance was left too loose.
C. The lug nuts were overtightened.
ASE BRAKES TEST
, ASE BRAKES TEST
D. The lug nuts were left loose.
B >>>Which of the following is most likely to use a single channel ABS system?
A. Front-wheel drive
B. Rear-wheel drive
C. Four-wheel drive
D. All-wheel drive
ASE BRAKES TEST
