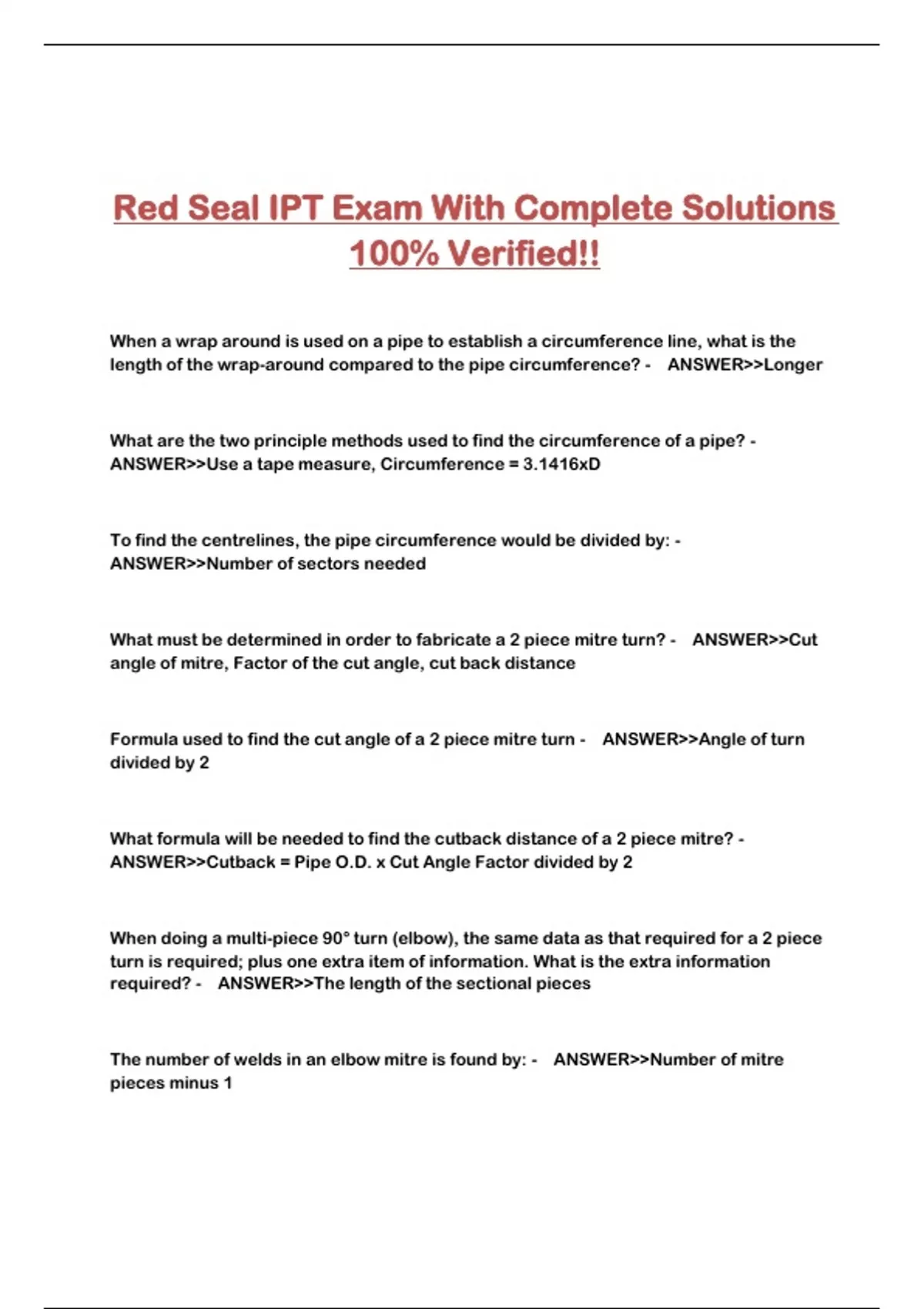

Red Seal IPT Exam With Complete Solutions
100% Verified!!
When a wrap around is used on a pipe to establish a circumference line, what is the
length of the wrap-around compared to the pipe circumference? - ANSWER>>Longer
What are the two principle methods used to find the circumference of a pipe? -
ANSWER>>Use a tape measure, Circumference = 3.1416xD
To find the centrelines, the pipe circumference would be divided by: -
ANSWER>>Number of sectors needed
What must be determined in order to fabricate a 2 piece mitre turn? - ANSWER>>Cut
angle of mitre, Factor of the cut angle, cut back distance
Formula used to find the cut angle of a 2 piece mitre turn - ANSWER>>Angle of turn
divided by 2
What formula will be needed to find the cutback distance of a 2 piece mitre? -
ANSWER>>Cutback = Pipe O.D. x Cut Angle Factor divided by 2
When doing a multi-piece 90° turn (elbow), the same data as that required for a 2 piece
turn is required; plus one extra item of information. What is the extra information
required? - ANSWER>>The length of the sectional pieces
The number of welds in an elbow mitre is found by: - ANSWER>>Number of mitre
pieces minus 1
,A 42" (1050mm) pipe could be correctly laid out using 8 division (ordinate lines) True or
False? - ANSWER>>False
When making a tee if the branch pipe is placed onto the main pipe header, it is known as
the Saddle-In-method. True or False? - ANSWER>>False
When laying out a Saddle-In-Tee, form two equal sized pipes, the side intersection
points formed on the branch are usually: - ANSWER>>Rounded out above the header
centreline 2 x the W.T.
A wrap around can be used to layout both the head and branch of a Tee on small
diameter pipe. True or False? - ANSWER>>True
The header cut out for a reducing Tee can be layed out by tacking the branch to the
header, then tracing the branch outline onto the header by using a: -
ANSWER>>Soapstone
The branch and header of a small diameter 45° lateral can be marked for cutting by
using a wrap around. True or False? - ANSWER>>True
What name is given to the cap on the pipe end which is cut, and welded from the same
pipe? - ANSWER>>Orange peel
When laying out and cutting a true Y, two identical pieces are layed out and cut for the
two branches. True or False? - ANSWER>>True
Template development for pipe layout is called: - ANSWER>>Parallel Line Development
Working on a template, one of the important things to remember is that the intersection
points on the template must be joined together with what? - ANSWER>>A smooth
curve
,When making a template of the opening in the header for a 45° unequal sized lateral the
"opening" distance on the template is equal to the curved distance of the opening taken
from the end view. True or False? - ANSWER>>True
When making a template for a Tee, the first consideration will be weather the branch will
be a Saddle On or a Saddle In. True or False? - ANSWER>>True
When something on a print cannot be fully shown because it is blocked from view by
another object, its outline is shown by the use of: - ANSWER>>Hidden Lines
True or False? >> Chilled Water Flow in an air conditioning print, and the Cold Water
symbol are the same, whereas All steel or metal products will all appear the same
because they would reflect the same cross hatching type when presented in section
view using section lines. True or False? - ANSWER>>False
When an elbow, tee, flange, or other fitting joint is shown on a double line print the joint
is shown by a large dot. True or False? - ANSWER>>False
Double line prints are normally used for clarity on sizes over 12" (300mm). True or
False? - ANSWER>>True
Line identification numbers are used to differentiate the different pipe runs in a system
or plant. The system of marking these lines is standard through all types of industry.
True or False? - ANSWER>>False
When a line branches off, the branch line will have the same identification number as the
main line. True or False? - ANSWER>>False
Angle Gate, Angle Globe all use the same symbol True or False? - ANSWER>>False
A note about one component that may be placed in a corner near the title block is called
a general note. True or False? - ANSWER>>False
, What does BBE stand for? - ANSWER>>Bevel Both Ends
What does BOF stand for? - ANSWER>>Bottom Of Face Of Flange
What does CV stand for? - ANSWER>>Control Valve
What does ELB stand for? - ANSWER>>Elbowlet
What does FS stand for? - ANSWER>>Far Side
What does HPT stand for? - ANSWER>>Hose Pipe Thread
What does PRV stand for? - ANSWER>>Pressure Reducing Valve
What does ST stand for? - ANSWER>>Steam Tracing
TOS stands for what? - ANSWER>>Top Of Steel
XXS stands for what? - ANSWER>>Double Extra Strong
A good and accurate method of obtaining a dimension is by measuring it with a scale or
tape directly off the print. True or False? - ANSWER>>False
One foot-inch scale, the ratio of 1:48 would translate to : - ANSWER>>1/4 inch to 1 foot
A flow diagram showing layout of equipment and flow of fluids is usually drawn in the
double line format. True or False? - ANSWER>>False
