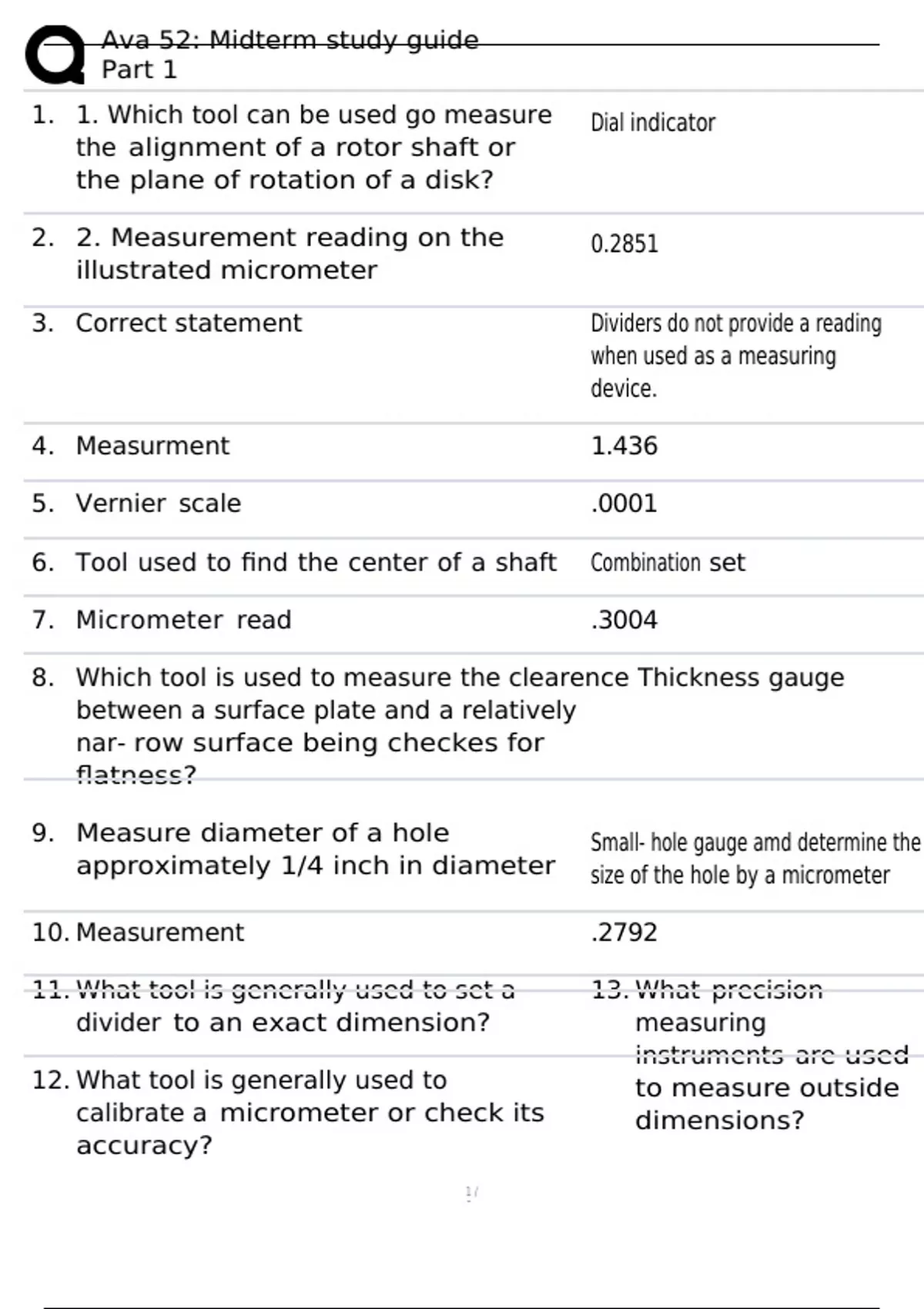

1. 1. Which tool can be used go measure Dial indicator
the alignment of a rotor shaft or
the plane of rotation of a disk?

2. 2. Measurement reading on the 0.2851
illustrated micrometer

3. Correct statement Dividers do not provide a reading
when used as a measuring
device.

4. Measurment 1.436

5. Vernier scale .0001

6. Tool used to find the center of a shaft Combination set

7. Micrometer read .3004

8. Which tool is used to measure the clearence Thickness gauge
between a surface plate and a relatively
nar- row surface being checkes for
flatness?

9. Measure diameter of a hole Small- hole gauge amd determine the
approximately 1/4 inch in diameter size of the hole by a micrometer

10. Measurement .2792

11. What tool is generally used to set a 13. What precision
divider to an exact dimension? measuring
instruments are used
12. What tool is generally used to to measure outside
calibrate a micrometer or check its dimensions?
accuracy?
1/
6

, Ava 52: Midterm study guide
Part 1
Machinist scale


Gauge block


Micrometer caliper
