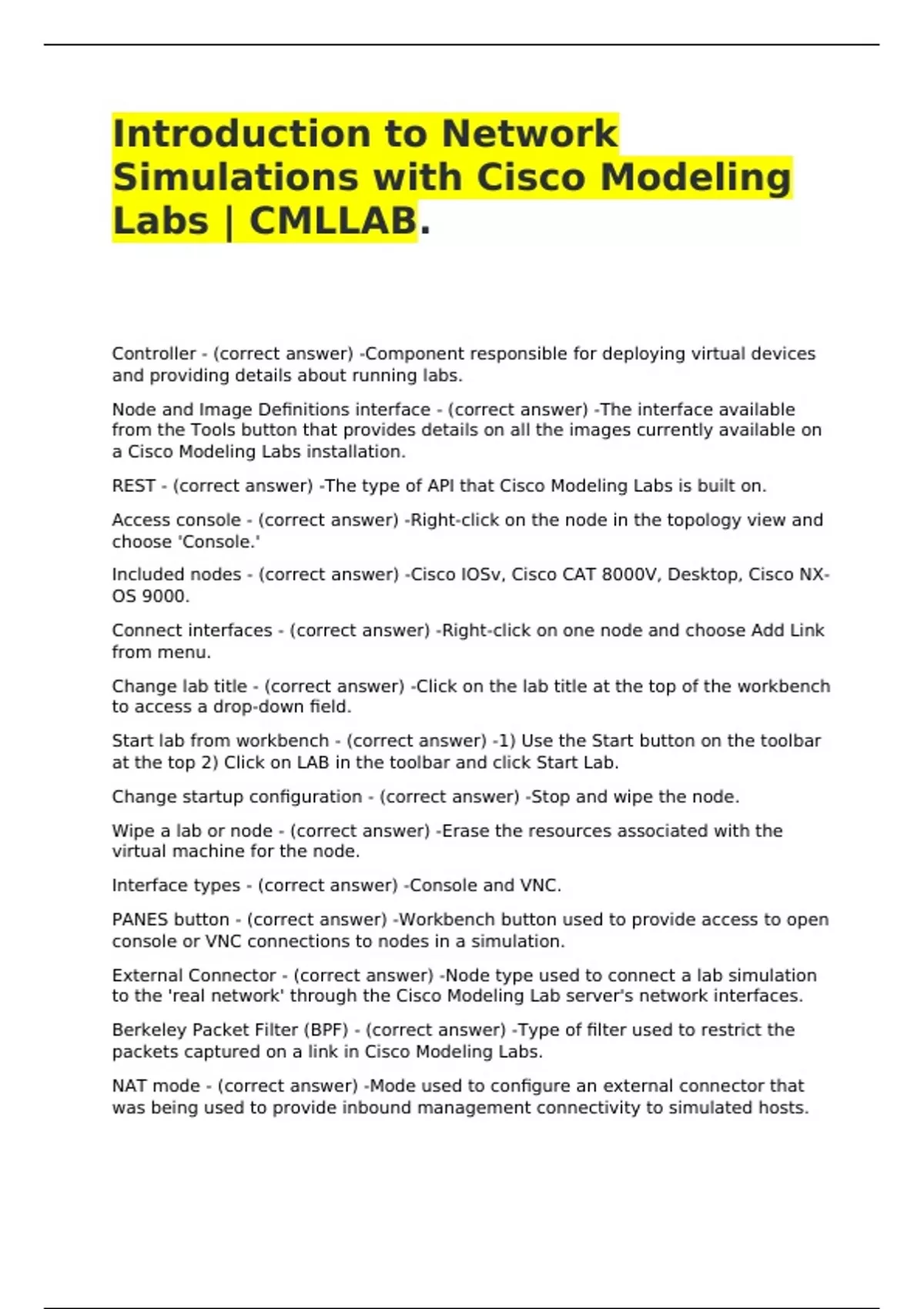

Introduction to Network
Simulations with Cisco Modeling
Labs | CMLLAB.
Controller - (correct answer) -Component responsible for deploying virtual devices
and providing details about running labs.
Node and Image Definitions interface - (correct answer) -The interface available
from the Tools button that provides details on all the images currently available on
a Cisco Modeling Labs installation.
REST - (correct answer) -The type of API that Cisco Modeling Labs is built on.
Access console - (correct answer) -Right-click on the node in the topology view and
choose 'Console.'
Included nodes - (correct answer) -Cisco IOSv, Cisco CAT 8000V, Desktop, Cisco NX-
OS 9000.
Connect interfaces - (correct answer) -Right-click on one node and choose Add Link
from menu.
Change lab title - (correct answer) -Click on the lab title at the top of the workbench
to access a drop-down field.
Start lab from workbench - (correct answer) -1) Use the Start button on the toolbar
at the top 2) Click on LAB in the toolbar and click Start Lab.
Change startup configuration - (correct answer) -Stop and wipe the node.
Wipe a lab or node - (correct answer) -Erase the resources associated with the
virtual machine for the node.
Interface types - (correct answer) -Console and VNC.
PANES button - (correct answer) -Workbench button used to provide access to open
console or VNC connections to nodes in a simulation.
External Connector - (correct answer) -Node type used to connect a lab simulation
to the 'real network' through the Cisco Modeling Lab server's network interfaces.
Berkeley Packet Filter (BPF) - (correct answer) -Type of filter used to restrict the
packets captured on a link in Cisco Modeling Labs.
NAT mode - (correct answer) -Mode used to configure an external connector that
was being used to provide inbound management connectivity to simulated hosts.
Simulations with Cisco Modeling
Labs | CMLLAB.
Controller - (correct answer) -Component responsible for deploying virtual devices
and providing details about running labs.
Node and Image Definitions interface - (correct answer) -The interface available
from the Tools button that provides details on all the images currently available on
a Cisco Modeling Labs installation.
REST - (correct answer) -The type of API that Cisco Modeling Labs is built on.
Access console - (correct answer) -Right-click on the node in the topology view and
choose 'Console.'
Included nodes - (correct answer) -Cisco IOSv, Cisco CAT 8000V, Desktop, Cisco NX-
OS 9000.
Connect interfaces - (correct answer) -Right-click on one node and choose Add Link
from menu.
Change lab title - (correct answer) -Click on the lab title at the top of the workbench
to access a drop-down field.
Start lab from workbench - (correct answer) -1) Use the Start button on the toolbar
at the top 2) Click on LAB in the toolbar and click Start Lab.
Change startup configuration - (correct answer) -Stop and wipe the node.
Wipe a lab or node - (correct answer) -Erase the resources associated with the
virtual machine for the node.
Interface types - (correct answer) -Console and VNC.
PANES button - (correct answer) -Workbench button used to provide access to open
console or VNC connections to nodes in a simulation.
External Connector - (correct answer) -Node type used to connect a lab simulation
to the 'real network' through the Cisco Modeling Lab server's network interfaces.
Berkeley Packet Filter (BPF) - (correct answer) -Type of filter used to restrict the
packets captured on a link in Cisco Modeling Labs.
NAT mode - (correct answer) -Mode used to configure an external connector that
was being used to provide inbound management connectivity to simulated hosts.
