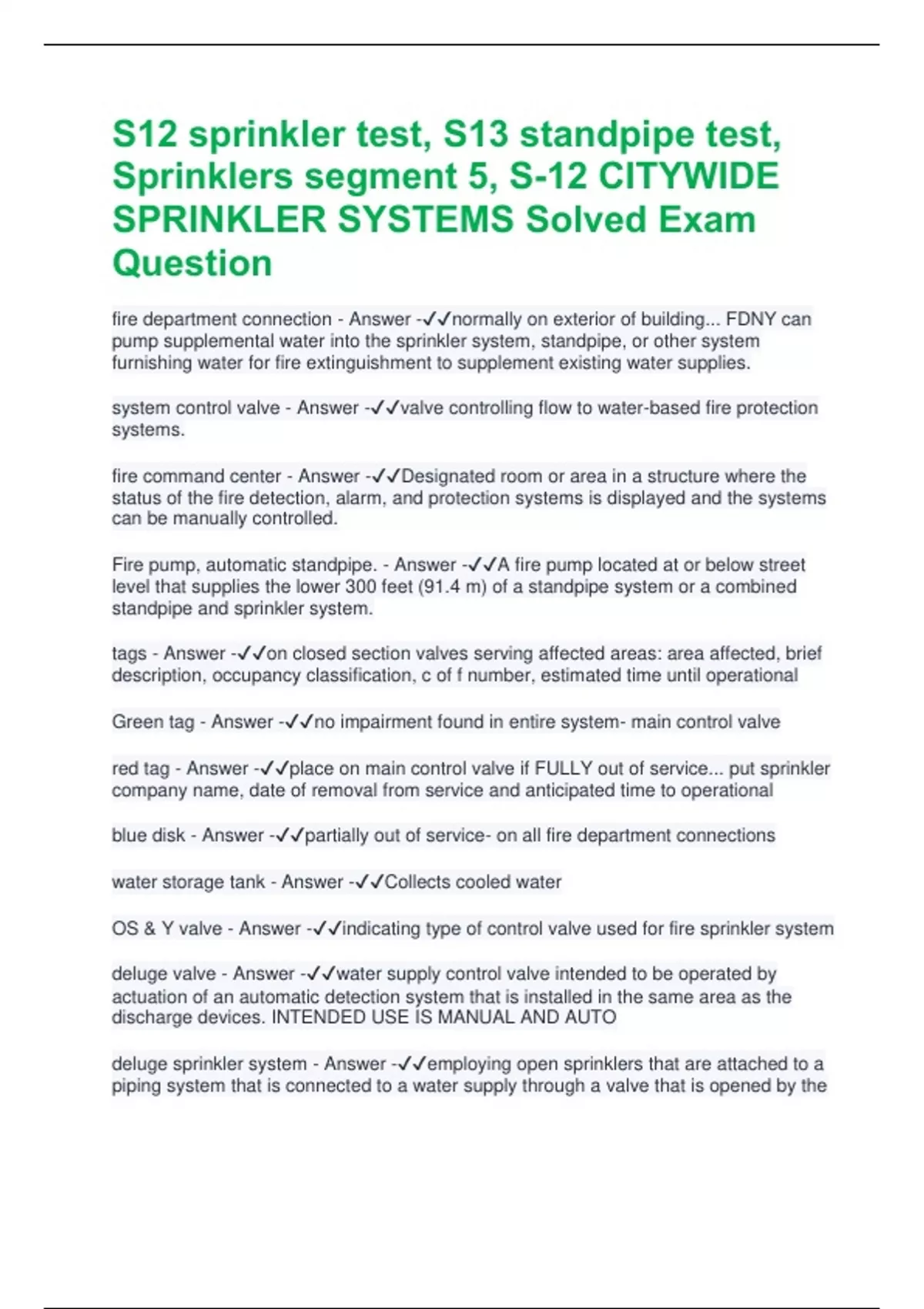

S12 sprinkler test, S13 standpipe test,
Sprinklers segment 5, S-12 CITYWIDE
SPRINKLER SYSTEMS Solved Exam
Question
fire department connection - Answer -✔✔normally on exterior of building... FDNY can
pump supplemental water into the sprinkler system, standpipe, or other system
furnishing water for fire extinguishment to supplement existing water supplies.
system control valve - Answer -✔✔valve controlling flow to water-based fire protection
systems.
fire command center - Answer -✔✔Designated room or area in a structure where the
status of the fire detection, alarm, and protection systems is displayed and the systems
can be manually controlled.
Fire pump, automatic standpipe. - Answer -✔✔A fire pump located at or below street
level that supplies the lower 300 feet (91.4 m) of a standpipe system or a combined
standpipe and sprinkler system.
tags - Answer -✔✔on closed section valves serving affected areas: area affected, brief
description, occupancy classification, c of f number, estimated time until operational
Green tag - Answer -✔✔no impairment found in entire system- main control valve
red tag - Answer -✔✔place on main control valve if FULLY out of service... put sprinkler
company name, date of removal from service and anticipated time to operational
blue disk - Answer -✔✔partially out of service- on all fire department connections
water storage tank - Answer -✔✔Collects cooled water
OS & Y valve - Answer -✔✔indicating type of control valve used for fire sprinkler system
deluge valve - Answer -✔✔water supply control valve intended to be operated by
actuation of an automatic detection system that is installed in the same area as the
discharge devices. INTENDED USE IS MANUAL AND AUTO
deluge sprinkler system - Answer -✔✔employing open sprinklers that are attached to a
piping system that is connected to a water supply through a valve that is opened by the
,operation of a detection system installed in the same areas as the sprinklers. WHEN IT
OPENS, water flows into the piping system and discharges from all sprinklers attached.
Early suppresion fast response sprinklers - Answer -✔✔fast response sprinkler that is
listed for its capability to provide fire suppression of specific high challenge fire hazards
extra large orifice sprinklers - Answer -✔✔= or > 1 inch less pressure to achieve a given
discharge density
extended coverage sprinkler - Answer -✔✔400 max square feet discharge 20 foot by 20
foot spacing between sprinklers
fire pump - Answer -✔✔a provider of liquid flow and pressure dedicated to fire
protection. A fire pump is a part of a fire sprinklers system water supply and can be
powered by electric, diesel or steam. connected to public water source or tank. provides
higher pressure to sprinkler system
Glass bulb sprinkler - Answer -✔✔operated by heat breaking a glass bulb filled with a
non freezing liquid with diameters that vary form 3 mm for quick response to 5 mm for
standard response
hose valve - Answer -✔✔valve to additional hose connection
hydraulic placard - Answer -✔✔sign attached to a hydraulically calculated sprinkler
system indicating the design density, required gallons per minute and pressure for the
system to operate properly
hydraulically calculated systems - Answer -✔✔method of sizing auto sprinkler piping
using a prescribed amount of water to be distributed over a specific area.
impairment coordinator - Answer -✔✔in charge of safety during out of service systems
intermediate level sprinkler - Answer -✔✔sprinkler equipped with integral shields to
protect the operating elemtn form discharge from sprinklers installed at higher
elevations
large orifice sprinkler - Answer -✔✔sprinkler head with orifice size equal or greater than
3/4 and less than 1 inch
listed device - Answer -✔✔A fire protection component that has been tested to perform
under parameters specified for its use by a nationally recognized testing agency.
Underwriter's Laboratory (UL) and Factory Mutual (FM) are the two most common.
,Master Pressure Reducing Valve - Answer -✔✔A pressure reducing valve installed to
regulate pressures in an entire fire protection system and/or standpipe system zone.
Main Drain - Answer -✔✔The primary drain connection located on the system riser and
also utilized as a flow test connection.
Microbiologically Influenced Corrosion (MIC) - Answer -✔✔Corrosion caused by the
presence of microbes in the water supply that over time attack the interior of metallic
piping and cause leaks, pitting, and blockages.
Old-Style/Conventional Sprinkler - Answer -✔✔A sprinkler that directs 40% to 60% of
the water initially in a downward direction and is designed to be installed with the
deflector in either the upright or pendent position.
Pendent Sprinkler - Answer -✔✔A sprinkler designed to be installed in such a way that
the water stream is directed downward against the deflector.
Pintle Screws - Answer -✔✔A visual indicating device required for sprinklers
manufactured prior to 1999 identifying small orifice sprinklers and large orifice sprinklers
where orifice size is different than the nominal thread size of the sprinkler head.
Pipe Schedule Systems - Answer -✔✔A method of sizing piping based upon the
number of sprinkler heads and the occupancy of the protected area.
Preaction Sprinkler System - Answer -✔✔A sprinkler system employing automatic
sprinklers that are attached to a piping system that contains air that may or may not be
under pressure, with a supplemental detection system installed in the same areas as
the sprinklers.
Pressure Control Valve - Answer -✔✔A pilot operated pressure reducing valve that may
be used with a fire or booster pump designed for the purpose of preventing the
incoming water supply pressure from dropping below a set pressure.
Pressure-Reducing Valve - Answer -✔✔A valve designed for the purpose of reducing
the downstream water pressure under both flowing (residual) and nonflowing (static)
conditions.
Pressure Relief Valve - Answer -✔✔A valve designed for the purpose of releasing
excess air or water pressure from the Fire Protection Piping System.
Pressure Tank - Answer -✔✔A tank using air pressure to supplying water for water-
based fire protection systems. Tank contents to be maintained at one third air to two
thirds water.
, Quick Response Sprinkler Head - Answer -✔✔A sprinkler having a fusible link with a
response time index (RTI) of 50 or less.
Recessed Sprinkler - Answer -✔✔A sprinkler in which all or part of the body, other than
the shank thread, is mounted above the ceiling.
Residential Sprinkler - Answer -✔✔A type of fast response sprinkler that has been
specifically tested to enhance survivability in the room of fire origin and listed for use in
dwelling units.
Response Time Index (RTI) - Answer -✔✔A measurement of the thermal sensitivity of a
sprinkler head expressed in (meters-seconds) 1/2.
Supervisory signal - Answer -✔✔A signal indicating the need for action or the use of
such device in connection with the supervision of fire alarm systems or the maintenance
features of related systems.
Small orifice sprinklers - Answer -✔✔A sprinkler head with and orifice size smaller than
1⁄2"
Solder Link Sprinkler - Answer -✔✔A sprinkler operated by the melting of a metal link,
they vary in size and configuration for quick response and standard response sprinklers.
The smaller the size of the link, the faster the sprinkler operates.
Spray Sprinkler - Answer -✔✔A type of sprinkler listed for its capability to provide fire
control for a wide range of fire hazards. The most commonly used sprinkler since 1953.
Standard Response Sprinkler Head - Answer -✔✔A sprinkler having a fusible link with a
response time index (RTI) of 80 or more.
Supervisory signal-initiating device - Answer -✔✔An initiating device, such as a valve
supervisory switch,that triggers a supervisory signal.
Testing - Answer -✔✔A procedure used to determine the status of a system as intended
by conducting periodic physical checks on water based fire protection systems such as
waterflow tests, fire pump tests, alarm tests, and trip tests of dry pipe, deluge, or
preaction valves. These tests follow up on the original acceptance test at intervals
specified in the appropriate chapter of NFPA #25, 2002 edition.
Upright Sprinkler - Answer -✔✔A sprinkler designed to be installed in such a way that
the water spray is directed upwards against the deflector.
