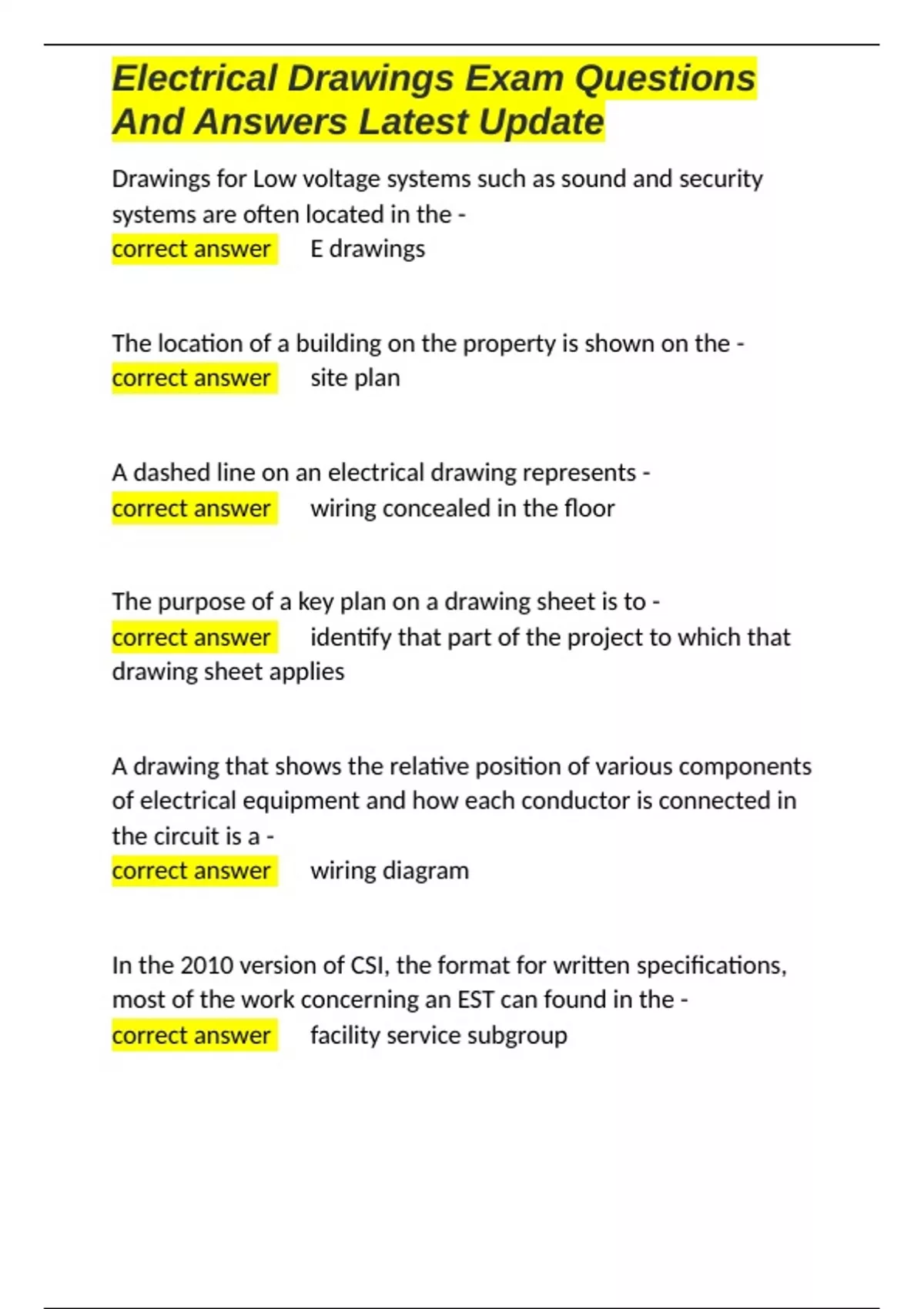

Electrical Drawings Exam Questions
And Answers Latest Update
Drawings for Low voltage systems such as sound and security
systems are often located in the -
correct answer ✅E drawings
The location of a building on the property is shown on the -
correct answer ✅site plan
A dashed line on an electrical drawing represents -
correct answer ✅wiring concealed in the floor
The purpose of a key plan on a drawing sheet is to -
correct answer ✅identify that part of the project to which that
drawing sheet applies
A drawing that shows the relative position of various components
of electrical equipment and how each conductor is connected in
the circuit is a -
correct answer ✅wiring diagram
In the 2010 version of CSI, the format for written specifications,
most of the work concerning an EST can found in the -
correct answer ✅facility service subgroup
, Electrical Drawings Exam Questions
And Answers Latest Update
When construction is complete, the set of drawings that represents
the final installed configuration is called the -
correct answer ✅as-built drawings
In the 2010 version of CSI, the format for written specifications,
communications systems are covered under division -
correct answer ✅division 27
The standard sheet dimension for a D-size drawing is -
correct answer ✅24" x 36"
Mechanical drawings, identified as _________________, include
the heating, ventilating, air conditioning (HVAC), sprinkler,
instrumentation, and plumbing system drawings. -
correct answer ✅M or ME drawings
A ___________ is a cutaway view that allows the viewer to see the
inside of a structure -
correct answer ✅sectional view
In general, the title block of an electrical drawing should contain
the -
correct answer ✅scale(s)
And Answers Latest Update
Drawings for Low voltage systems such as sound and security
systems are often located in the -
correct answer ✅E drawings
The location of a building on the property is shown on the -
correct answer ✅site plan
A dashed line on an electrical drawing represents -
correct answer ✅wiring concealed in the floor
The purpose of a key plan on a drawing sheet is to -
correct answer ✅identify that part of the project to which that
drawing sheet applies
A drawing that shows the relative position of various components
of electrical equipment and how each conductor is connected in
the circuit is a -
correct answer ✅wiring diagram
In the 2010 version of CSI, the format for written specifications,
most of the work concerning an EST can found in the -
correct answer ✅facility service subgroup
, Electrical Drawings Exam Questions
And Answers Latest Update
When construction is complete, the set of drawings that represents
the final installed configuration is called the -
correct answer ✅as-built drawings
In the 2010 version of CSI, the format for written specifications,
communications systems are covered under division -
correct answer ✅division 27
The standard sheet dimension for a D-size drawing is -
correct answer ✅24" x 36"
Mechanical drawings, identified as _________________, include
the heating, ventilating, air conditioning (HVAC), sprinkler,
instrumentation, and plumbing system drawings. -
correct answer ✅M or ME drawings
A ___________ is a cutaway view that allows the viewer to see the
inside of a structure -
correct answer ✅sectional view
In general, the title block of an electrical drawing should contain
the -
correct answer ✅scale(s)
