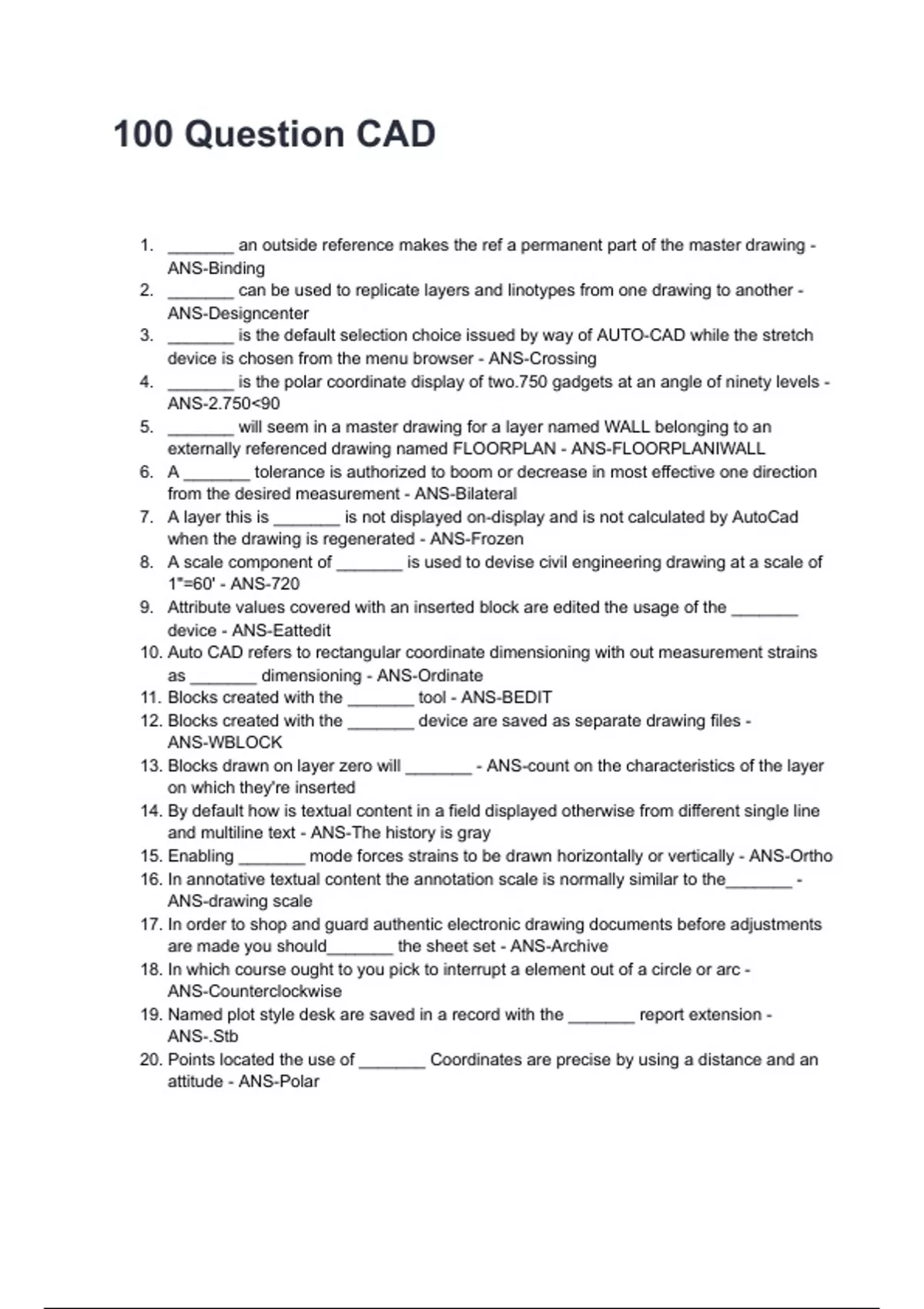

100 Question CAD
1. _______ an outside reference makes the ref a permanent part of the master drawing -
ANS-Binding
2. _______ can be used to replicate layers and linotypes from one drawing to another -
ANS-Designcenter
3. _______ is the default selection choice issued by way of AUTO-CAD while the stretch
device is chosen from the menu browser - ANS-Crossing
4. _______ is the polar coordinate display of two.750 gadgets at an angle of ninety levels -
ANS-2.750<90
5. _______ will seem in a master drawing for a layer named WALL belonging to an
externally referenced drawing named FLOORPLAN - ANS-FLOORPLANIWALL
6. A _______ tolerance is authorized to boom or decrease in most effective one direction
from the desired measurement - ANS-Bilateral
7. A layer this is _______ is not displayed on-display and is not calculated by AutoCad
when the drawing is regenerated - ANS-Frozen
8. A scale component of _______ is used to devise civil engineering drawing at a scale of
1"=60' - ANS-720
9. Attribute values covered with an inserted block are edited the usage of the _______
device - ANS-Eattedit
10. Auto CAD refers to rectangular coordinate dimensioning with out measurement strains
as _______ dimensioning - ANS-Ordinate
11. Blocks created with the _______ tool - ANS-BEDIT
12. Blocks created with the _______ device are saved as separate drawing files -
ANS-WBLOCK
13. Blocks drawn on layer zero will _______ - ANS-count on the characteristics of the layer
on which they're inserted
14. By default how is textual content in a field displayed otherwise from different single line
and multiline text - ANS-The history is gray
15. Enabling _______ mode forces strains to be drawn horizontally or vertically - ANS-Ortho
16. In annotative textual content the annotation scale is normally similar to the_______ -
ANS-drawing scale
17. In order to shop and guard authentic electronic drawing documents before adjustments
are made you should_______ the sheet set - ANS-Archive
18. In which course ought to you pick to interrupt a element out of a circle or arc -
ANS-Counterclockwise
19. Named plot style desk are saved in a record with the _______ report extension -
ANS-.Stb
20. Points located the use of _______ Coordinates are precise by using a distance and an
attitude - ANS-Polar
