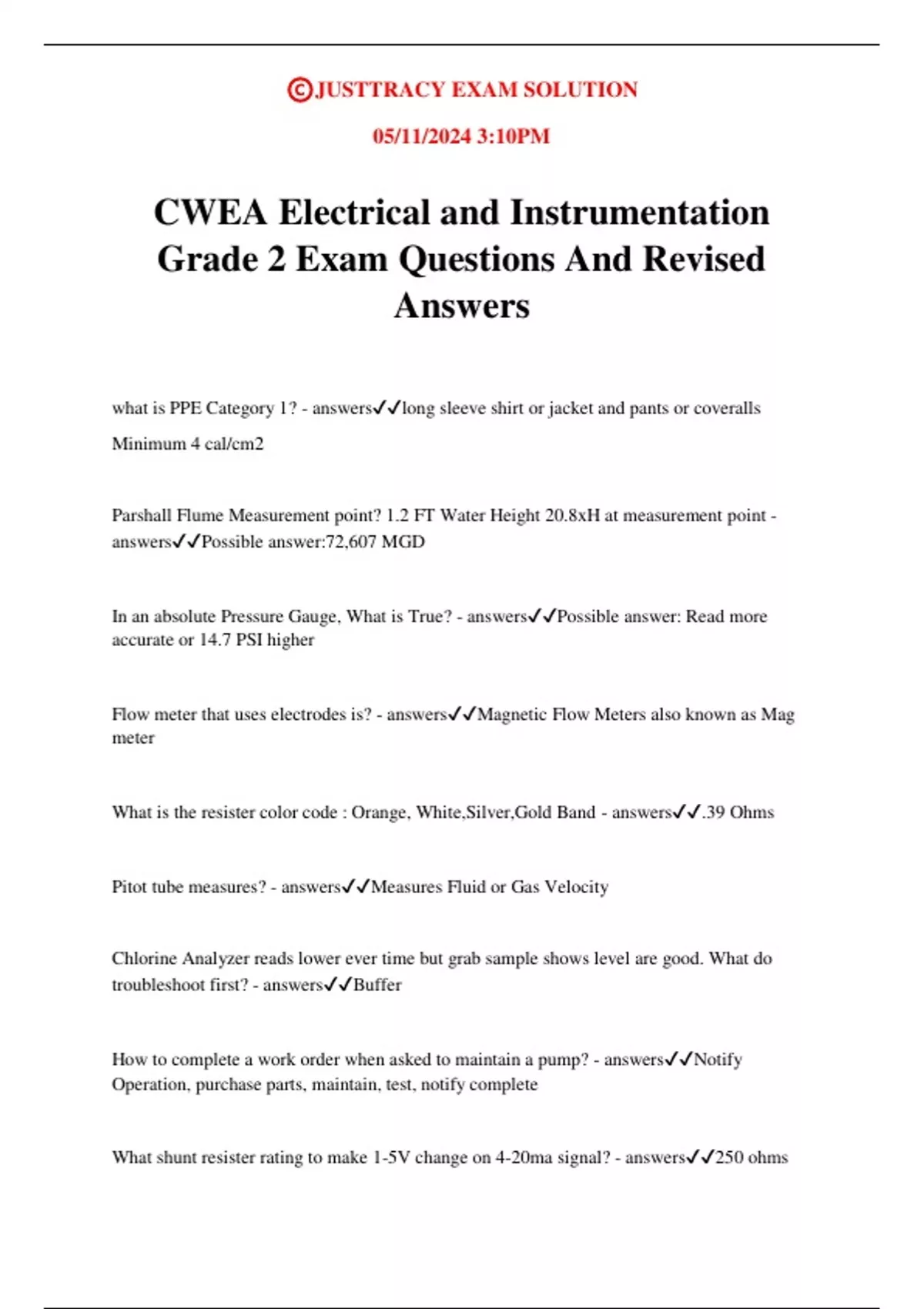

CWEA Electrical and Instrumentation
Grade 2 Exam Questions And Revised
Answers
what is PPE Category 1? - answers✔✔long sleeve shirt or jacket and pants or coveralls
Minimum 4 cal/cm2
Parshall Flume Measurement point? 1.2 FT Water Height 20.8xH at measurement point -
answers✔✔Possible answer:72,607 MGD
In an absolute Pressure Gauge, What is True? - answers✔✔Possible answer: Read more
accurate or 14.7 PSI higher
Flow meter that uses electrodes is? - answers✔✔Magnetic Flow Meters also known as Mag
meter
What is the resister color code : Orange, White,Silver,Gold Band - answers✔✔.39 Ohms
Pitot tube measures? - answers✔✔Measures Fluid or Gas Velocity
Chlorine Analyzer reads lower ever time but grab sample shows level are good. What do
troubleshoot first? - answers✔✔Buffer
How to complete a work order when asked to maintain a pump? - answers✔✔Notify
Operation, purchase parts, maintain, test, notify complete
What shunt resister rating to make 1-5V change on 4-20ma signal? - answers✔✔250 ohms
, ©JUSTTRACY EXAM SOLUTION
05/11/2024 3:10PM
HMI Screen down at the pump station, what to do? - answers✔✔Ask operator to monitor
while you troubleshoot and try to fix
Where does the fluid enter in a Rotameter? - answers✔✔Bottom
RPM on 4 pole 60 Hz motor - answers✔✔1800 RPM
For every 10 Celsius change in operating temp. What happen to motor wire insulation? -
answers✔✔Degrades 50%
What is it called when teaching someone Electrical Task Training? - answers✔✔Safety Task
Training
Personnel injured when working around machines/equipment depending what they do. Based
on this: What two classification? - answers✔✔Authorized-Affected
Resistors wired in parallel on battery 5 ohms, 10 ohms, and 20 ohms.
what must be the voltage to force 2.4 amp ? - answers✔✔6.84 V
Best way to test someone after training them? - answers✔✔Have them teach others or have
them perform the task under supervision
What is amperage 1000 Watts pulled through 12.5 ohms? - answers✔✔8.9 amps
What is one way to prolong life of vertical shaft well motor? - answers✔✔Properly lubricate
and make sure fail seal is hooked up
Grounding analog signal both end of wire or one end only? - answers✔✔Ground only one
end of wire. This also how you avoid ground loop
