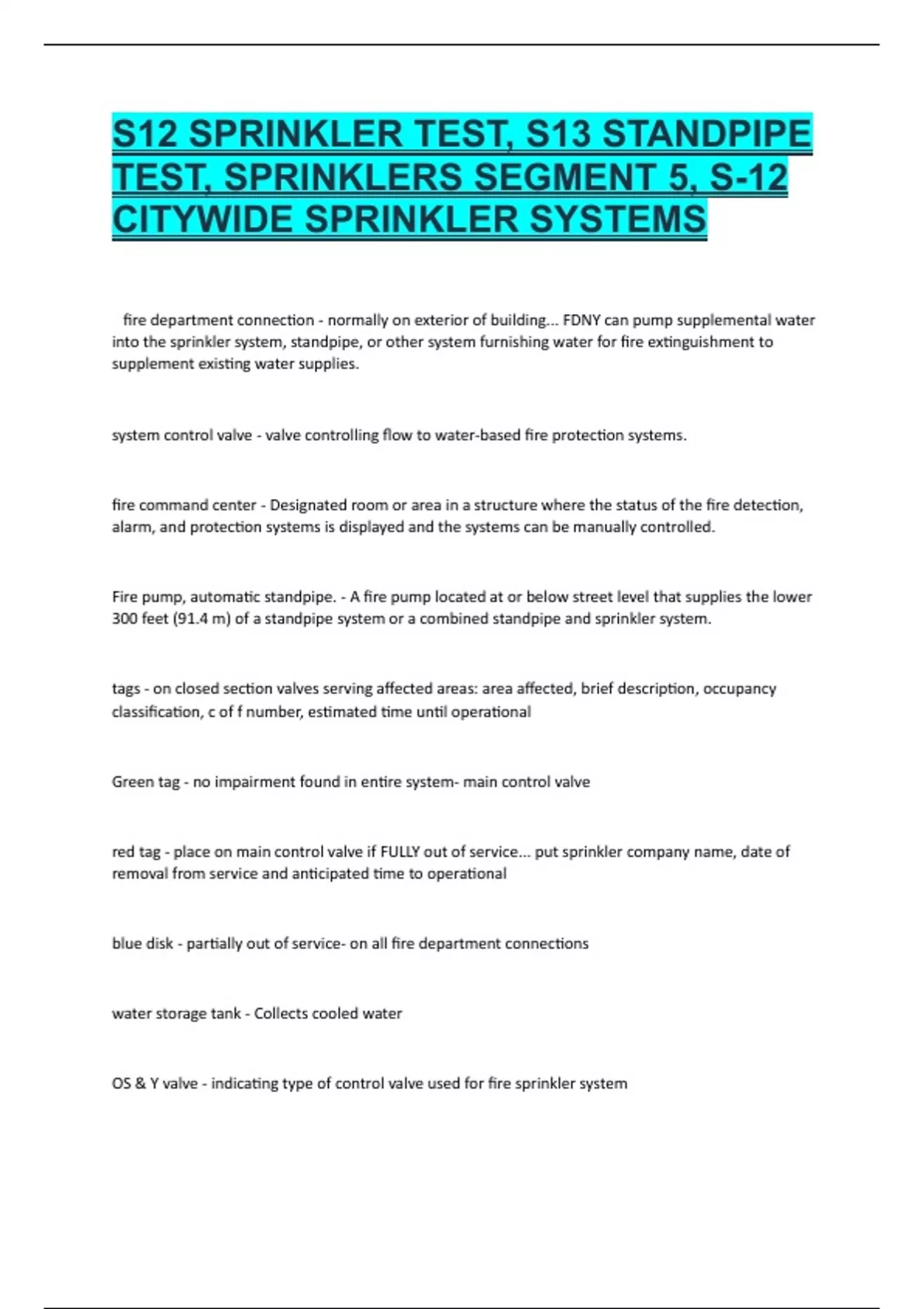

S12 SPRINKLER TEST, S13 STANDPIPE
TEST, SPRINKLERS SEGMENT 5, S-12
CITYWIDE SPRINKLER SYSTEMS
o fire department connection - normally on exterior of building... FDNY can pump supplemental water
into the sprinkler system, standpipe, or other system furnishing water for fire extinguishment to
supplement existing water supplies.
system control valve - valve controlling flow to water-based fire protection systems.
fire command center - Designated room or area in a structure where the status of the fire detection,
alarm, and protection systems is displayed and the systems can be manually controlled.
Fire pump, automatic standpipe. - A fire pump located at or below street level that supplies the lower
300 feet (91.4 m) of a standpipe system or a combined standpipe and sprinkler system.
tags - on closed section valves serving affected areas: area affected, brief description, occupancy
classification, c of f number, estimated time until operational
Green tag - no impairment found in entire system- main control valve
red tag - place on main control valve if FULLY out of service... put sprinkler company name, date of
removal from service and anticipated time to operational
blue disk - partially out of service- on all fire department connections
water storage tank - Collects cooled water
OS & Y valve - indicating type of control valve used for fire sprinkler system
,deluge valve - water supply control valve intended to be operated by actuation of an automatic
detection system that is installed in the same area as the discharge devices. INTENDED USE IS MANUAL
AND AUTO
deluge sprinkler system - employing open sprinklers that are attached to a piping system that is
connected to a water supply through a valve that is opened by the operation of a detection system
installed in the same areas as the sprinklers. WHEN IT OPENS, water flows into the piping system and
discharges from all sprinklers attached.
Early suppresion fast response sprinklers - fast response sprinkler that is listed for its capability to
provide fire suppression of specific high challenge fire hazards
extra large orifice sprinklers - = or > 1 inch less pressure to achieve a given discharge density
extended coverage sprinkler - 400 max square feet discharge 20 foot by 20 foot spacing between
sprinklers
fire pump - a provider of liquid flow and pressure dedicated to fire protection. A fire pump is a part of a
fire sprinklers system water supply and can be powered by electric, diesel or steam. connected to public
water source or tank. provides higher pressure to sprinkler system
Glass bulb sprinkler - operated by heat breaking a glass bulb filled with a non freezing liquid with
diameters that vary form 3 mm for quick response to 5 mm for standard response
hose valve - valve to additional hose connection
hydraulic placard - sign attached to a hydraulically calculated sprinkler system indicating the design
density, required gallons per minute and pressure for the system to operate properly
hydraulically calculated systems - method of sizing auto sprinkler piping using a prescribed amount of
water to be distributed over a specific area.
,impairment coordinator - in charge of safety during out of service systems
intermediate level sprinkler - sprinkler equipped with integral shields to protect the operating elemtn
form discharge from sprinklers installed at higher elevations
large orifice sprinkler - sprinkler head with orifice size equal or greater than 3/4 and less than 1 inch
listed device - A fire protection component that has been tested to perform under parameters specified
for its use by a nationally recognized testing agency. Underwriter's Laboratory (UL) and Factory Mutual
(FM) are the two most common.
Master Pressure Reducing Valve - A pressure reducing valve installed to regulate pressures in an entire
fire protection system and/or standpipe system zone.
Main Drain - The primary drain connection located on the system riser and also utilized as a flow test
connection.
Microbiologically Influenced Corrosion (MIC) - Corrosion caused by the presence of microbes in the
water supply that over time attack the interior of metallic piping and cause leaks, pitting, and blockages.
Old-Style/Conventional Sprinkler - A sprinkler that directs 40% to 60% of the water initially in a
downward direction and is designed to be installed with the deflector in either the upright or pendent
position.
Pendent Sprinkler - A sprinkler designed to be installed in such a way that the water stream is directed
downward against the deflector.
Pintle Screws - A visual indicating device required for sprinklers manufactured prior to 1999 identifying
small orifice sprinklers and large orifice sprinklers where orifice size is different than the nominal thread
size of the sprinkler head.
Pipe Schedule Systems - A method of sizing piping based upon the number of sprinkler heads and the
occupancy of the protected area.
, Preaction Sprinkler System - A sprinkler system employing automatic sprinklers that are attached to a
piping system that contains air that may or may not be under pressure, with a supplemental detection
system installed in the same areas as the sprinklers.
Pressure oControl oValve o- oA opilot ooperated opressure oreducing ovalve othat omay obe oused owith oa ofire
oor obooster opump odesigned ofor othe opurpose oof opreventing othe oincoming owater osupply opressure
ofrom odropping obelow oa oset opressure.
Pressure-Reducing oValve o- oA ovalve odesigned ofor othe opurpose oof oreducing othe odownstream owater
opressure ounder oboth oflowing o(residual) oand ononflowing o(static) oconditions.
Pressure oRelief oValve o- oA ovalve odesigned ofor othe opurpose oof oreleasing oexcess oair oor owater opressure
ofrom othe oFire oProtection oPiping oSystem.
Pressure oTank o- oA otank ousing oair opressure oto osupplying owater ofor owater-based ofire oprotection
osystems. oTank ocontents oto obe omaintained oat oone othird oair oto otwo othirds owater.
Quick oResponse oSprinkler oHead o- oA osprinkler ohaving oa ofusible olink owith oa oresponse otime oindex
o(RTI) oof o50 oor oless.
Recessed oSprinkler o- oA osprinkler oin owhich oall oor opart oof othe obody, oother othan othe oshank othread, ois
omounted oabove othe oceiling.
Residential oSprinkler o- oA otype oof ofast oresponse osprinkler othat ohas obeen ospecifically otested oto
oenhance osurvivability oin othe oroom oof ofire oorigin oand olisted ofor ouse oin odwelling ounits.
Response oTime oIndex o(RTI) o- oA omeasurement oof othe othermal osensitivity oof oa osprinkler ohead
oexpressed oin o(meters-seconds) o1/2.
