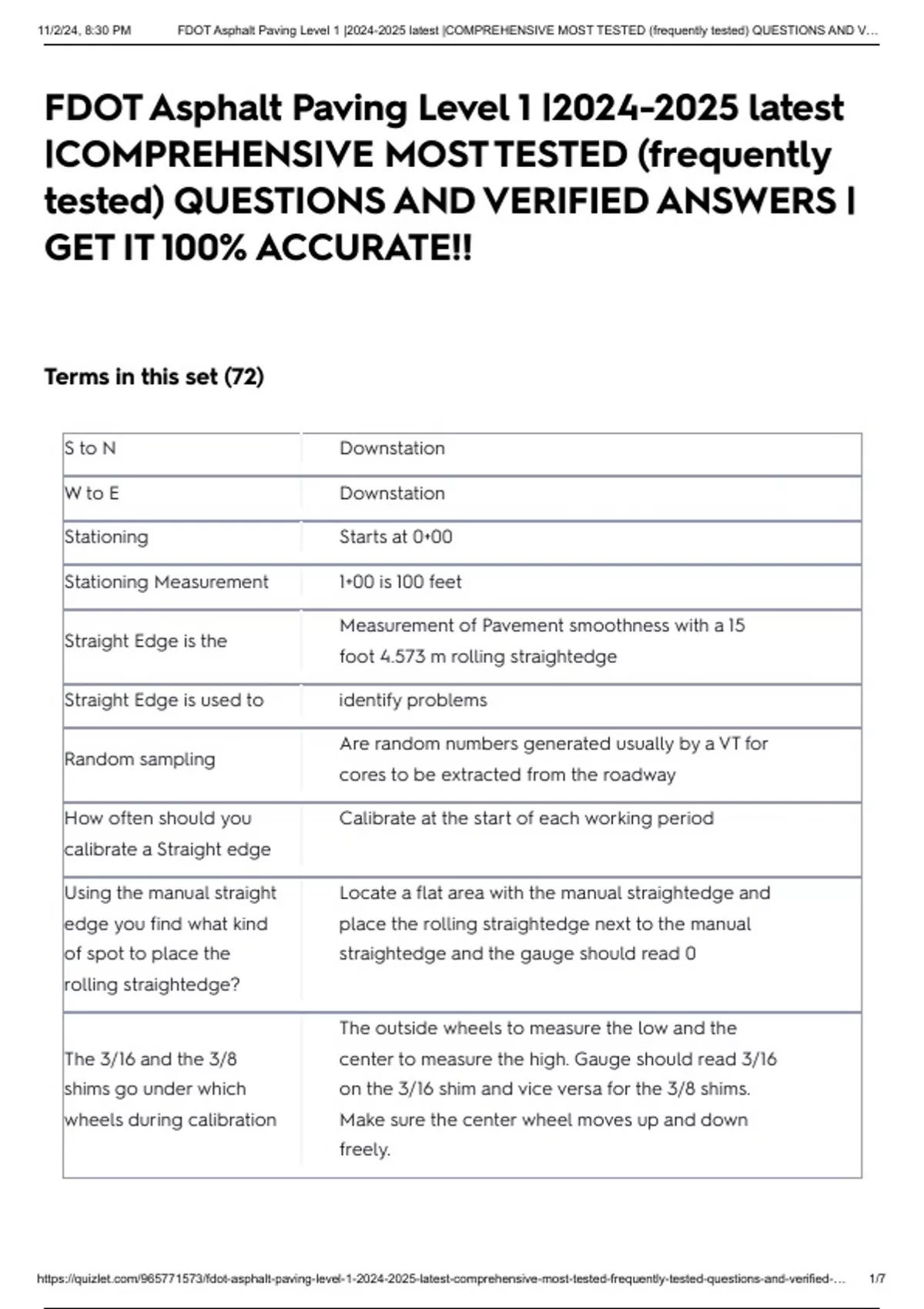

FDOT Asphalt Paving Level 1 |2024-2025 latest
|COMPREHENSIVE MOST TESTED (frequently
tested) QUESTIONS AND VERIFIED ANSWERS |
GET IT 100% ACCURATE!!
Terms in this set (72)
S to N Downstation
W to E Downstation
Stationing Starts at 0+00
Stationing Measurement 1+00 is 100 feet
Measurement of Pavement smoothness with a 15
Straight Edge is the
foot 4.573 m rolling straightedge
Straight Edge is used to identify problems
Are random numbers generated usually by a VT for
Random sampling
cores to be extracted from the roadway
How often should you Calibrate at the start of each working period
calibrate a Straight edge
Using the manual straight Locate a flat area with the manual straightedge and
edge you find what kind place the rolling straightedge next to the manual
of spot to place the straightedge and the gauge should read 0
rolling straightedge?
The outside wheels to measure the low and the
The 3/16 and the 3/8 center to measure the high. Gauge should read 3/16
shims go under which on the 3/16 shim and vice versa for the 3/8 shims.
wheels during calibration Make sure the center wheel moves up and down
freely.
https://quizlet.com/965771573/fdot-asphalt-paving-level-1-2024-2025-latest-comprehensive-most-tested-frequently-tested-questions-and-verified-… 1/7
, 11/2/24, 8:30 PM FDOT Asphalt Paving Level 1 |2024-2025 latest |COMPREHENSIVE MOST TESTED (frequently tested) QUESTIONS AND V…
Rolling Straightedge
Manual Straightedge
Calibration materials for
Manual Measurement (ruler)
Straightedge
x4 3/16 shims 5mm thick
x4 3/8 shims 10mm thick
When to perform final After an entire lane has been paved
straightedge
When to perform final Pavement should be an ambient temperature
straightedge
You cannot use the calibrated
straightedge until it has
been properly
When performing the Maintain proper traffic management and safety
straightedge procedure
Cross slopes can be Manually or with a smart level
either done
When using a manual Place a simple level on pavement
cross slope you first
After placing the simple Raise the down end of the level until it is level
level on the pavement (bubble center)
then you
After the simple level is The length of the simple level and the height
lifted until it is level you between the (previously down) end of the level to
measure what the pavement
Calculate the slope using the formula
Formula to calculate the
manual cross slope
( h / l ) x 100 = slope %
Must have a read out gauge, kept clean and in
Requirements for the
working order, low and high reading, and marks to
rolling Straightedge
the nearest 1/16 (1mm)
Rolling Straightedge 3 to 5mph or less
pulled at
