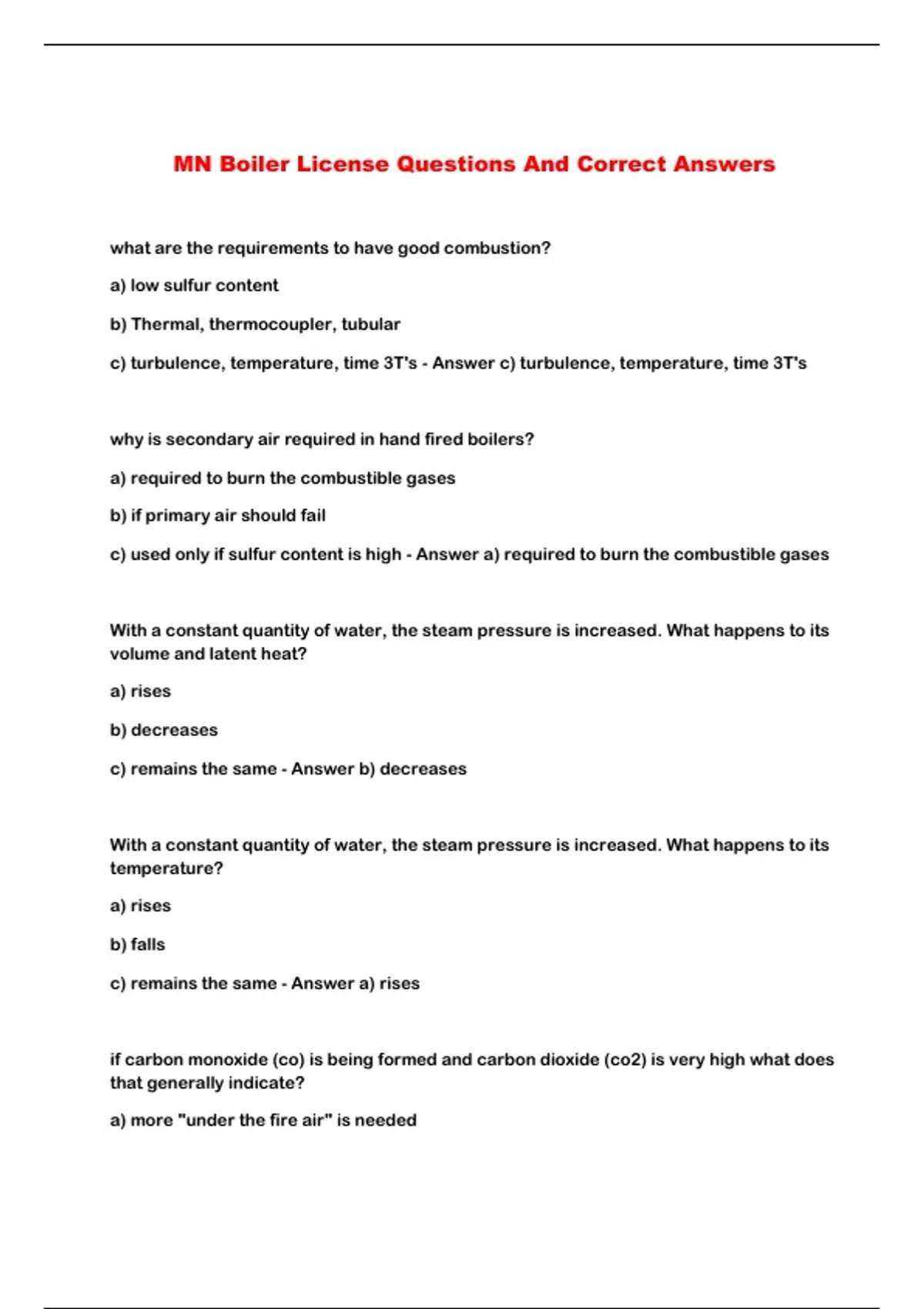

MN Boiler License Questions And Correct Answers
what are the requirements to have good combustion?
a) low sulfur content
b) Thermal, thermocoupler, tubular
c) turbulence, temperature, time 3T's - Answer c) turbulence, temperature, time 3T's
why is secondary air required in hand fired boilers?
a) required to burn the combustible gases
b) if primary air should fail
c) used only if sulfur content is high - Answer a) required to burn the combustible gases
With a constant quantity of water, the steam pressure is increased. What happens to its
volume and latent heat?
a) rises
b) decreases
c) remains the same - Answer b) decreases
With a constant quantity of water, the steam pressure is increased. What happens to its
temperature?
a) rises
b) falls
c) remains the same - Answer a) rises
if carbon monoxide (co) is being formed and carbon dioxide (co2) is very high what does
that generally indicate?
a) more "under the fire air" is needed
,b) less "under the fire air" is needed
c) more "over the fire" air is needed
d) less "over the fire" is needed less - Answer c) more "over the fire" air is needed
excess air is a term that refers to:
a) excess air
b) theoretical air
c) actual air supplied above that theoretically required - Answer c) actual air supplied
above that theoretically required
a good percentage of carbon dioxide when oil is being burned is:
a) 12%
b) 8 %
c) 10% - Answer a) 12%
what is draft on a boiler in operation?
a) Flow of gases through boiler
b) difference in pressure between atmosphere and furnace or firebox
c) difference between atmospheric pressure and breeching - Answer b) difference in
pressure between atmosphere and furnace or firebox
which has greater heating value per pound?
a) oil
b) coal - Answer a) oil (18000 - 19500 BTU)
(coal has (6900 - 12910 BTU))
heavy oil must be heated before entering the burner to:
a) increase carbon content
,b) decreased sulfur content
c) get proper atomization - Answer c) get proper atomization
why should a daily log be kept of flue gas temperature?
a) Valuable information in case of explosion
b) superintendent files them
c) change an operation, causing heat loss, can be detected - Answer c) change an
operation, causing heat loss, can be detected
find SWP of a boiler 72 inches in diameter, thickness of one-half inch, tensile strength of
55,000 pounds, quadruple riveted butt and strap joint (.94) factor of safety 5:
a) 14.3
b) 143.6
c) 1436 - Answer b) 143.6
the total heat of steam is 1,188 BTUs, and feed water temperature is 182 degrees
Fahrenheit. What is the factor of evaporation?
a) 107
b) 10.7
c) 1.07 - Answer c) 1.07
Why would viscosity be important in fuel oil?
a) more heat is recovered in water
b) has more volatile hydrocarbons
c) affects ease with which it can be handled - Answer c) effects ease with which it can
be handled
why is too much air objectionable?
a) Cost too high
, b) loss of efficiency
c) corrosive effect - Answer b) loss of efficiency
what is a fyrite used for?
a) flue gas analyzer
b) combustion programmer
c) water analysis - Answer a) flue gas analyzer
absolute pressure is (ABS):
a) atmospheric pressure - gauge pressure
b) gauge pressure minus atmospheric pressure
c) atmospheric pressure + gauge pressure - Answer c) atmospheric pressure + gauge
pressure
when pressure of steam increases, what happens to the temperature?
a) Goes up
b) goes down
c) remains the same - Answer a) Goes up
find the square feet of heating surface of a flu 4" in diameter and 20' in length:
a) 25'sq
b) 251.32'sq
c) 2513'sq
d) 20.93'sq - Answer d) 20.93'sq
what is the minimum size of the pipes connecting the boiler to the water column?
a) 3/4 inch
