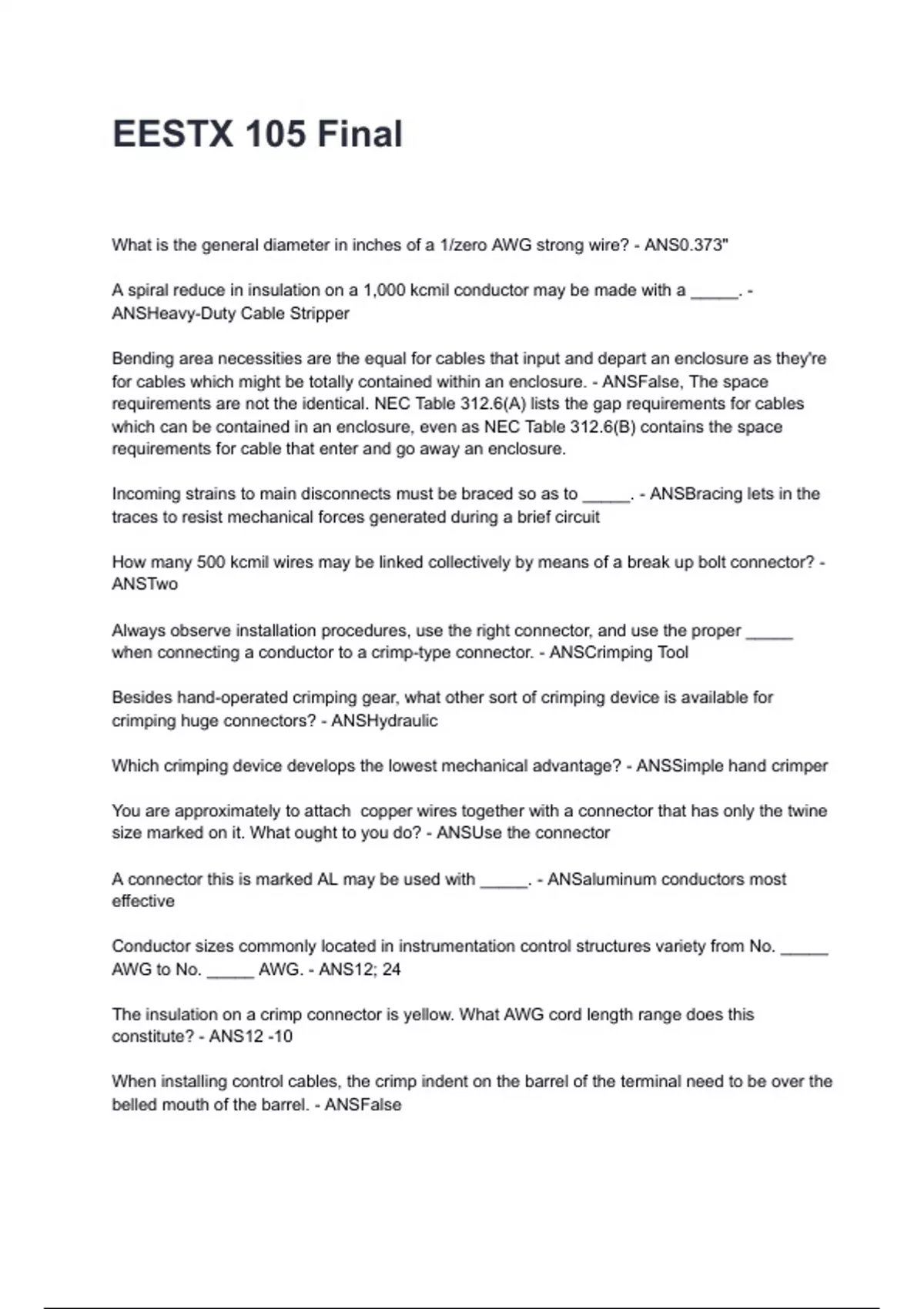

EESTX 105 Final
What is the general diameter in inches of a1/zero AWG strongwire? - ANS0.373"
A spiral reduce in insulation on a1,000 kcmil conductor may be made with a_____. -
ANSHeavy-Duty Cable Stripper
Bending area necessities are the equal for cables that input and depart an enclosure as they're
for cables which might be totally contained within an enclosure. - ANSFalse, The space
requirements are not the identical. NEC Table312.6(A) lists the gap requirements for cables
which can be contained in anenclosure, even as NEC Table312.6(B) contains the space
requirements for cable that enter and go away an enclosure.
Incoming strains to main disconnects must be braced so as to_____. - ANSBracing lets in the
traces to resist mechanical forces generated during a brief circuit
How many 500 kcmil wires may be linked collectively by means of a break up boltconnector? -
ANSTwo
Always observe installationprocedures, use the rightconnector, and use the proper_____
when connecting a conductor to acrimp-type connector. - ANSCrimping Tool
Besideshand-operated crimpinggear, what other sort of crimping device is available for
crimping hugeconnectors? - ANSHydraulic
Which crimping device develops the lowest mechanicaladvantage? - ANSSimple hand crimper
You are approximately to attach copper wires together with a connector that has only the twine
size marked on it. What ought to youdo? - ANSUse the connector
A connector this is marked AL may be used with_____. - ANSaluminum conductors most
effective
Conductor sizes commonly located in instrumentation control structures variety from No._____
AWG to No._____ AWG. - ANS12; 24
The insulation on a crimp connector is yellow. What AWG cord length range does this
constitute? - ANS12 -10
When installing controlcables, the crimp indent on the barrel of the terminal need to be over the
belled mouth of the barrel. - ANSFalse
, Tongue terminals must have the give up of the conductor extending no more than_____ inch
past the inspection hollow. - ANS1/32"
One of the functions of making use of filler tape around acut up-bolt connection is to_____. -
ANSeliminate sharp edges at the connector
This material is taken into consideration by means of many to be the fine universalheat-reduce
tubing. - ANSTeflon
What basic insulator used in a motor connection kit isheat-implemented? - ANSShrink-wrap
insulator
Abloodless-implemented kind of motor connection kit makes use ofa(n) _____ insulating cap
over the splice. - ANSelastomeric
Which of the subsequent is actual with regard tosplices? - ANSFaulty stripping can change the
dielectric strength of the conductors.
The most often used tongue patterns are_____. - ANSringed tongue and locking fork
The crimp indent is properly located at the_____. - ANSseam of the barrel
The minimum wire bending area for 33/0 conductors getting into or leaving the wall opposite
the terminal is_____. - ANS8"
Which of the subsequent quality describes the purpose of a loweringconnector? - ANSTo join
two different length conductors
Which of the following is most in all likelihood to be used to connect an earthbond? -
ANSWindow cuts
What is thediameter, ininches, of2,000 kcmiltwine? - ANS1.Sixty three"
Which of the subsequent exceptional describes the time period stripping as it applies to
conductorsplicing? - ANSRemoval of the insulation from conductors
When the use of a crimpingdevice, follow_____. - ANSan quantity of force among top of the
line mechanical and electric performance
Which of the following types of electrical tape is exceptional for taping maximum joints for
voltages up to600V? - ANSVinyl plastic
