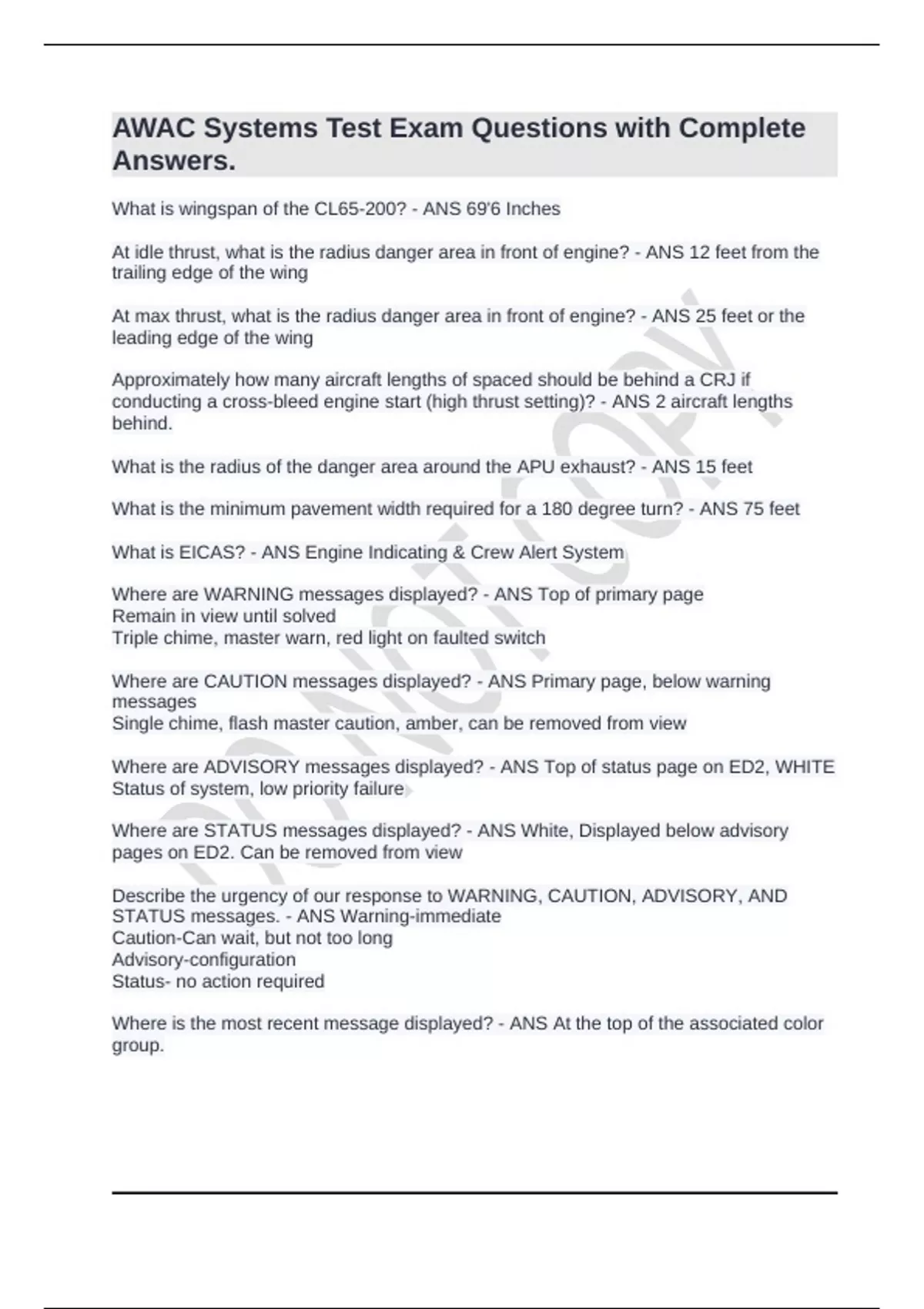

AWAC Systems Test Exam Questions with Complete
Answers.
What is wingspan of the CL65-200? - ANS 69'6 Inches
At idle thrust, what is the radius danger area in front of engine? - ANS 12 feet from the
trailing edge of the wing
At max thrust, what is the radius danger area in front of engine? - ANS 25 feet or the
leading edge of the wing
Approximately how many aircraft lengths of spaced should be behind a CRJ if
conducting a cross-bleed engine start (high thrust setting)? - ANS 2 aircraft lengths
behind.
What is the radius of the danger area around the APU exhaust? - ANS 15 feet
What is the minimum pavement width required for a 180 degree turn? - ANS 75 feet
What is EICAS? - ANS Engine Indicating & Crew Alert System
Where are WARNING messages displayed? - ANS Top of primary page
Remain in view until solved
Triple chime, master warn, red light on faulted switch
Where are CAUTION messages displayed? - ANS Primary page, below warning
messages
Single chime, flash master caution, amber, can be removed from view
Where are ADVISORY messages displayed? - ANS Top of status page on ED2, WHITE
Status of system, low priority failure
Where are STATUS messages displayed? - ANS White, Displayed below advisory
pages on ED2. Can be removed from view
Describe the urgency of our response to WARNING, CAUTION, ADVISORY, AND
STATUS messages. - ANS Warning-immediate
Caution-Can wait, but not too long
Advisory-configuration
Status- no action required
Where is the most recent message displayed? - ANS At the top of the associated color
group.
,Which EICAS page automatically reverts to another display when its display fails? -
ANS Primary page from ED1 automatically reverts to ED2.
Which buttons on the EICAS control panel remain active if power to panel is lost? - ANS
PRI STAT CAS STEP
Which messages are single chime? - ANS Caution
Which messages are triple chime? - ANS Warning
What are green messages called? - ANS Advisory
What are what messages called? - ANS Status
How can multiple pages of messages be displayed? - ANS CAS STAT
Which of the following checklists is performed silently? - ANS after Takeoff Checklist
If ED1 fails, will the information automatically transfer to ED2? - ANS Yes
When executing the Passenger Evacuation Procedure on the IAC, which crewmember
should perform the actions as they are being read? - ANS Captain
What is the maximum operating altitude of the CRJ-200 (AWAC limit)? - ANS FL370
Which EICAS messages are red in color and associated with a triple chime? - ANS
Warning
Which of the following is a memory item for a loss of braking during landing? - ANS
Wheel brakes - Release Momentarily
In what order are EICAS messages displayed? - ANS Warnings above cautions and
they appear with the newest on top.
What is the maximum landing weight for the CRJ-200? - ANS 47,000lbs
How far does the danger area extend around the APU exhaust when the APU is
operating? - ANS 15 feet
Pressing a master warning switch light will cancel which aural warnings? - ANS Fireball
Which circuit breaker panel is located behind the First Officer's seat? - ANS CB2
What is the MENU button used for on the EICAS control panel? - ANS Maintenance
diagnostic information
, According to the IAC, what is the minimum speed required during a double engine
failure procedure? - ANS 240knots
Define PFD - ANS Primary Flight Display- Display that shows primary flight instruments,
flight director, and navigation information.
Define MFD - ANS Multifunction Flight Display- Panel that shows FMS Map, FMS Plan
Map (North Up), NAV Sector, HSI, and TCAS
Instead of the NAV/Radar/TCAS information, what other screens can be displayed on
the MFD using the Display Reversionary Panel? - ANS EICAS and PFD.
How many pilot/static systems are on the CRJ-200? - ANS 3. ADC 1, ADC 2, Standby.
The Captain's pilot/static probe provides air pressure to which Air Data Computer? -
ANS ADC 1
The First Officer's pilot/static probe provides air pressure to which Air Data Computer? -
ANS ADC 2
RA Test - ANS -RA Test switch.....press
-DH set to alt.
-PFD- yellow DH, yellow 50ft, yellow ground reference bar, and altitude tape moves
RA Test switch....... release
What is the maximum altitude displayable of the RA indicator? - ANS 2500 feet
What is the result of pressing the center of the BARO knob on the Air Data Reference
panel? - ANS Sets altimeter to Standard or 29.92
If the Air Data Computer fails, what is displayed on the PFD? - ANS Red flags on the
affected systems (airspeed, altimeter, and VSI)
When does the C-chord aural alert sound? - ANS When off altitude-200 feet
Where is the preselected altitude displayed? - ANS Upper right hand corner on the PFD
in magenta lettering
How is advisory VNAV displayed on the PFD? - ANS The snowflake, or donut on the
VSI
Define AHRS - ANS Altitude and Heading System. 2 on board. Provides attitude and
heading reference to many aircraft systems.
What compass mode provides quicker AHRS alignment? - ANS Mag mode.
