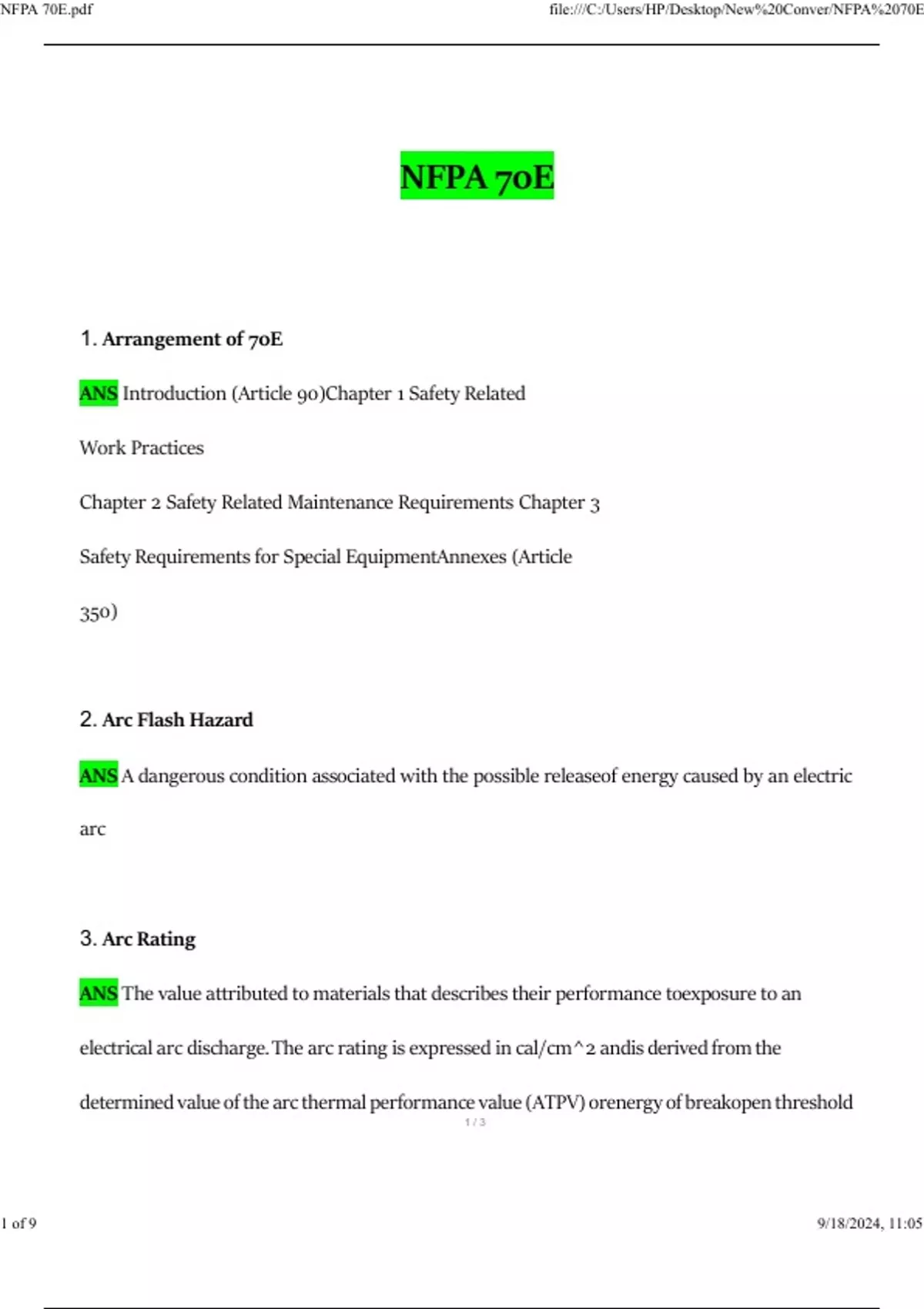

NFPA 70E
1. Arrangement of 70E
ANS Introduction (Article 90)Chapter 1 Safety Related
Work Practices
Chapter 2 Safety Related Maintenance Requirements Chapter 3
Safety Requirements for Special EquipmentAnnexes (Article
350)
2. Arc Flash Hazard
ANS A dangerous condition associated with the possible releaseof energy caused by an electric
arc
3. Arc Rating
ANS The value attributed to materials that describes their performance toexposure to an
electrical arc discharge.The arc rating is expressed in cal/cm^2 andis derived from the
determined value of the arc thermal performance value (ATPV) orenergy of breakopen threshold
1/3
1 of 9 9/18/2024, 11:05
,NFPA 70E.pdf file:///C:/Users/HP/Desktop/New%20Conver/NFPA%2070E
(E BT) (should a material system exhibit a breakopenresoponce below the APTV value). Arc
rating is reported as either APTV or E bt, whichever is the lower value.
4. Barricade
ANS A physical obstruction such as tapes, cones, or A-frame-type wood ormetal structures
intended to provide a warning and to limit access.
5. Barrier
ANS A physical obstruction that is intended to prevent contact with equipmentor energized
electrical conductors and circuit parts or to prevent unauthorized access to a work area.
6. Shock boundaries
ANS Limited approach boundary,Restricted approach
boundary,
Prohibited approach boundary (not in 2015)
7. Limited approach boundary
ANS An approach limit at a distance from an exposedenergized electrical conductor or circtuit
2/3
