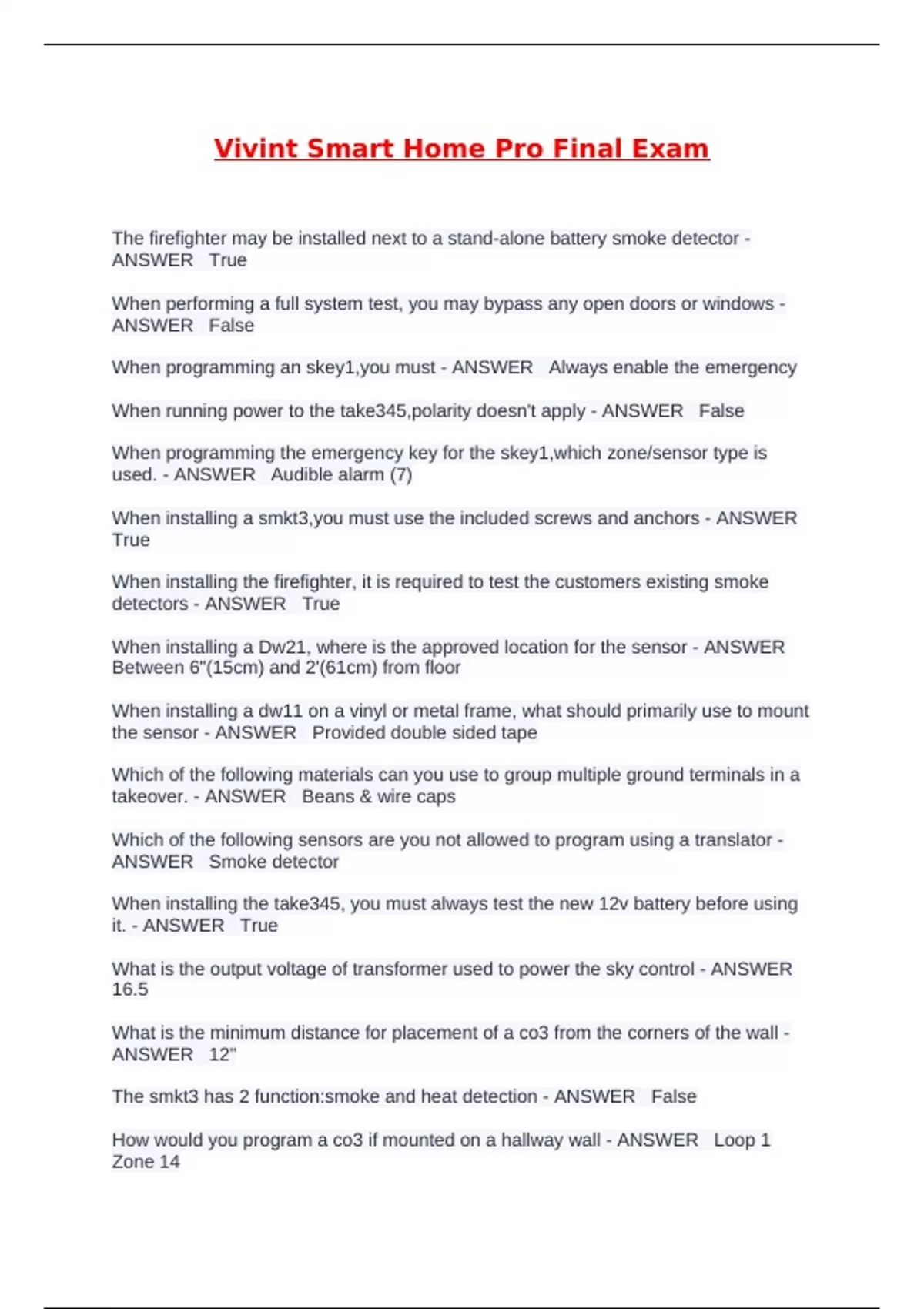

Vivint Smart Home Pro Final Exam
The firefighter may be installed next to a stand-alone battery smoke detector -
ANSWER True
When performing a full system test, you may bypass any open doors or windows -
ANSWER False
When programming an skey1,you must - ANSWER Always enable the emergency
When running power to the take345,polarity doesn't apply - ANSWER False
When programming the emergency key for the skey1,which zone/sensor type is
used. - ANSWER Audible alarm (7)
When installing a smkt3,you must use the included screws and anchors - ANSWER
True
When installing the firefighter, it is required to test the customers existing smoke
detectors - ANSWER True
When installing a Dw21, where is the approved location for the sensor - ANSWER
Between 6"(15cm) and 2'(61cm) from floor
When installing a dw11 on a vinyl or metal frame, what should primarily use to mount
the sensor - ANSWER Provided double sided tape
Which of the following materials can you use to group multiple ground terminals in a
takeover. - ANSWER Beans & wire caps
Which of the following sensors are you not allowed to program using a translator -
ANSWER Smoke detector
When installing the take345, you must always test the new 12v battery before using
it. - ANSWER True
What is the output voltage of transformer used to power the sky control - ANSWER
16.5
What is the minimum distance for placement of a co3 from the corners of the wall -
ANSWER 12"
The smkt3 has 2 function:smoke and heat detection - ANSWER False
How would you program a co3 if mounted on a hallway wall - ANSWER Loop 1
Zone 14
, When installing a translator, you must program all of the existing sensors as new
equipment on the panel - ANSWER False
The dw21 should always be installed in the door frame - ANSWER True
Which of the following zone/sensor types are correct when programming an smkt3 -
ANSWER (09) Smoke detector. (09) Heat detector. (08) Freeze
What it the correct height ar which to install the Pir2 - ANSWER 7ft
When programming a Dw21 what loop number is used - ANSWER Loop 2
When programming a sensor into a sky control panel, you can type in the serial
number or learn it in by triggering the device. - ANSWER True
How would you program a gb2 when it is mounted on a master bedroom ceiling -
ANSWER Loop 1 Zone 3
Panic pendants are programmed as an audible alarm(type 07) - ANSWER True
When installing the take 345 you must ensure that the transformer is supplying
power to the power supply before connecting the battery - ANSWER True
When wiring the take 345 you must ensure it has three points of ground: the low side
of each zone, the takeover module, and the power supply - ANSWER True
You are required to test all secondary keypads and key fobs even though they are
not detection devices - ANSWER True
When installing a dw21, what size drill bit should you use to drill the hole for the
sensor - ANSWER 3/4"
When programming a Pir2, which loop number must you use - ANSWER Loop 1
Which step should you always take to ensure that the z wave network is aligned in
the strongest manner? - ANSWER
When powering up a deadbolt smart lock for the first time, which of the following
must you always do - ANSWER Initiate the lock handling procedure
When installing a deadbolt smart lock, insert the wiring harness below below the bolt
- ANSWER True
What is the input voltage range for a doorbell camera - ANSWER 12-24v
How many stages of heat does a conventional unit with a furnace have if it has not a
W and W2 wire. - ANSWER 2 stages
Determine the Hvac setup based on the following wiring:C,B,W2,Y,Rh,G - ANSWER
Conventional, AC powered, 1 stage heat, 1 stage cool
