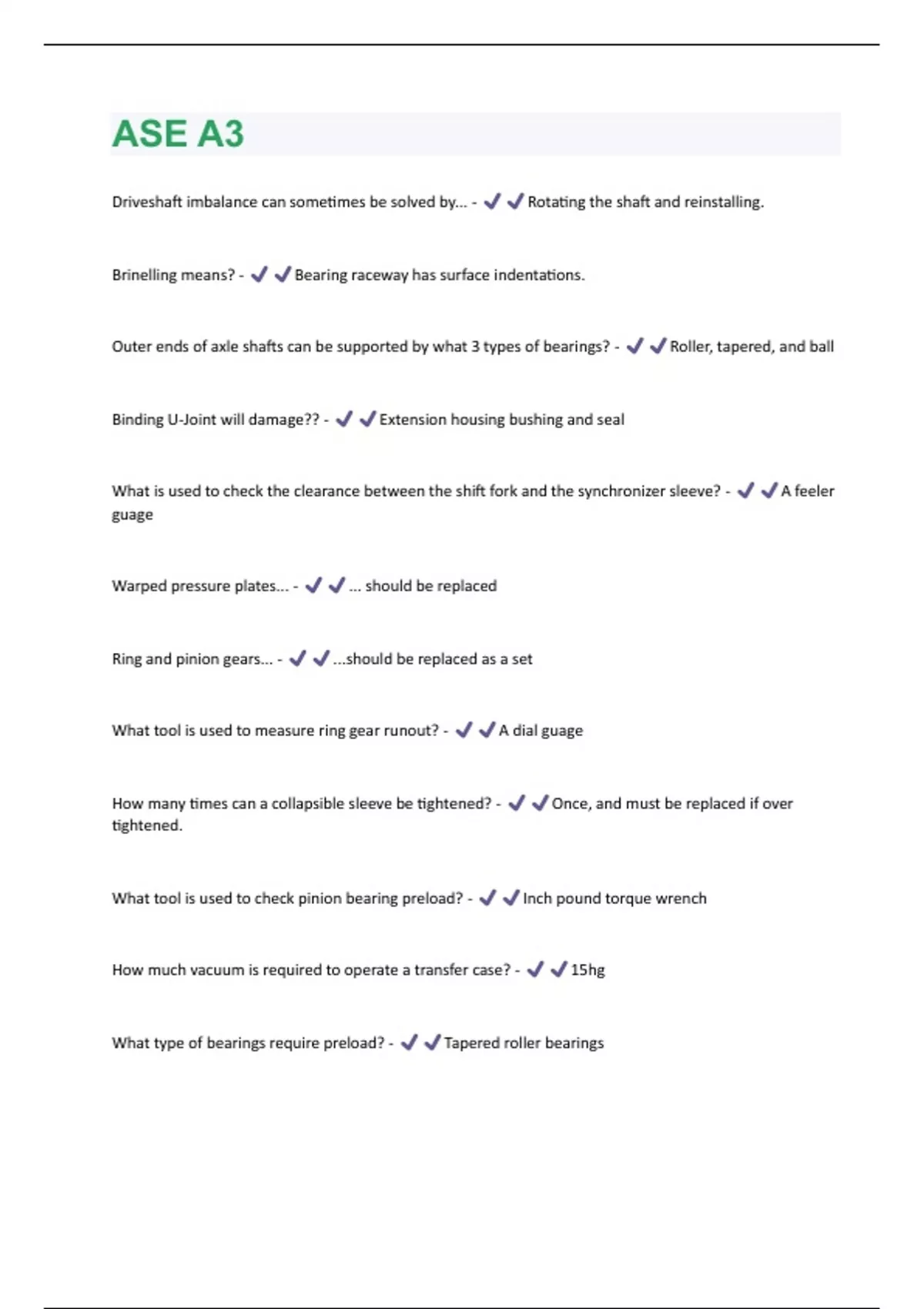

ASE A3
Driveshaft imbalance can sometimes be solved by... - Rotating the shaft and reinstalling.
Brinelling means? - Bearing raceway has surface indentations.
Outer ends of axle shafts can be supported by what 3 types of bearings? - Roller, tapered, and ball
Binding U-Joint will damage?? - Extension housing bushing and seal
What is used to check the clearance between the shift fork and the synchronizer sleeve? - A feeler
guage
Warped pressure plates... - ... should be replaced
Ring and pinion gears... - ...should be replaced as a set
What tool is used to measure ring gear runout? - A dial guage
How many times can a collapsible sleeve be tightened? - Once, and must be replaced if over
tightened.
What tool is used to check pinion bearing preload? - Inch pound torque wrench
How much vacuum is required to operate a transfer case? - 15hg
What type of bearings require preload? - Tapered roller bearings
, Can a bad speed sensor affect shift pattern? - Yes
What is a viscous clutch designed for? - Compensating for differences in axle rotation
What kind of noise will chipped gear teeth make? - Growling or grinding noise
Bell housing transmission bore and the rear face should be checked for? - Runout
Check runout before or after installing pressure plate cover? - Before
Correct face runout by... - Installing shims
Symptoms of a stuck pilot bearing? - Clutch not disengaging
Noise
Clutch hub damage
Mark position of flywheel in relation to... - Crankshaft
Whining gears can be caused by..... - Low fluid
Worn bearings will make what type of noise? - Growl or grating
If a noise is loudest on corners then the noise is most likely coming from... - Axle bearings
Diff Gears
Final drive case bearings
Gear noise in only one gear - Constant mesh gear combination for that gear damaged
Driveshaft imbalance can sometimes be solved by... - Rotating the shaft and reinstalling.
Brinelling means? - Bearing raceway has surface indentations.
Outer ends of axle shafts can be supported by what 3 types of bearings? - Roller, tapered, and ball
Binding U-Joint will damage?? - Extension housing bushing and seal
What is used to check the clearance between the shift fork and the synchronizer sleeve? - A feeler
guage
Warped pressure plates... - ... should be replaced
Ring and pinion gears... - ...should be replaced as a set
What tool is used to measure ring gear runout? - A dial guage
How many times can a collapsible sleeve be tightened? - Once, and must be replaced if over
tightened.
What tool is used to check pinion bearing preload? - Inch pound torque wrench
How much vacuum is required to operate a transfer case? - 15hg
What type of bearings require preload? - Tapered roller bearings
, Can a bad speed sensor affect shift pattern? - Yes
What is a viscous clutch designed for? - Compensating for differences in axle rotation
What kind of noise will chipped gear teeth make? - Growling or grinding noise
Bell housing transmission bore and the rear face should be checked for? - Runout
Check runout before or after installing pressure plate cover? - Before
Correct face runout by... - Installing shims
Symptoms of a stuck pilot bearing? - Clutch not disengaging
Noise
Clutch hub damage
Mark position of flywheel in relation to... - Crankshaft
Whining gears can be caused by..... - Low fluid
Worn bearings will make what type of noise? - Growl or grating
If a noise is loudest on corners then the noise is most likely coming from... - Axle bearings
Diff Gears
Final drive case bearings
Gear noise in only one gear - Constant mesh gear combination for that gear damaged
