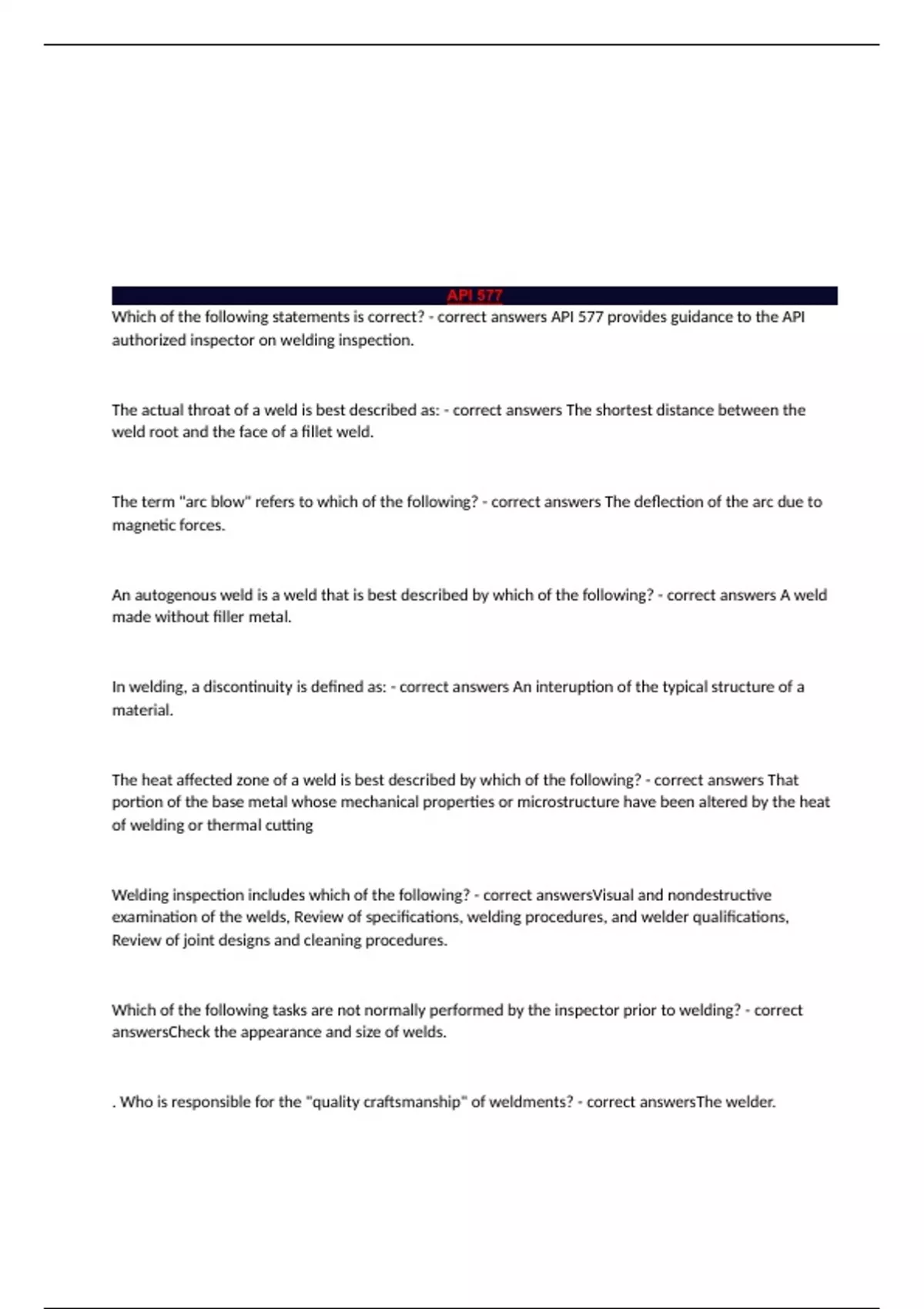

API 577
Which of the following statements is correct? - correct answers API 577 provides guidance to the API
authorized inspector on welding inspection.
The actual throat of a weld is best described as: - correct answers The shortest distance between the
weld root and the face of a fillet weld.
The term "arc blow" refers to which of the following? - correct answers The deflection of the arc due to
magnetic forces.
An autogenous weld is a weld that is best described by which of the following? - correct answers A weld
made without filler metal.
In welding, a discontinuity is defined as: - correct answers An interuption of the typical structure of a
material.
The heat affected zone of a weld is best described by which of the following? - correct answers That
portion of the base metal whose mechanical properties or microstructure have been altered by the heat
of welding or thermal cutting
Welding inspection includes which of the following? - correct answersVisual and nondestructive
examination of the welds, Review of specifications, welding procedures, and welder qualifications,
Review of joint designs and cleaning procedures.
Which of the following tasks are not normally performed by the inspector prior to welding? - correct
answersCheck the appearance and size of welds.
. Who is responsible for the "quality craftsmanship" of weldments? - correct answersThe welder.
, During welding operations, the inspector should: - correct answersConfirm welding parameters and
techniques are supported by the WPS and WPQ, Complete physical checks, visual examinations, and in
process NDE, Establish a quality control and quality assurance umbrella with the welding organization.
Following the completion of welding, and before the completed welds are placed in service, the
inspector should: - correct answersa. Verify post weld acceptance and that NDE was performed at the
selected locations, Verify that post weld heat treatments and pressure testing were performed, if
required, and that the results were acceptable, Audit the inspection files to identify inaccuracies and
incomplete information
If at any time during welding inspection the inspector discover defects or nonconformances, he/she
should: - correct answersThe defects or nonconformances should be brought to the attention of those
responsible or corrected before the work proceeds further.
If ASME Section V, Article 1 is specified by the referenceing code, NDE personnel: - correct answersShall
be qualified in accordance with ASNT SNT-TC-1A or ANSI/ASNT CP-189.
API 577 requires that inspectors should be aware of the hazards associated with welding and take steps
to avoid injury while performing inspection tasks. As a minimum, the inspector should: - correct
answersFollow all site safety rules and regulations.
API 577 describes all but which of the following welding processes? - correct answersElectro Slag
Welding.
Which of the following weld processes uses a flux coated electrode? - correct answersSMAW.
Which of the following weld processes uses a non consumable electrode? - correct answersGMAW.
Which of the following weld processes uses a flux filled tubular electrode? - correct answersFCAW.
Which of the following is not an advantage of SMAW? - correct answersThe deposition rate is higher
than for GMAW or SAW.
Which of the following statements is correct? - correct answers API 577 provides guidance to the API
authorized inspector on welding inspection.
The actual throat of a weld is best described as: - correct answers The shortest distance between the
weld root and the face of a fillet weld.
The term "arc blow" refers to which of the following? - correct answers The deflection of the arc due to
magnetic forces.
An autogenous weld is a weld that is best described by which of the following? - correct answers A weld
made without filler metal.
In welding, a discontinuity is defined as: - correct answers An interuption of the typical structure of a
material.
The heat affected zone of a weld is best described by which of the following? - correct answers That
portion of the base metal whose mechanical properties or microstructure have been altered by the heat
of welding or thermal cutting
Welding inspection includes which of the following? - correct answersVisual and nondestructive
examination of the welds, Review of specifications, welding procedures, and welder qualifications,
Review of joint designs and cleaning procedures.
Which of the following tasks are not normally performed by the inspector prior to welding? - correct
answersCheck the appearance and size of welds.
. Who is responsible for the "quality craftsmanship" of weldments? - correct answersThe welder.
, During welding operations, the inspector should: - correct answersConfirm welding parameters and
techniques are supported by the WPS and WPQ, Complete physical checks, visual examinations, and in
process NDE, Establish a quality control and quality assurance umbrella with the welding organization.
Following the completion of welding, and before the completed welds are placed in service, the
inspector should: - correct answersa. Verify post weld acceptance and that NDE was performed at the
selected locations, Verify that post weld heat treatments and pressure testing were performed, if
required, and that the results were acceptable, Audit the inspection files to identify inaccuracies and
incomplete information
If at any time during welding inspection the inspector discover defects or nonconformances, he/she
should: - correct answersThe defects or nonconformances should be brought to the attention of those
responsible or corrected before the work proceeds further.
If ASME Section V, Article 1 is specified by the referenceing code, NDE personnel: - correct answersShall
be qualified in accordance with ASNT SNT-TC-1A or ANSI/ASNT CP-189.
API 577 requires that inspectors should be aware of the hazards associated with welding and take steps
to avoid injury while performing inspection tasks. As a minimum, the inspector should: - correct
answersFollow all site safety rules and regulations.
API 577 describes all but which of the following welding processes? - correct answersElectro Slag
Welding.
Which of the following weld processes uses a flux coated electrode? - correct answersSMAW.
Which of the following weld processes uses a non consumable electrode? - correct answersGMAW.
Which of the following weld processes uses a flux filled tubular electrode? - correct answersFCAW.
Which of the following is not an advantage of SMAW? - correct answersThe deposition rate is higher
than for GMAW or SAW.
