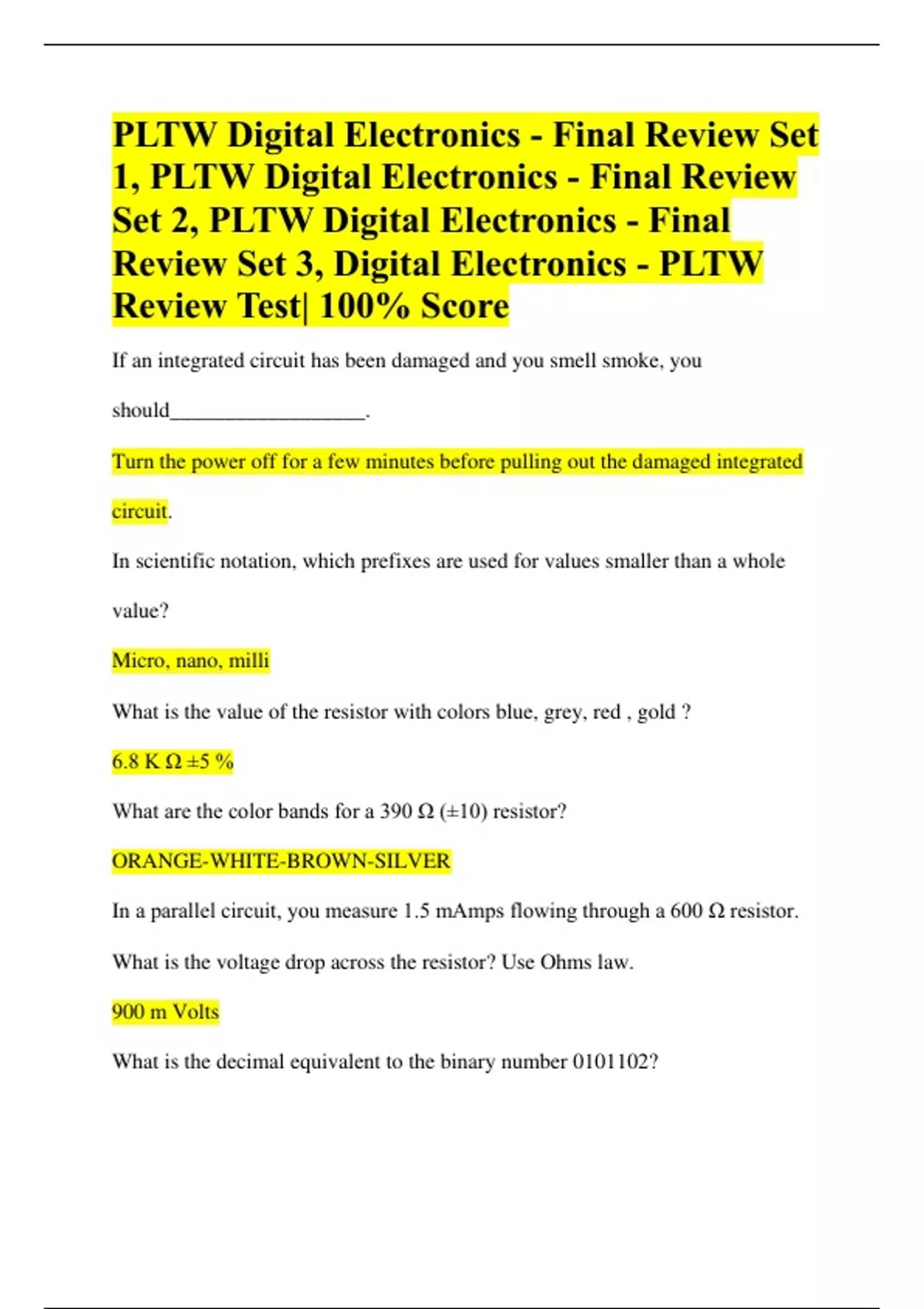

PLTW Digital Electronics - Final Review Set 1, PLTW Digital Electronics - Final Review Set 2, PLTW Digital Electronics - Final Review Set 3, Digital Electronics - PLTW Review Test| 100% Score If an integrated circuit has been damaged and you smell smoke, you should__________________. Turn the power off for a few minutes before pulling out the damaged integrated circuit. In scientific notation, which prefixes are used for values smaller than a whole value? Micro, nano, milli What is the value of the resistor with colors blue, grey, red , gold ? 6.8 K Ω ±5 % What are the color bands for a 390 Ω (±10) resistor? ORANGE-WHITE-BROWN-SILVER In a parallel circuit, you measure 1.5 mAmps flowing through a 600 Ω resistor. What is the voltage drop across the resistor? Use Ohms law. 900 m Volts What is the decimal equivalent to the binary number 0101102? 22 power of 10 In the eight-bit binary number shown below, which bit is the Least Significant Bit (LSB)? b7b6 b5 b4 b3 b2 b1 b0 1 0 1 1 0 1 0 1 B 0 (zero) Which of the following is a rule of Boolean algebra? 1. AA • 0 = A 2. AB • 1= 1 3. A • A = A 4. AC • A = 1 A • A = A What is the binary equivalent to the decimal number 1310? 1101 What is the decimal equivalent to the binary number 0101102? 22 base 10 What is the binary equivalent to the hexadecimal number CH 11002 Which of the following equations is the un-simplified Sum-Of-Products equation for the truth table shown below with F as the Output? X Y Z F 0 0 0 0 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 0 1 0 1 0 1 1 0 1 1 1 1 0 F = X' Y' Z + X' Y Z' + X Y Z' What is the letter symbol for current? I Which of the following is a correct DeMorgan's Identity? 1.. XY" = X'•Y' 2. XY" = X'•Y 3. XY" = X' + Y' 4. XY = X + Y XY" = X' + Y' . Which of the following is the simplified equivalent for the Boolean equation shown?
