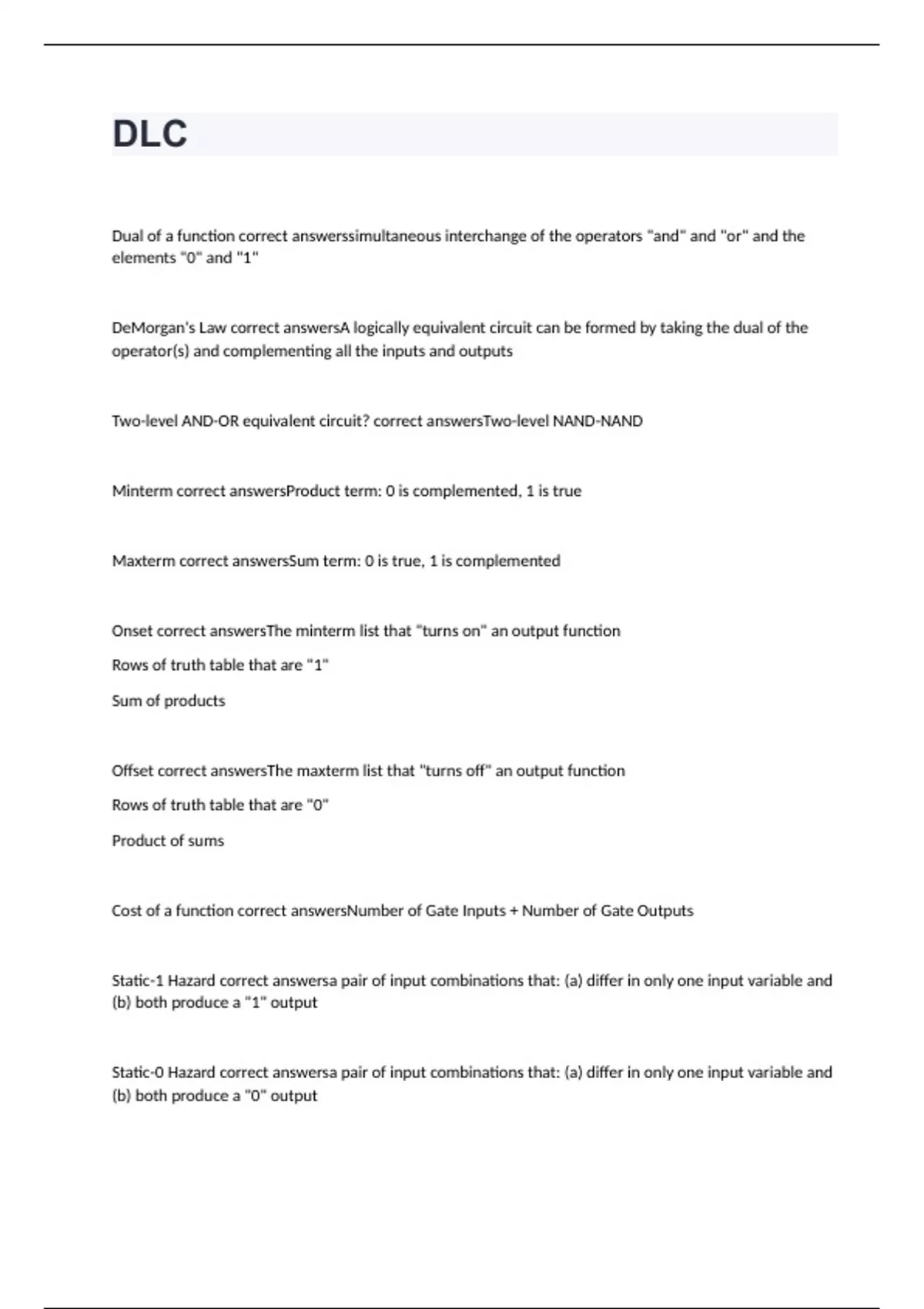

Document preview thumbnail
Preview 2 out of 7 pages
Exam (elaborations)

DLC exam 2024 with 100% correct answers

0.0
(0 reviews)
- sold
7 pages
2023/2024 Written for academic year
Institution DLC Bt
Course DLC bt
Document preview thumbnail
Preview 2 out of 7 pages

Dual of a function correct answerssimultaneous interchange of the operators "and" and "or" and the elements "0" and "1" DeMorgan's Law correct answersA logically equivalent circuit can be formed by taking the dual of the operator(s) and complementing all the inputs and outputs Two-level AND-OR equivalent circuit? correct answersTwo-level NAND-NAND Minterm correct answersProduct term: 0 is complemented, 1 is true Maxterm correct answersSum term: 0 is true, 1 is complemented Onset correct answersThe minterm list that "turns on" an output function Rows of truth table that are "1" Sum of products Offset correct answersThe maxterm list that "turns off" an output function Rows of truth table that are "0" Product of sums Cost of a function correct answersNumber of Gate Inputs + Number of Gate Outputs Static-1 Hazard correct answersa pair of input combinations that: (a) differ in only one input variable and (b) both produce a "1" output Static-0 Hazard correct answersa pair of input combinations that: (a) differ in only one input variable and (b) both produce a "0" output

Document information

Uploaded on
May 25, 2024
Number of pages
7
Written in
2023/2024
Type
Exam (elaborations)
Contains
Questions & answers
