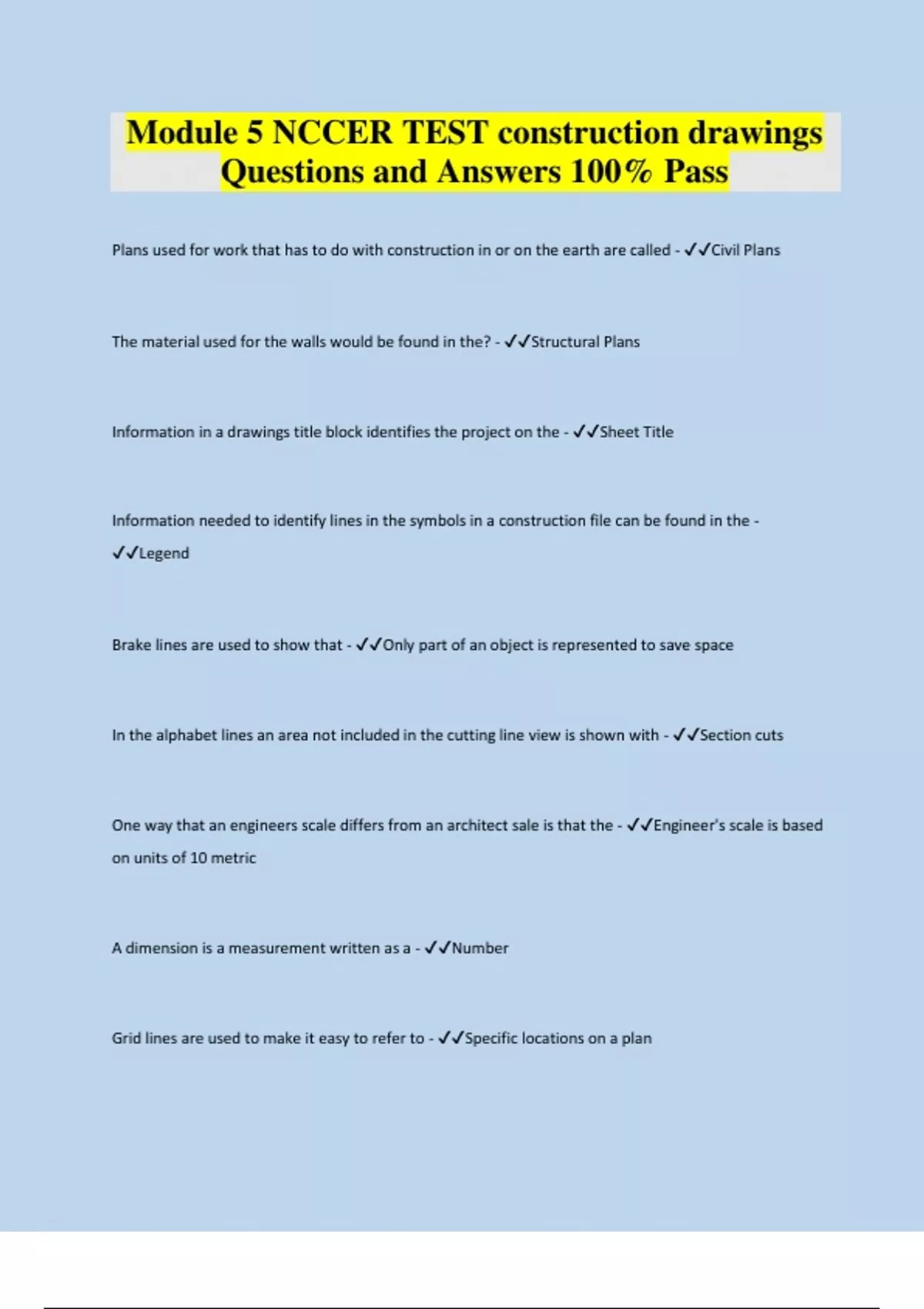

Module 5 NCCER TEST construction drawings Questions and Answers 100% Pass
Preview 1 out of 3 pages
Plans used for work that has to do with construction in or on the earth are called - Civil Plans The material used for the walls would be found in the? - Structural Plans Information in a drawings title block identifies the project on the - Sheet Title Information needed to identify lines in the symbols in a construction file can be found in the - Legend Brake lines are used to show that - Only part of an object is represented to save space In the alphabet lines an area not included in the cutting line view is shown with - Section cuts One way that an engineers scale differs from an architect sale is that the - Engineer's scale is based on units of 10 metric A dimension is a measurement written as a - Number
