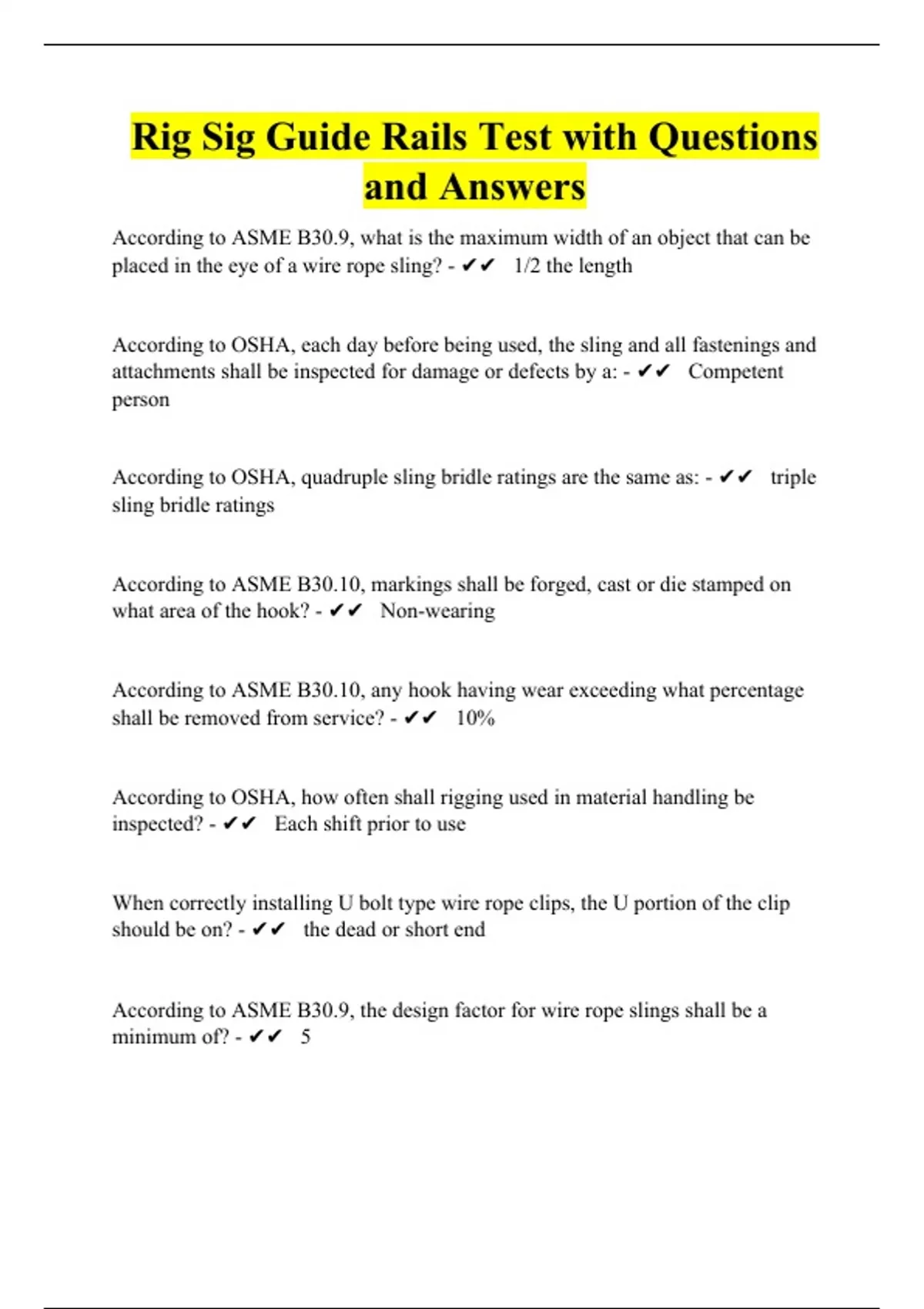

Rig Sig Guide Rails Test with Questions and Answers

According to ASME B30.9, what is the maximum width of an object that can be placed in the eye of a wire rope sling? - 1/2 the length According to OSHA, each day before being used, the sling and all fastenings and attachments shall be inspected for damage or defects by a: - Competent person According to OSHA, quadruple sling bridle ratings are the same as: - triple sling bridle ratings According to ASME B30.10, markings shall be forged, cast or die stamped on what area of the hook? - Non-wearing According to ASME B30.10, any hook having wear exceeding what percentage shall be removed from service? - 10% According to OSHA, how often shall rigging used in material handling be inspected? - Each shift prior to use When correctly installing U bolt type wire rope clips, the U portion of the clip should be on? - the dead or short end According to ASME B30.9, the design factor for wire rope slings shall be a minimum of? - 5 According to ASME B30.26, if the shackle is to be side loaded, the rates load shall be reduced according to the recommendations of which person listed below? - Qualified According to ASME B30.9, what is the maximum width of an object that can be placed in the eye of a synthetic web sling? - 1/3 the length According to ASME B30.26, non shouldered eye bolts shall only be used when the angle of loading is: - 0° According to ASME B30.26, what is the only type of eyebolt that can be used for angular lifting? - Shouldered According to ASME B30.9, the design factor for alloy steel chain slings shall be a minimum of? - 4 According to ASME B30.26, each new link, ring, and swivel shall be marked by the manufacturer to show what? - Size or rated load
