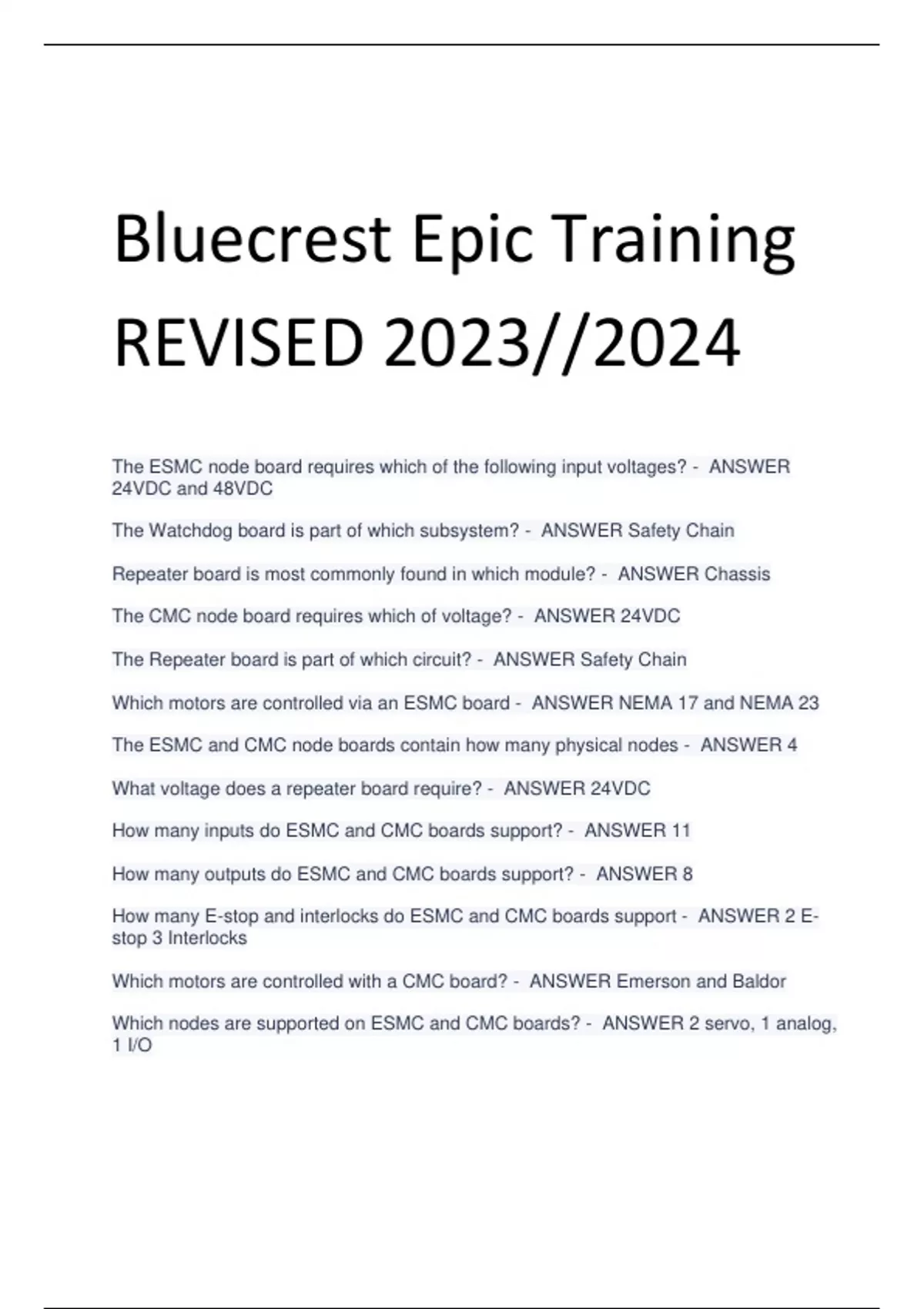

Bluecrest Epic Training REVISED 2023//2024
The ESMC node board requires which of the following input voltages? - ANSWER 24VDC and 48VDC The Watchdog board is part of which subsystem? - ANSWER Safety Chain Repeater board is most commonly found in which module? - ANSWER Chassis The CMC node board requires which of voltage? - ANSWER 24VDC The Repeater board is part of which circuit? - ANSWER Safety Chain Which motors are controlled via an ESMC board - ANSWER NEMA 17 and NEMA 23 The ESMC and CMC node boards contain how many physical nodes - ANSWER 4 What voltage does a repeater board require? - ANSWER 24VDC How many inputs do ESMC and CMC boards support? - ANSWER 11 How many outputs do ESMC and CMC boards support? - ANSWER 8
