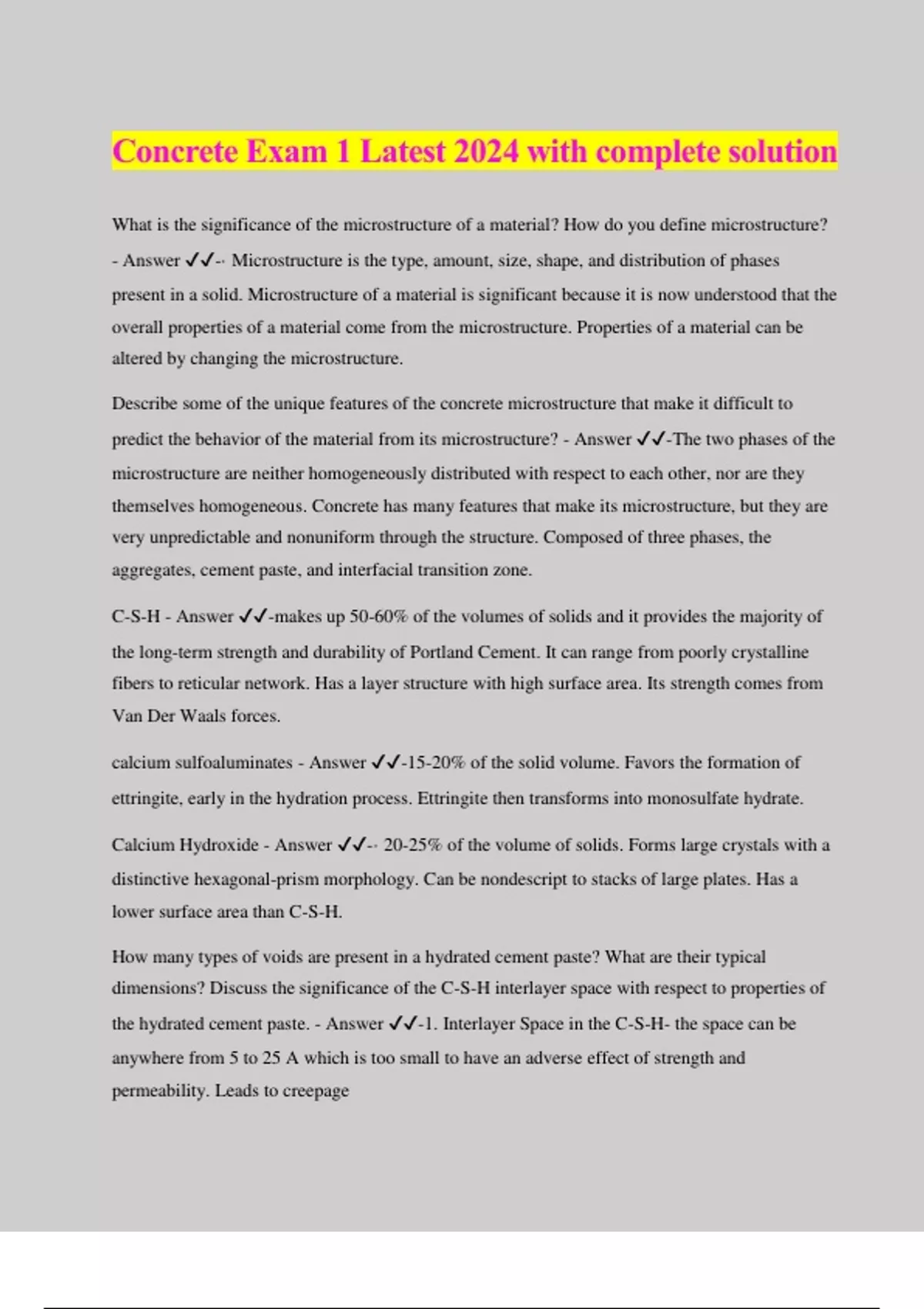

Concrete Exam 1 Latest 2024 with complete solution

Concrete Exam 1 Latest 2024 with complete solution What is the significance of the microstructure of a material? How do you define microstructure? - Answer ️️ -· Microstructure is the type, amount, size, shape, and distribution of phases present in a solid. Microstructure of a material is significant because it is now understood that the overall properties of a material come from the microstructure. Properties of a material can be altered by changing the microstructure. Describe some of the unique features of the concrete microstructure that make it difficult to predict the behavior of the material from its microstructure? - Answer ️️ -The two phases of the microstructure are neither homogeneously distributed with respect to each other, nor are they themselves homogeneous. Concrete has many features that make its microstructure, but they are very unpredictable and nonuniform through the structure. Composed of three phases, the aggregates, cement paste, and interfacial transition zone. C-S-H - Answer ️️ -makes up 50-60% of the volumes of solids and it provides the majority of the long-term strength and durability of Portland Cement. It can range from poorly crystalline fibers to reticular network. Has a layer structure with high surface area. Its strength comes from Van Der Waals forces. calcium sulfoaluminates - Answer ️️ -15-20% of the solid volume. Favors the formation of ettringite, early in the hydration process. Ettringite then transforms into monosulfate hydrate. Calcium Hydroxide - Answer ️️ -· 20-25% of the volume of solids. Forms large crystals with a distinctive hexagonal-prism morphology. Can be nondescript to stacks of large plates. Has a lower surface area than C-S-H. How many types of voids are present in a hydrated cement paste? What are their typical dimensions? Discuss the significance of the C-S-H interlayer space with respect to properties of the hydrated cement paste. - Answer ️️ -1. Interlayer Space in the C-S-H- the space can be anywhere from 5 to 25 A which is too small to have an adverse effect of strength and permeability. Leads to creepage 2. Capillary Voids- 10-50 μm in high water cement ratio pastes or 3-5 μm in early hydration. Macropores are voids 50nm and micropores are voids 50nm. Shrinkage and creepage 3. Air voids- spherical can range from 50-200 μm. Adversely affect strength How many types of water are associated with a saturated cement paste? Discuss the significance of each. Why is it desirable to distinguish between the free water in large capillaries and the water held in small capillaries? - Answer ️️ -1. Capillary water- Made up of large voids called free water because its removal does not cause any volume change, while water removal in the small voids causes shrinkage in the system. 2. Adsorbed water- the loss of absorbed water is responsible for the shrinkage of the hydrated cement paste. 3. Interlayer water- A monomolecular water layer between the layer of C-S-H is strongly held by hydrogen bonding. This water is only lost on strong drying. 4. Chemically combined water- Integral part of the microstructure of various hydration products. It is evolved when the hydrates decompose on heating. It is important to distinguish between free water in small and large capillaries because the removal of water in the large voids does not cause any change in volume and the removal of water in small capillaries causes shrin
