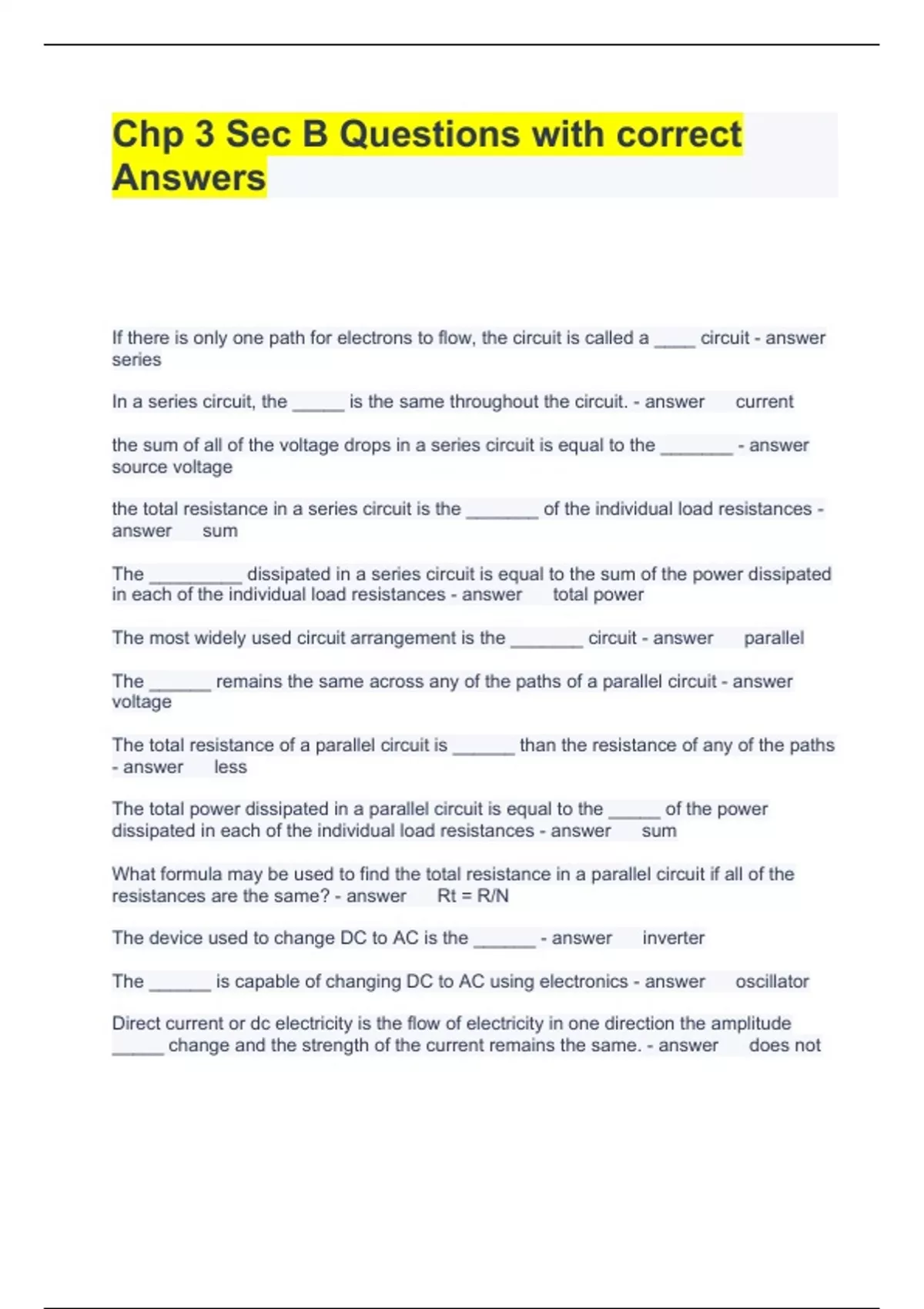

Chp 3 Sec B Questions with correct Answers
Chp 3 Sec B Questions with correct Answers If there is only one path for electrons to flow, the circuit is called a ____ circuit series In a series circuit, the _____ is the same throughout the circuit. current Brainpower Read More Previous Play Next Rewind 10 seconds Move forward 10 seconds Unmute 0:12 / 0:15 Full screen the sum of all of the voltage drops in a series circuit is equal to the _______ source voltage the total resistance in a series circuit is the _______ of the individual load resistances sum The _________ dissipated in a series circuit is equal to the sum of the power dissipated in each of the individual load resistances total power The most widely used circuit arrangement is the _______ circuit parallel The ______ remains the same across any of the paths of a parallel circuit voltage The total resistance of a parallel circuit is ______ than the resistance of any of the paths less The total power dissipated in a parallel circuit is equal to the _____ of the power dissipated in each of the individual load resistances sum What formula may be used to find the total resistance in a parallel circuit if all of the resistances are the same? Rt = R/N The device used to change DC to AC is the ______ inverter The ______ is capable of changing DC to AC using electronics oscillator
