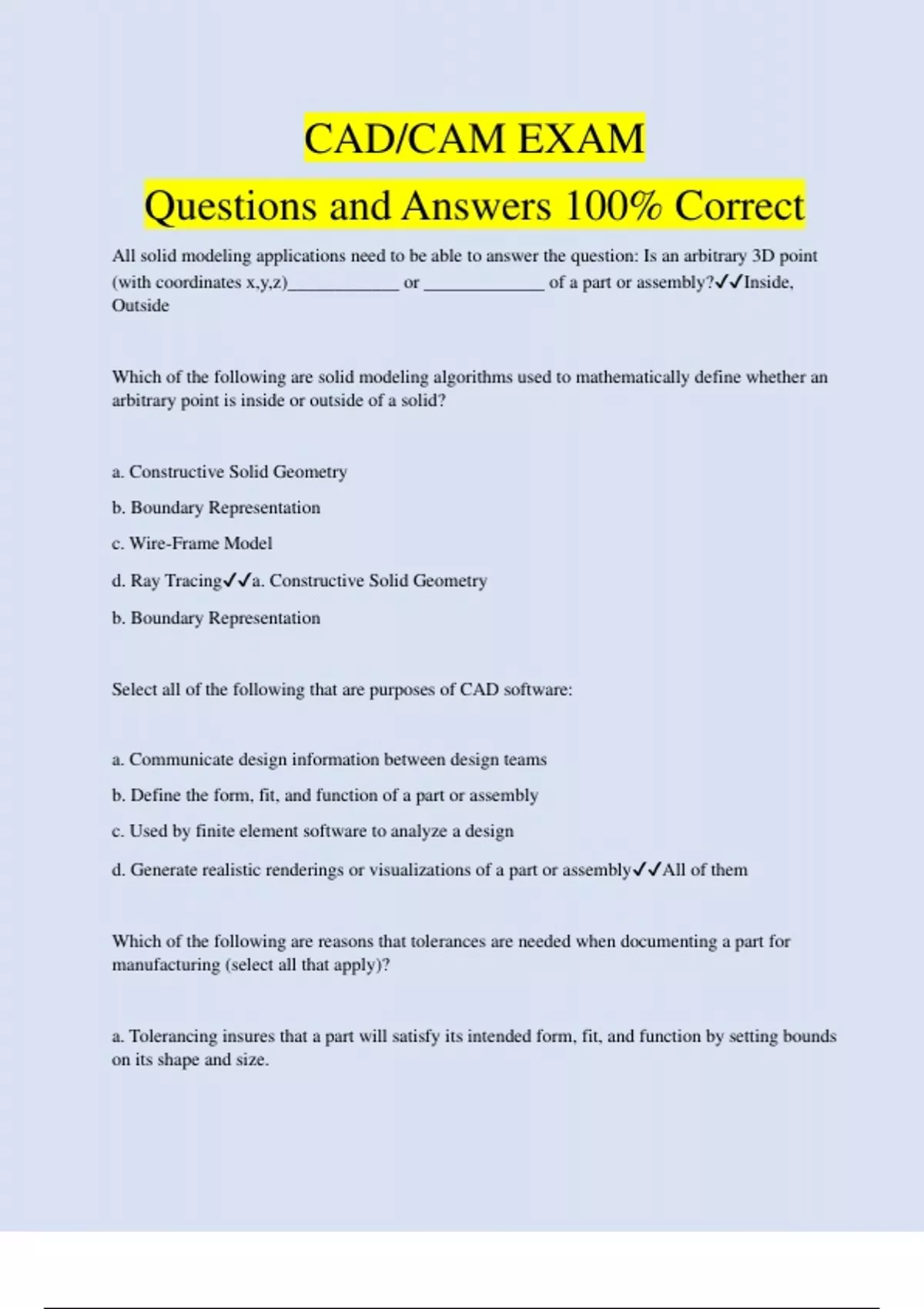

CAD/CAM EXAM Questions and Answers 100% Correct
All solid modeling applications need to be able to answer the question: Is an arbitrary 3D point (with coordinates x,y,z)____________ or _____________ of a part or assembly?Inside, Outside Which of the following are solid modeling algorithms used to mathematically define whether an arbitrary point is inside or outside of a solid? a. Constructive Solid Geometry b. Boundary Representation c. Wire-Frame Model d. Ray Tracinga. Constructive Solid Geometry b. Boundary Representation Select all of the following that are purposes of CAD software: a. Communicate design information between design teams b. Define the form, fit, and function of a part or assembly c. Used by finite element software to analyze a design d. Generate realistic renderings or visualizations of a part or assemblyAll of them Which of the following are reasons that tolerances are needed when documenting a part for manufacturing (select all that apply)? a. Tolerancing insures that a part will satisfy its intended form, fit, and function by setting bounds on its shape and size
