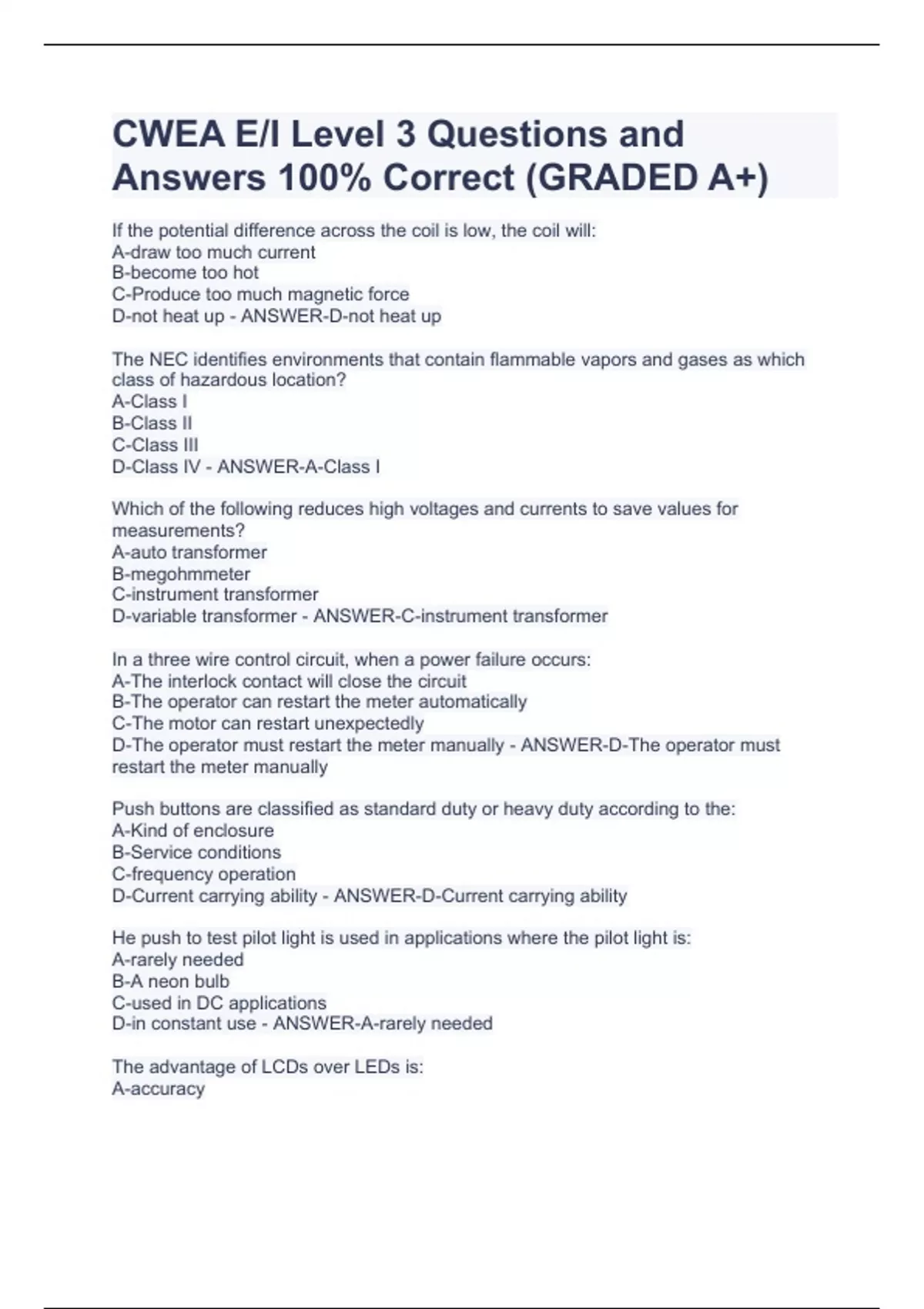

CWEA E/I Level 3 Questions and Answers 100% Correct (GRADED A+)

If the potential difference across the coil is low, the coil will: A-draw too much current B-become too hot C-Produce too much magnetic force D-not heat up - ANSWER-D-not heat up The NEC identifies environments that contain flammable vapors and gases as which class of hazardous location? A-Class I B-Class II C-Class III D-Class IV - ANSWER-A-Class I Which of the following reduces high voltages and currents to save values for measurements? A-auto transformer B-megohmmeter C-instrument transformer D-variable transformer - ANSWER-C-instrument transformer In a three wire control circuit, when a power failure occurs: A-The interlock contact will close the circuit B-The operator can restart the meter automatically C-The motor can restart unexpectedly D-The operator must restart the meter manually - ANSWER-D-The operator must restart the meter manually Push buttons are classified as standard duty or heavy duty according to the: A-Kind of enclosure B-Service conditions C-frequency operation D-Current carrying ability - ANSWER-D-Current carrying ability He push to test pilot light is used in applications where the pilot light is: A-rarely needed B-A neon bulb C-used in DC applications D-in constant use - ANSWER-A-rarely needed The advantage of LCDs over LEDs is: A-accuracy B-better visibility C-lower power consumption D-sensitivity - ANSWER-C-lower power consumption Shielding protects an analog meter from: a. damage due to careless handling. b. harmful UV rays. c. over-current and surges. d. stray magnetic fields. - ANSWER-d. stray magnetic fields. An ammeter should be connected: a. across the line. b. around an inductor. c. in parallel with the load. d. in series with the load. - ANSWER-d. in series with the load. Bar graphs and wave forms can be displayed on a LCD screen when the multimeter has: a. analog/digital circuits. b. microprocessor circuitry. c. opposing coils and a commutator. d.
