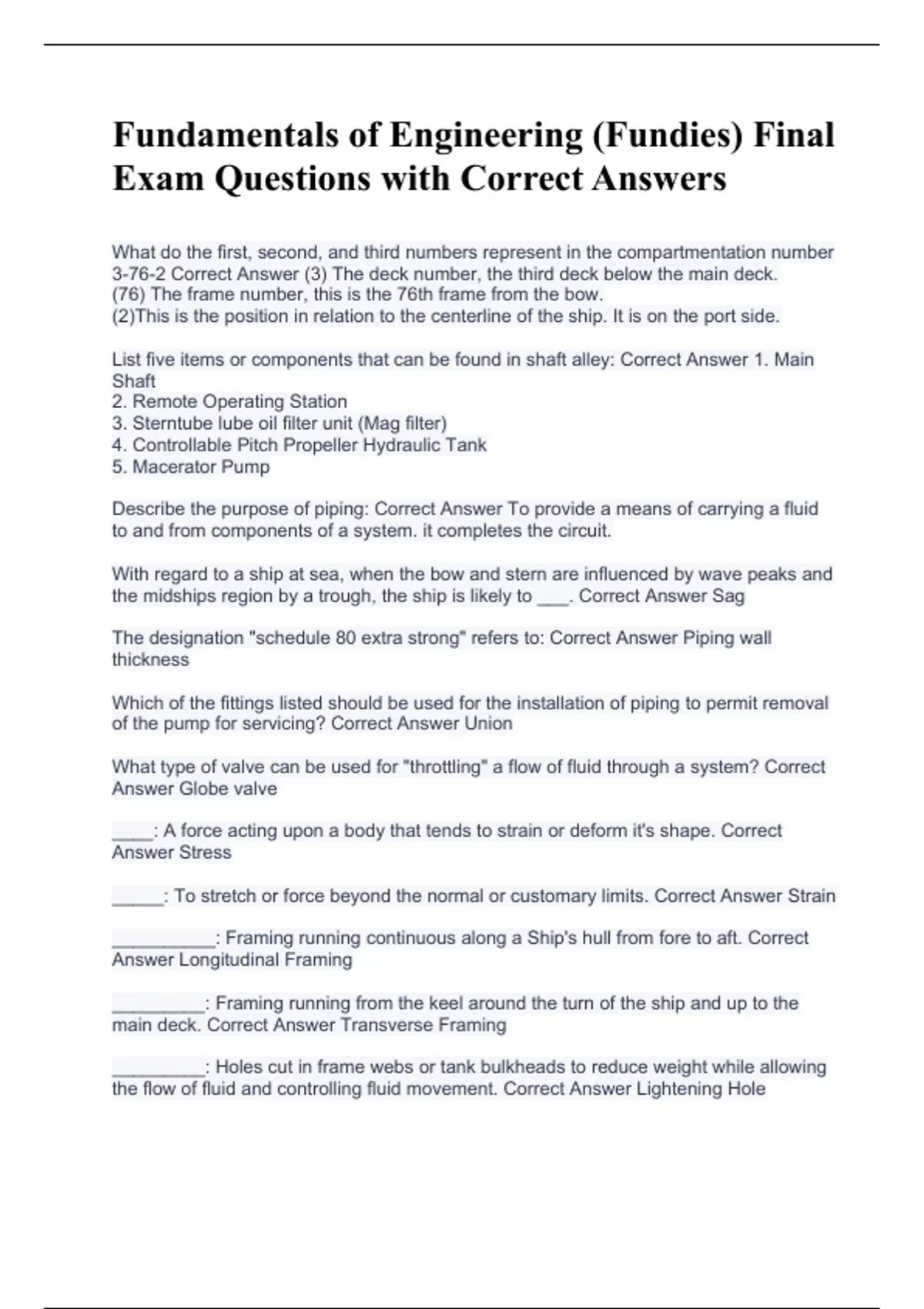

Fundamentals of Engineering (Fundies) Final Exam Questions with Correct Answers

What do the first, second, and third numbers represent in the compartmentation number 3-76-2 Correct Answer (3) The deck number, the third deck below the main deck. (76) The frame number, this is the 76th frame from the bow. (2)This is the position in relation to the centerline of the ship. It is on the port side. List five items or components that can be found in shaft alley: Correct Answer 1. Main Shaft 2. Remote Operating Station 3. Sterntube lube oil filter unit (Mag filter) 4. Controllable Pitch Propeller Hydraulic Tank 5. Macerator Pump Describe the purpose of piping: Correct Answer To provide a means of carrying a fluid to and from components of a system. it completes the circuit. With regard to a ship at sea, when the bow and stern are influenced by wave peaks and the midships region by a trough, the ship is likely to ___. Correct Answer Sag The designation "schedule 80 extra strong" refers to: Correct Answer Piping wall thickness Which of the fittings listed should be used for the installation of piping to permit removal of the pump for servicing? Correct Answer Union What type of valve can be used for "throttling" a flow of fluid through a system? Correct Answer Globe valve ____: A force acting upon a body that tends to strain or deform it's shape. Correct Answer Stress _____: To stretch or force beyond the normal or customary limits. Correct Answer Strain __________: Framing running continuous along a Ship's hull from fore to aft. Correct Answer Longitudinal Framing _________: Framing running from the keel around the turn of the ship and up to the main deck. Correct Answer Transverse Framing _________: Holes cut in frame webs or tank bulkheads to reduce weight while allowing the flow of fluid and controlling fluid movement. Correct Answer Lightening Hole
