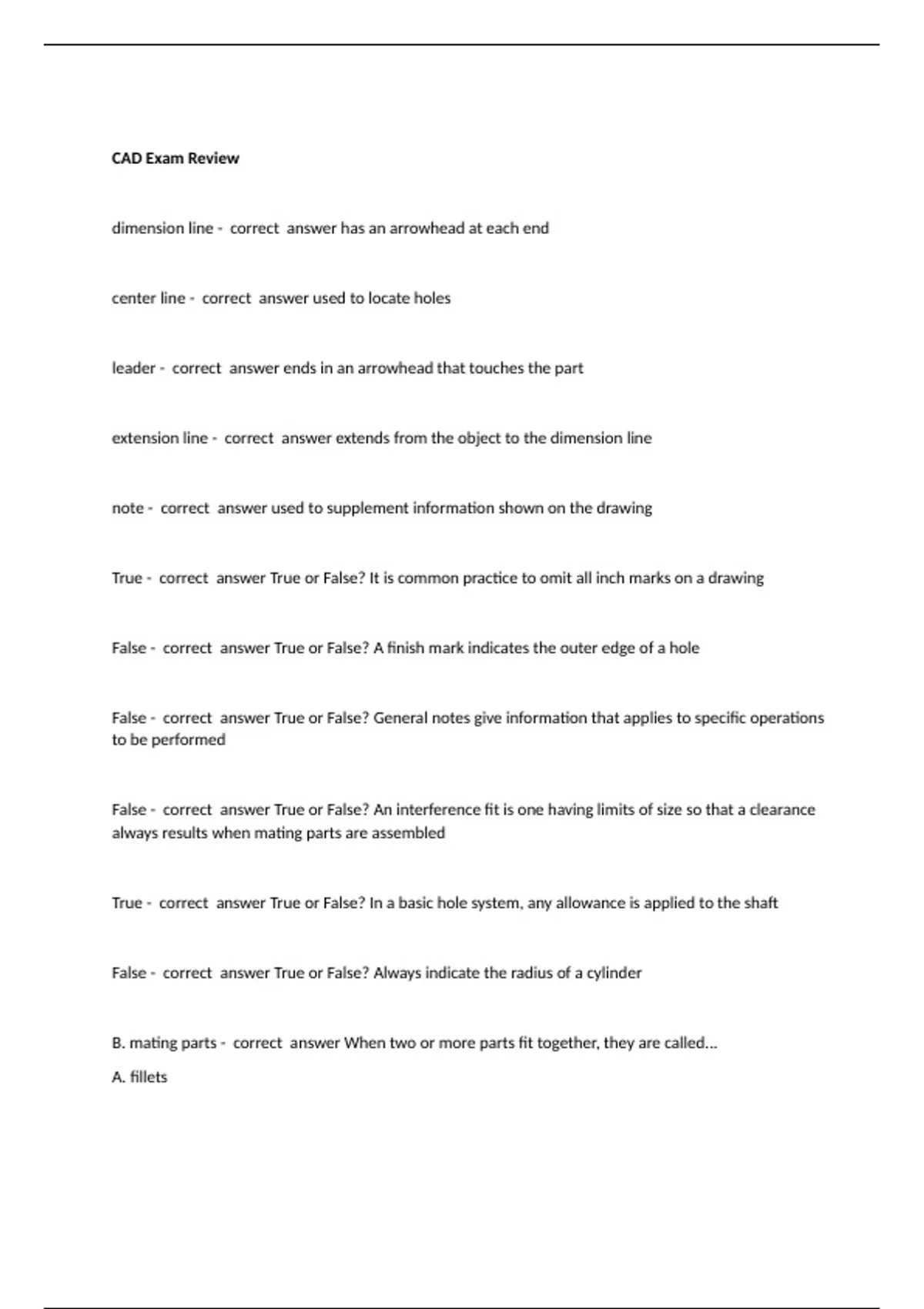

CAD Exam Review questions and 100% correct answers
dimension line - correct answer has an arrowhead at each end center line - correct answer used to locate holes leader - correct answer ends in an arrowhead that touches the part extension line - correct answer extends from the object to the dimension line note - correct answer used to supplement information shown on the drawing True - correct answer True or False? It is common practice to omit all inch marks on a drawing False - correct answer True or False? A finish mark indicates the outer edge of a hole False - correct answer True or False? General notes give information that applies to specific operations to be performed False - correct answer True or False? An interference fit is one having limits of size so that a clearance always results when mating parts are assembled True - correct answer True or False? In a basic hole system, any allowance is applied to the shaft False - correct answer True or False? Always indicate the radius of a cylinder B. mating parts - correct answer When two or more parts fit together, they are called... A. fillets
