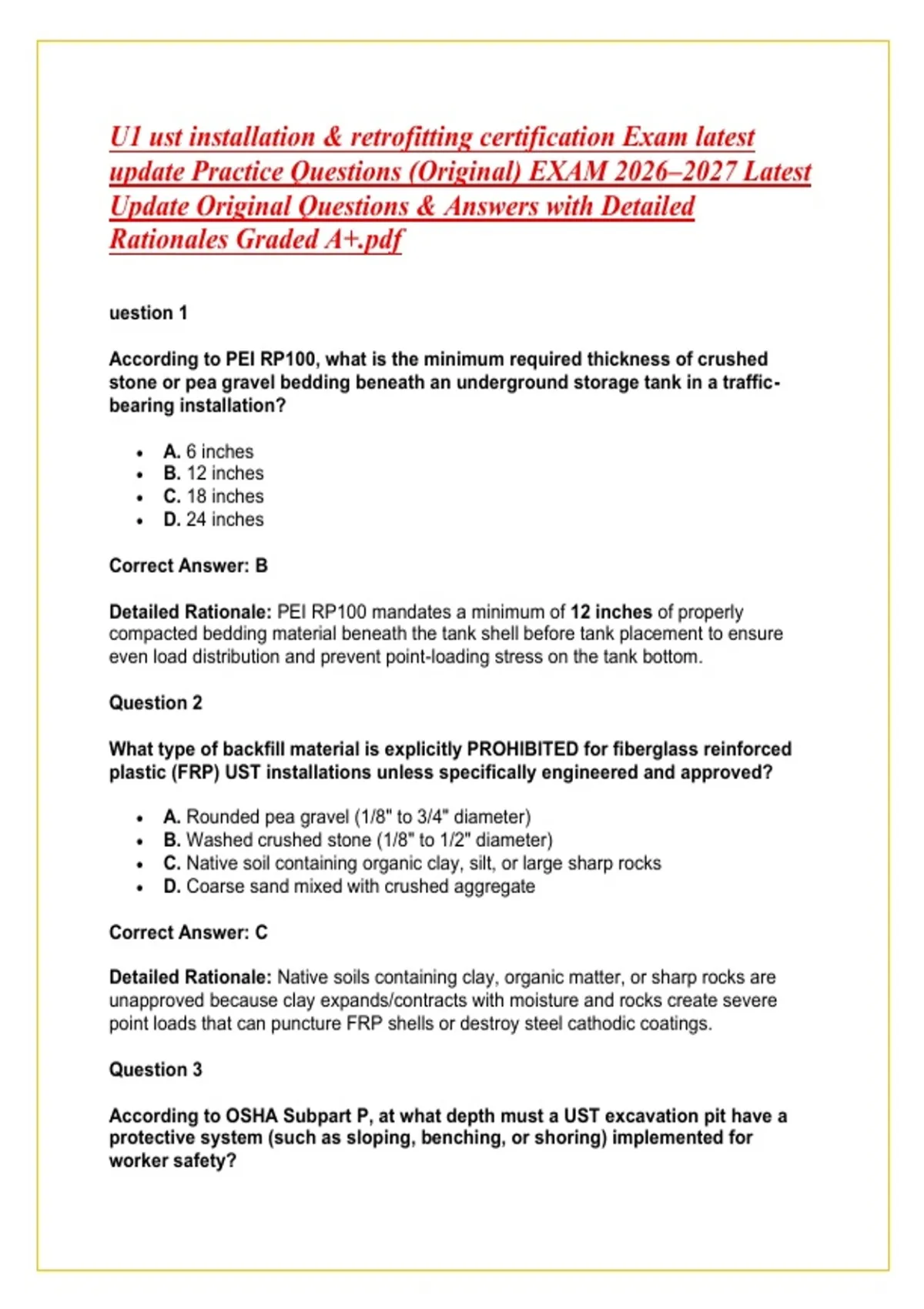

U1 ust installation & retrofitting certification Exam latest
update Practice Questions (Original) EXAM 2026–2027 Latest
Update Original Questions & Answers with Detailed
Rationales Graded A+.pdf
uestion 1
According to PEI RP100, what is the minimum required thickness of crushed
stone or pea gravel bedding beneath an underground storage tank in a traffic-
bearing installation?
• A. 6 inches
• B. 12 inches
• C. 18 inches
• D. 24 inches
Correct Answer: B
Detailed Rationale: PEI RP100 mandates a minimum of 12 inches of properly
compacted bedding material beneath the tank shell before tank placement to ensure
even load distribution and prevent point-loading stress on the tank bottom.
Question 2
What type of backfill material is explicitly PROHIBITED for fiberglass reinforced
plastic (FRP) UST installations unless specifically engineered and approved?
• A. Rounded pea gravel (1/8" to 3/4" diameter)
• B. Washed crushed stone (1/8" to 1/2" diameter)
• C. Native soil containing organic clay, silt, or large sharp rocks
• D. Coarse sand mixed with crushed aggregate
Correct Answer: C
Detailed Rationale: Native soils containing clay, organic matter, or sharp rocks are
unapproved because clay expands/contracts with moisture and rocks create severe
point loads that can puncture FRP shells or destroy steel cathodic coatings.
Question 3
According to OSHA Subpart P, at what depth must a UST excavation pit have a
protective system (such as sloping, benching, or shoring) implemented for
worker safety?
, • A. 3 feet or deeper
• B. 4 feet or deeper
• C. 5 feet or deeper
• D. 8 feet or deeper
Correct Answer: C
Detailed Rationale: OSHA 1926.652 requires protective systems (shoring, sloping, or
trench boxes) for all excavations 5 feet or deeper, unless the excavation is made
entirely in stable rock. (Note: Access/egress ladders are required at 4 feet).
Question 4
When installing multiple USTs side-by-side in a single excavation pit, what is the
minimum required clearance distance between adjacent tanks?
• A. 6 inches
• B. 12 inches (1 foot)
• C. 18 inches to 24 inches (2 feet)
• D. 4 feet
Correct Answer: C
Detailed Rationale: PEI RP100 specifies a minimum clearance of 18 to 24 inches
between adjacent tanks (and between tanks and excavation side walls) to allow
adequate space for backfill placement and proper compaction around the lower
quadrants ("haunches") of the tanks.
Question 5
Why is "haunching" (placing and compacting backfill beneath the lower curvature
of the tank) critical during UST installation?
• A. It prevents rainwater from reaching the tank top.
• B. It eliminates voids and provides continuous structural support along the
bottom curved quadrants of the tank to prevent shell sagging and seam failure.
• C. It increases the electrical conductivity of cathodic protection.
• D. It acts as a fire barrier.
Correct Answer: B
Detailed Rationale: The haunches (bottom 1/3 curve of the tank) carry the greatest
structural weight. Failing to properly place and tamp backfill into the haunch area leaves
empty voids that cause structural deformation, cracking, or ovality failure when the tank
is loaded.
, Question 6
Under PEI RP100, what is the maximum allowable out-of-level tolerance for an
installed UST?
• A. 1/8 inch total length
• B. 1 inch over the entire length of the tank (or per manufacturer specifications,
typically ≤ 1′′ end-to-end)
• C. 6 inches end-to-end
• D. Tanks do not need to be level.
Correct Answer: B
Detailed Rationale: Tanks must be level within strict limits (typically no more than 1
inch end-to-end and side-to-side) to ensure accurate mechanical inventory gauging,
proper ATG probe operation, and correct functioning of overfill prevention drop tubes.
Question 7
What is the minimum overburden (cover depth) required over a UST installed
under reinforced concrete paving subject to heavy traffic (ASHTO HS-20
loading)?
• A. 18 inches total (including 4" of concrete)
• B. 30 to 36 inches total (or 18" of backfill + 6" of reinforced concrete per PEI
RP100)
• C. 60 inches
• D. 12 inches total
Correct Answer: B
Detailed Rationale: Under traffic-bearing pavement, PEI RP100 requires a minimum of
18 inches of backfill plus 6 inches of reinforced concrete (or 36 inches of backfill
plus 4 inches of asphalt) over the top of the tank shell.
Question 8
When anchoring a UST in a high water table area using concrete hold-down pads
and straps, where must hold-down straps be placed?
• A. Anywhere along the tank body at random intervals
• B. Exclusively over the manufacturer-designated rib locations or designated
anchor points using non-conductive dielectric isolation pads
• C. Directly over pipe fittings and manways
• D. Wrapped around the fill pipe only
