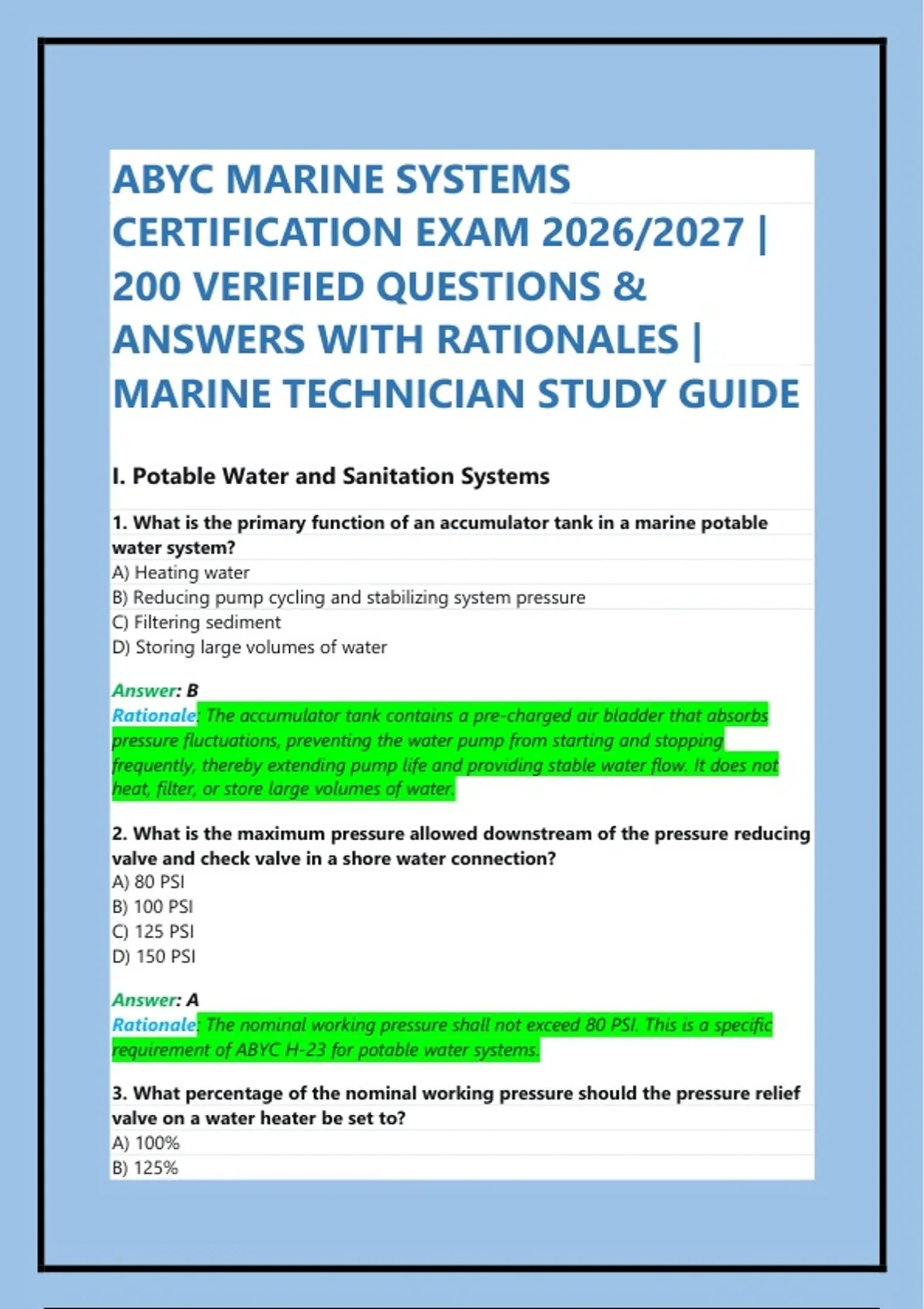

ABYC MARINE SYSTEMS
CERTIFICATION EXAM 2026/2027 |
200 VERIFIED QUESTIONS &
ANSWERS WITH RATIONALES |
MARINE TECHNICIAN STUDY GUIDE
I. Potable Water and Sanitation Systems
1. What is the primary function of an accumulator tank in a marine potable
water system?
A) Heating water
B) Reducing pump cycling and stabilizing system pressure
C) Filtering sediment
D) Storing large volumes of water
Answer: B
Rationale: The accumulator tank contains a pre-charged air bladder that absorbs
pressure fluctuations, preventing the water pump from starting and stopping
frequently, thereby extending pump life and providing stable water flow. It does not
heat, filter, or store large volumes of water.
2. What is the maximum pressure allowed downstream of the pressure reducing
valve and check valve in a shore water connection?
A) 80 PSI
B) 100 PSI
C) 125 PSI
D) 150 PSI
Answer: A
Rationale: The nominal working pressure shall not exceed 80 PSI. This is a specific
requirement of ABYC H-23 for potable water systems.
3. What percentage of the nominal working pressure should the pressure relief
valve on a water heater be set to?
A) 100%
B) 125%
,C) 175%
D) 200%
Answer: C
Rationale: The relief valve should be set at 175% of the nominal working pressure.
Standard household relief valves typically have opening pressures that are too high (up
to 400%) and are not suitable for marine water heaters.
4. What is the minimum static load that a seacock and thru-hull fitting must
withstand?
A) 250 lb
B) 350 lb
C) 500 lb
D) 750 lb
Answer: C
Rationale: ABYC requires that seacock and thru-hull fitting installations withstand a
static load of at least 500 lb applied in any direction to resist accidental side loads
(such as someone stepping on a connected hose) and prevent hull flooding.
5. What is the recommended chlorine concentration for disinfecting marine
potable water systems?
A) 10 ppm
B) 50 ppm
C) 100 ppm
D) 200 ppm
Answer: C
Rationale: ABYC recommends approximately 100 ppm chlorine concentration for
disinfecting potable water systems.
6. What happens if the holding tank vent is blocked during pump-out?
A) The pump will automatically stop
B) The holding tank may collapse inward
C) Waste will flow back into the toilet
D) The vent will open automatically
Answer: B
Rationale: When the holding tank is pumped out rapidly, air must enter through the
vent to equalize pressure. If the vent is blocked, kinked, or undersized, the vacuum
generated during pump-out will cause the tank walls to collapse inward.
,II. Electrical Systems (ABYC E-11)
7. What is the maximum unsupported length allowed for battery cables?
A) 12 inches
B) 24 inches
C) 36 inches
D) 48 inches
Answer: C
Rationale: ABYC E-11 requires battery cables to be supported at intervals not
exceeding 36 inches to prevent stress on terminals and abrasion damage caused by
vibration.
8. What is the maximum allowable voltage drop for a critical DC circuit such as
navigation lights?
A) 3%
B) 5%
C) 10%
D) 15%
Answer: A
Rationale: ABYC E-11 specifies that critical circuits (navigation lights, radios, electronic
equipment) shall not exceed 3% voltage drop; non-critical circuits may allow up to
10%.
9. What color is the DC negative conductor typically specified as in ABYC E-11?
A) Red
B) Black or yellow
C) Green
D) White
Answer: B
Rationale: ABYC specifies yellow or black for DC negative conductors to avoid
confusion with AC hot conductors and to distinguish them from AC grounding
conductors.
10. What is the primary function of a galvanic isolator?
A) Reducing shore power current
B) Preventing galvanic corrosion in the AC grounding path
C) Automatically disconnecting the battery
D) Increasing grounding resistance
Answer: B
Rationale: The galvanic isolator blocks low-level DC galvanic currents on the AC
, grounding conductor while allowing fault currents to pass, thereby preventing
corrosion while maintaining safety protection.
11. A technician is installing a 12V circuit with a continuous load of 30A using
12 AWG wire. What is the minimum rating of the overcurrent protection
device?
A) 15A
B) 20A
C) 30A
D) 37.5A
Answer: D
Rationale: ABYC requires overcurrent protection for circuits operating continuously for
more than 3 hours to be sized at 125% of the continuous load: 30A × 125% = 37.5A.
12. At what intervals should wire bundles be supported?
A) Every 12 inches
B) Every 18 inches
C) Every 24 inches
D) Every 36 inches
Answer: B
Rationale: Wire bundles should be supported approximately every 18 inches. Insulated
metal hanger clamps should be used when routing over engines and machinery.
13. What color is the AC neutral conductor in marine wiring?
A) Red
B) Black
C) White
D) Green
Answer: C
Rationale: AC neutral is white; hot conductors are black or red; grounding conductors
are green or bare.
III. Fuel Systems
14. Where should the fuel tank vent termination be located?
A) Inside the engine compartment
B) In the bilge
C) Outboard in open air, away from any openings
D) Near the fuel fill deck plate
