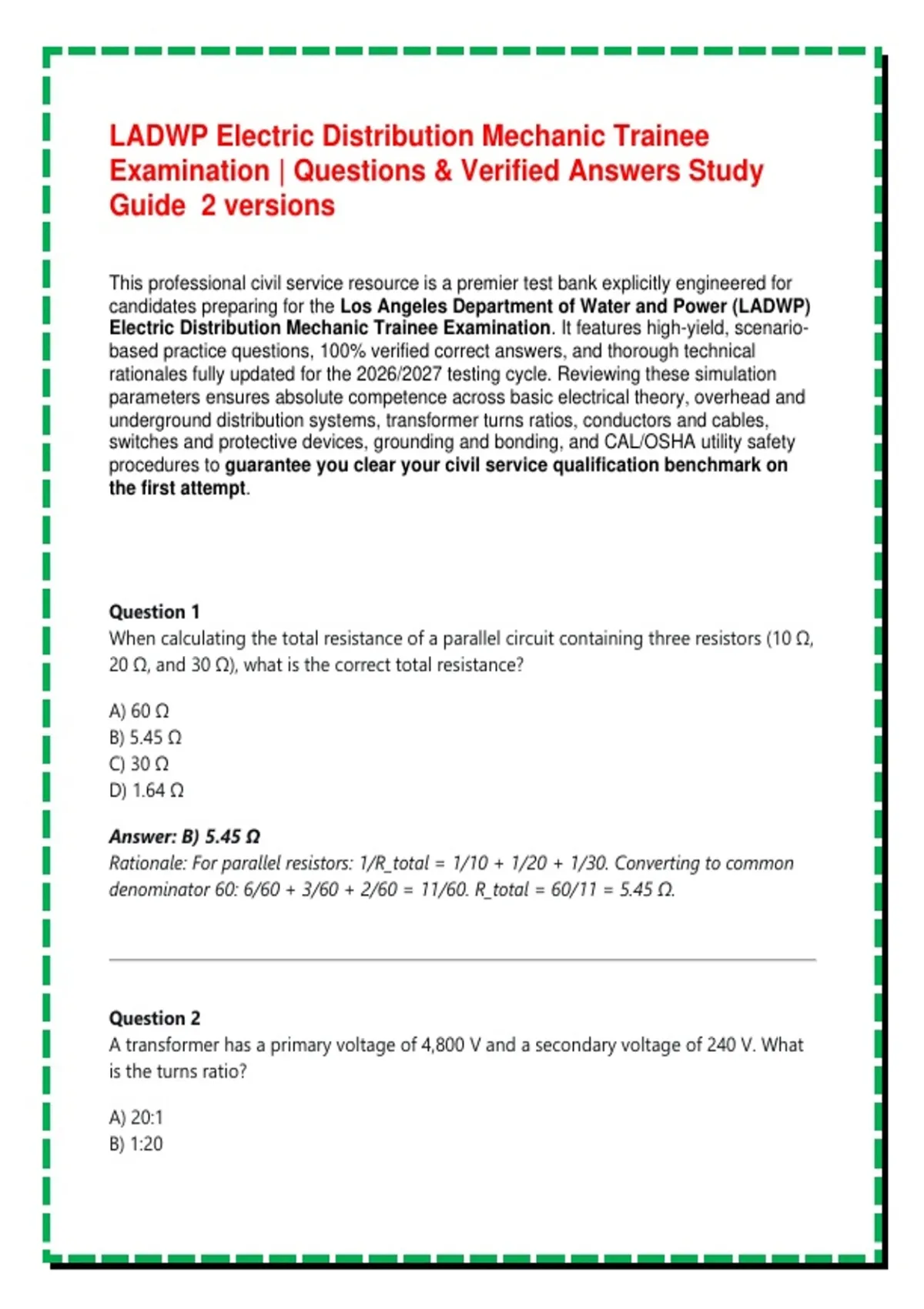

LADWP Electric Distribution Mechanic Trainee
Examination | Questions & Verified Answers Study
Guide 2 versions
This professional civil service resource is a premier test bank explicitly engineered for
candidates preparing for the Los Angeles Department of Water and Power (LADWP)
Electric Distribution Mechanic Trainee Examination. It features high-yield, scenario-
based practice questions, 100% verified correct answers, and thorough technical
rationales fully updated for the 2026/2027 testing cycle. Reviewing these simulation
parameters ensures absolute competence across basic electrical theory, overhead and
underground distribution systems, transformer turns ratios, conductors and cables,
switches and protective devices, grounding and bonding, and CAL/OSHA utility safety
procedures to guarantee you clear your civil service qualification benchmark on
the first attempt.
Question 1
When calculating the total resistance of a parallel circuit containing three resistors (10 Ω,
20 Ω, and 30 Ω), what is the correct total resistance?
A) 60 Ω
B) 5.45 Ω
C) 30 Ω
D) 1.64 Ω
Answer: B) 5.45 Ω
Rationale: For parallel resistors: 1/R_total = 1/10 + 1/20 + 1/30. Converting to common
denominator 60: 6/60 + 3/60 + 2/60 = 11/60. R_total = 60/11 = 5.45 Ω.
Question 2
A transformer has a primary voltage of 4,800 V and a secondary voltage of 240 V. What
is the turns ratio?
A) 20:1
B) 1:20
,C) 10:1
D) 1:10
Answer: A) 20:1
Rationale: Turns ratio = Primary voltage / Secondary voltage = 4800 V / 240 V = 20:1.
This is a step-down transformer.
Question 3
In a three-phase system, what is the primary advantage of a wye-connected transformer
over a delta-connected transformer?
A) Higher voltage output
B) Neutral point available for grounding and single-phase loads
C) Lower cost
D) Simpler construction
Answer: B) Neutral point available for grounding and single-phase loads
Rationale: A wye connection provides a neutral point that can be grounded and used for
single-phase loads, while a delta connection does not have a neutral point.
Question 4
What is the minimum approach distance for a qualified electrical worker to exposed
energized parts at 4,160 volts, per OSHA standards?
A) 2 feet, 2 inches
B) 1 foot, 8 inches
C) 3 feet
D) 5 feet
Answer: A) 2 feet, 2 inches
Rationale: For voltages between 1 kV and 5 kV, the minimum approach distance is 2 feet,
2 inches for qualified workers, as specified in OSHA 1910.269.
,Question 5
When performing a phasing check between two different power sources, what
instrument is specifically designed for this task?
A) Megohmmeter
B) Phasing sticks
C) Clamp meter
D) Ohmmeter
Answer: B) Phasing sticks
Rationale: Phasing sticks are high-voltage instruments used to verify that two separate
power sources are in phase before paralleling them. Using other instruments could result
in dangerous short circuits.
Question 6
What is the primary purpose of a "hot line clamp" in distribution work?
A) To temporarily connect a jumper to an energized conductor
B) To measure voltage
C) To cut conductors
D) To insulate conductors
Answer: A) To temporarily connect a jumper to an energized conductor
Rationale: A hot line clamp is a live-line tool used to temporarily connect jumper wires to
energized conductors without de-energizing the circuit.
Question 7
A conductor with a larger cross-sectional area will have:
A) Higher resistance
B) Lower resistance
C) The same resistance
D) Infinite resistance
, Answer: B) Lower resistance
Rationale: Resistance is inversely proportional to cross-sectional area (R = ρL/A). A larger
area means lower resistance.
Question 8
What is the purpose of a "loadbuster" tool in distribution operations?
A) To measure load current
B) To interrupt load current on a line without causing an arc
C) To lift heavy equipment
D) To test insulation
Answer: B) To interrupt load current on a line without causing an arc
Rationale: A loadbuster is a portable load-break tool used to safely interrupt load current
on distribution lines, preventing dangerous arcs.
Question 9
What is the minimum bending radius for a cable with a diameter of 2 inches, typically
specified as a multiple of the cable diameter?
A) 6 times the diameter
B) 8 times the diameter
C) 12 times the diameter
D) 20 times the diameter
Answer: C) 12 times the diameter
Rationale: For many distribution cables, the minimum bending radius is approximately 12
times the cable diameter, though this can vary by cable type and manufacturer.
Question 10
What is the primary purpose of a cable pulling lubricant?
