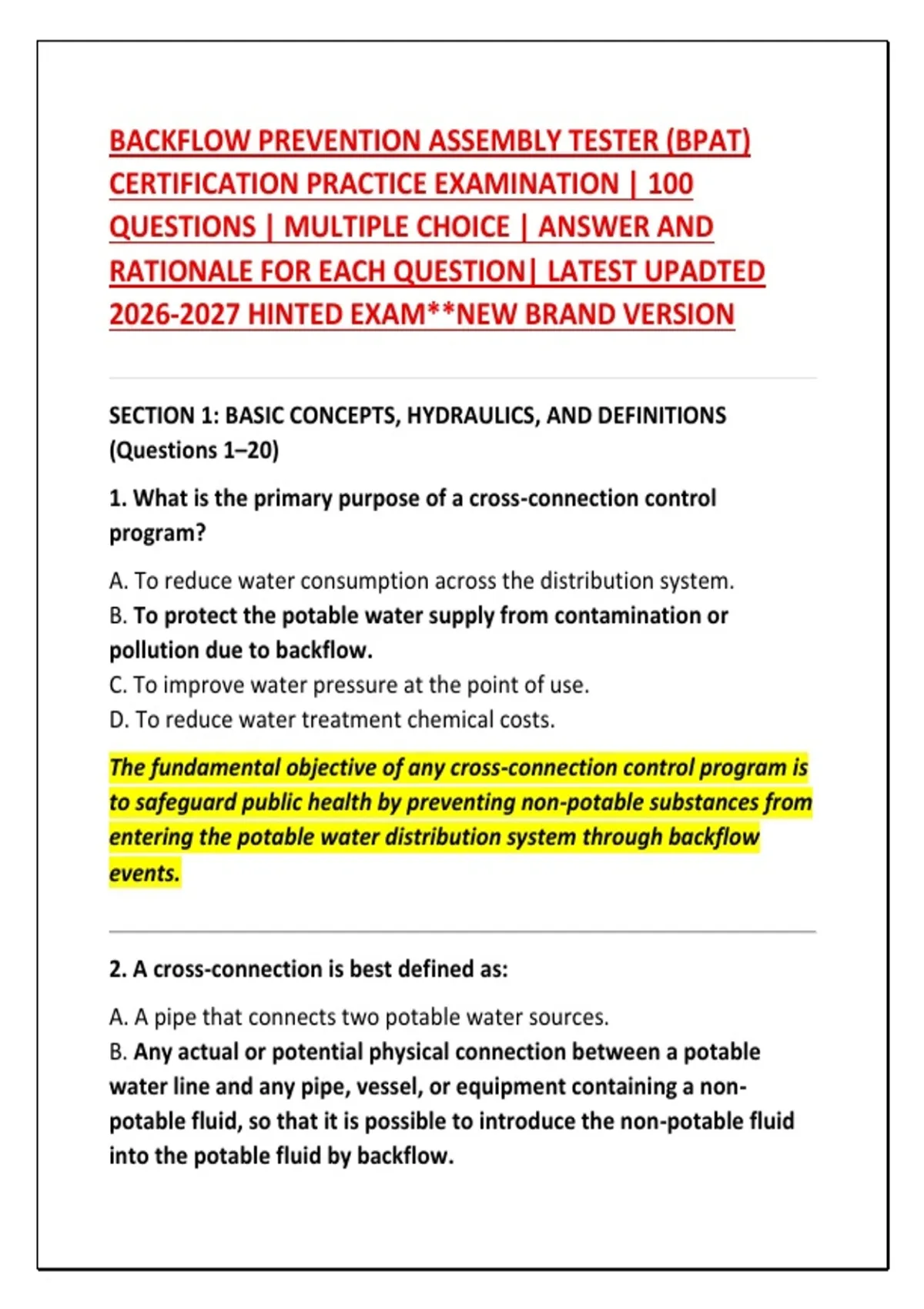

BACKFLOW PREVENTION ASSEMBLY TESTER (BPAT)
CERTIFICATION PRACTICE EXAMINATION | 100
QUESTIONS | MULTIPLE CHOICE | ANSWER AND
RATIONALE FOR EACH QUESTION| LATEST UPADTED
2026-2027 HINTED EXAM**NEW BRAND VERSION
SECTION 1: BASIC CONCEPTS, HYDRAULICS, AND DEFINITIONS
(Questions 1–20)
1. What is the primary purpose of a cross-connection control
program?
A. To reduce water consumption across the distribution system.
B. To protect the potable water supply from contamination or
pollution due to backflow.
C. To improve water pressure at the point of use.
D. To reduce water treatment chemical costs.
The fundamental objective of any cross-connection control program is
to safeguard public health by preventing non-potable substances from
entering the potable water distribution system through backflow
events.
2. A cross-connection is best defined as:
A. A pipe that connects two potable water sources.
B. Any actual or potential physical connection between a potable
water line and any pipe, vessel, or equipment containing a non-
potable fluid, so that it is possible to introduce the non-potable fluid
into the potable fluid by backflow.
,C. A valve that controls the direction of water flow.
D. A connection between two different water meters.
This definition encompasses both actual cross-connections (physical
connections that exist) and potential cross-connections (situations
where a connection could occur, such as a hose bib with a submerged
hose).
3. Which two conditions can cause backflow in a water distribution
system?
A. Backpressure and capillary action.
B. Backpressure and backsiphonage.
C. Backsiphonage and thermal expansion.
D. Isolation and containment.
Backpressure occurs when downstream pressure exceeds supply
pressure, while backsiphonage results from negative pressure (partial
vacuum) in the supply piping. These are the only two mechanisms that
cause backflow.
4. Backsiphonage is most directly caused by:
A. A booster pump raising downstream pressure above supply pressure.
B. Negative pressure (partial vacuum) in the supply piping system.
C. Thermal expansion of water in a closed system.
D. A check valve failing to close.
Backsiphonage occurs when a negative pressure condition develops in
the potable water supply, creating a siphon effect that pulls non-
potable substances into the potable system. Common causes include
water main breaks, fire hydrant use, and high-demand periods.
,5. In a backpressure condition, all pressures in the system are:
A. Below atmospheric pressure.
B. At atmospheric pressure.
C. Above atmospheric pressure.
D. At absolute zero.
During backpressure, the downstream pressure exceeds the supply
pressure, but both pressures remain above atmospheric pressure. This
distinguishes backpressure from backsiphonage, where a negative
pressure (below atmospheric) exists in the supply line.
6. What is the pressure at the base of a 50-foot standpipe filled with
water?
A. 10.8 psi
B. 21.65 psi
C. 50.0 psi
D. 14.7 psi
A column of water exerts 0.433 psi per foot of height. Therefore, 50
feet × 0.433 psi/ft = 21.65 psi. This hydraulic principle is essential for
understanding how elevation affects backflow potential.
7. Absolute pressure is calculated as:
A. Gauge pressure minus atmospheric pressure.
B. Gauge pressure plus atmospheric pressure.
C. Gauge pressure multiplied by atmospheric pressure.
D. Atmospheric pressure divided by gauge pressure.
, Absolute pressure = gauge pressure + atmospheric pressure (14.7 psi
at sea level). Gauge pressure uses atmospheric pressure as its zero
reference point, while absolute pressure uses a perfect vacuum as its
zero reference.
8. A vacuum is defined as:
A. Any pressure above atmospheric pressure.
B. Pressure below atmospheric pressure.
C. Pressure equal to atmospheric pressure.
D. Pressure measured in absolute terms only.
A vacuum encompasses all degrees of partial vacuum, from slightly
below atmospheric pressure to a perfect vacuum (0 psia).
Backsiphonage occurs when a vacuum develops in the supply piping.
9. The difference between pollution and contamination is:
A. Pollution is more hazardous than contamination.
B. Pollution renders water unfit for its intended use, while
contamination renders water unsafe for human consumption.
C. Contamination only applies to chemical hazards.
D. There is no practical difference between the two terms.
Pollution involves substances that degrade water quality but may not
cause immediate health effects. Contamination involves substances
that pose a direct health hazard if consumed. This distinction
determines the degree of hazard and the level of backflow protection
required.
