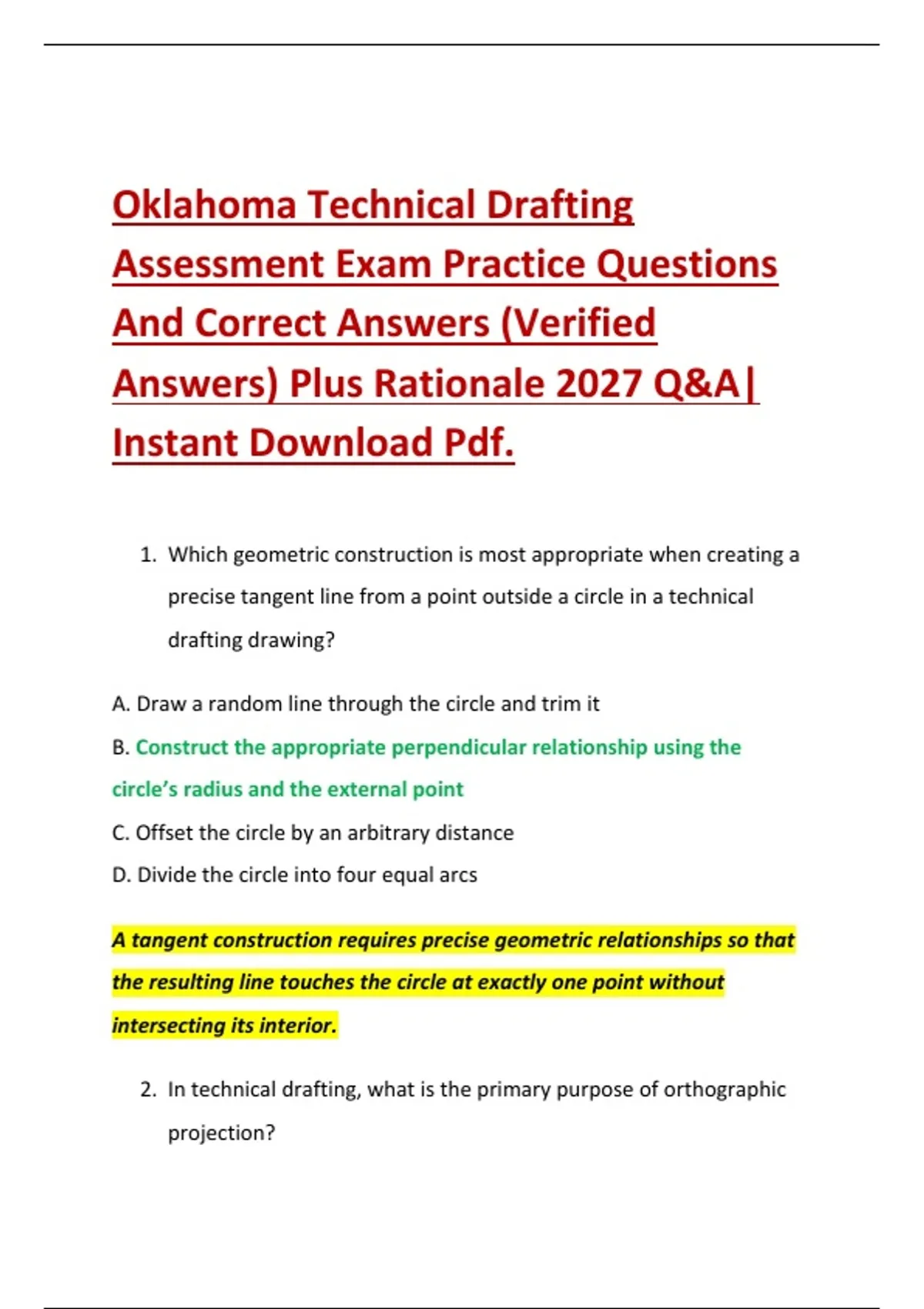

1. Which geometric construction is most appropriate when creating a
precise tangent line from a point outside a circle in a technical
drafting drawing?
A. Draw a random line through the circle and trim it
B. Construct the appropriate perpendicular relationship using the
circle’s radius and the external point
C. Offset the circle by an arbitrary distance
D. Divide the circle into four equal arcs
A tangent construction requires precise geometric relationships so that
the resulting line touches the circle at exactly one point without
intersecting its interior.
2. In technical drafting, what is the primary purpose of orthographic
projection?
,A. To create a photorealistic rendering
B. To show only the top surface of an object
C. To represent an object accurately through multiple two-dimensional
views
D. To eliminate the need for dimensions
Orthographic projection communicates the shape and size of a three-
dimensional object through coordinated views such as front, top, and
right-side views.
3. When creating a standard front view of a mechanical component,
which feature should generally determine the orientation of the
object?
A. The smallest surface
B. The surface containing the fewest dimensions
C. The view that best describes the object’s shape and functional
features
D. The surface closest to the drawing border
The front view should provide the clearest representation of the object,
minimizing hidden lines and communicating its important features
effectively.
4. What is the principal function of an object line in a technical
drawing?
,A. To indicate a hidden edge
B. To identify a centerline
C. To represent visible edges and contours of an object
D. To indicate an imaginary cutting plane
Object lines identify visible boundaries and edges and are normally
drawn with a heavier continuous line weight than many other drafting
lines.
5. Which line type is normally used to represent an edge or feature
that cannot be seen directly in a particular view?
A. Centerline
B. Dimension line
C. Construction line
D. Hidden line
Hidden lines conventionally use short, evenly spaced dashes to
communicate features that exist behind visible surfaces.
6. What is the purpose of a centerline in technical drafting?
A. To indicate surface roughness
B. To represent a hidden edge
C. To identify the center, axis, or plane of symmetry of a feature
D. To indicate the maximum allowable dimension
, Centerlines establish axes and centers of circular, cylindrical,
symmetrical, or rotational features and assist with accurate
dimensioning.
7. Which drawing scale represents an object at twice its actual size?
A. 1:2
B. 1:1
C. 2:1
D. 1:20
A 2:1 scale means that two units on the drawing represent one unit on
the actual object, producing a drawing twice the physical size.
8. A technical drawing is prepared at a scale of 1:4. If a feature
measures 25 mm on the drawing, what is its actual size?
A. 6.25 mm
B. 25 mm
C. 50 mm
D. 100 mm
At a 1:4 scale, the drawing represents one-fourth of the actual size, so
25 mm on the drawing corresponds to 25 × 4 = 100 mm.
9. Which dimensioning practice most directly reduces the possibility
of manufacturing ambiguity?
