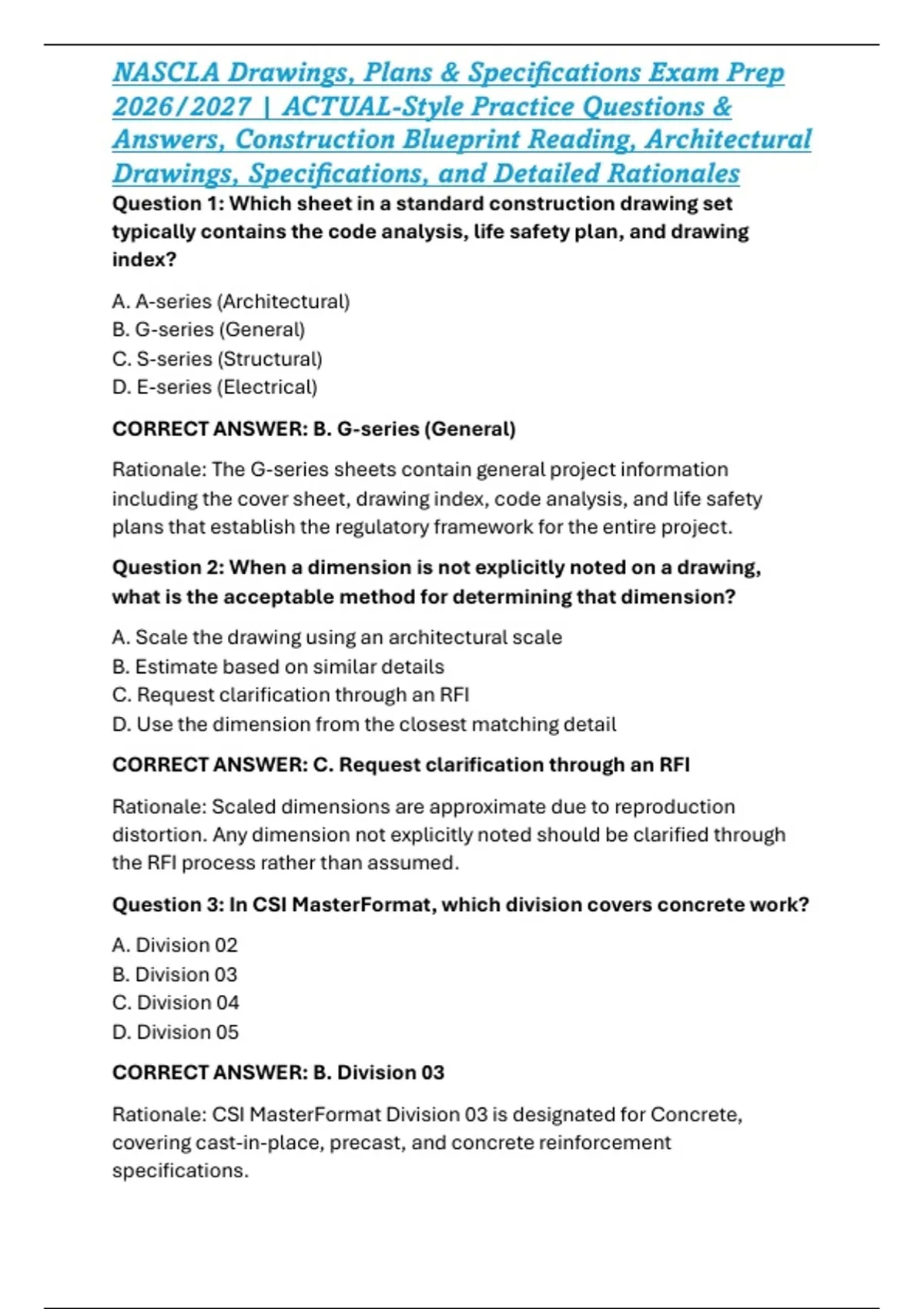

NASCLA Drawings, Plans & Specifications Exam Prep
2026/2027 | ACTUAL-Style Practice Questions &
Answers, Construction Blueprint Reading, Architectural
Drawings, Specifications, and Detailed Rationales
Question 1: Which sheet in a standard construction drawing set
typically contains the code analysis, life safety plan, and drawing
index?
A. A-series (Architectural)
B. G-series (General)
C. S-series (Structural)
D. E-series (Electrical)
CORRECT ANSWER: B. G-series (General)
Rationale: The G-series sheets contain general project information
including the cover sheet, drawing index, code analysis, and life safety
plans that establish the regulatory framework for the entire project.
Question 2: When a dimension is not explicitly noted on a drawing,
what is the acceptable method for determining that dimension?
A. Scale the drawing using an architectural scale
B. Estimate based on similar details
C. Request clarification through an RFI
D. Use the dimension from the closest matching detail
CORRECT ANSWER: C. Request clarification through an RFI
Rationale: Scaled dimensions are approximate due to reproduction
distortion. Any dimension not explicitly noted should be clarified through
the RFI process rather than assumed.
Question 3: In CSI MasterFormat, which division covers concrete work?
A. Division 02
B. Division 03
C. Division 04
D. Division 05
CORRECT ANSWER: B. Division 03
Rationale: CSI MasterFormat Division 03 is designated for Concrete,
covering cast-in-place, precast, and concrete reinforcement
specifications.
,Question 4: What does the abbreviation "AFF" indicate on an
architectural drawing?
A. Above Finished Floor
B. Approved Fire Finish
C. Architectural Framing Foundation
D. As-Found Footing
CORRECT ANSWER: A. Above Finished Floor
Rationale: AFF is a standard construction abbreviation indicating mounting
heights measured from the finished floor surface.
Question 5: Which specification section format organizes content into
General, Products, and Execution parts?
A. MasterFormat
B. SectionFormat
C. PageFormat
D. SpecFormat
CORRECT ANSWER: B. SectionFormat
Rationale: CSI SectionFormat divides individual specification sections into
three parts: Part 1 General, Part 2 Products, and Part 3 Execution.
Question 6: What is the primary purpose of a key plan on a construction
drawing?
A. To show the location of the project within a larger geographic area
B. To identify the sequence of construction activities
C. To indicate the location of the work area within the overall project
D. To provide a schedule of all drawing sheets
CORRECT ANSWER: C. To indicate the location of the work area within
the overall project
Rationale: Key plans are small locator diagrams that show where a specific
area of work is situated within the larger building or site.
Question 7: In a set of contract documents, which document generally
governs for quality of materials when a conflict exists between
drawings and specifications?
,A. The drawings
B. The specifications
C. The schedule
D. The contractor's proposal
CORRECT ANSWER: B. The specifications
Rationale: Per standard order of precedence clauses, specifications
generally govern over drawings for matters of material quality and
workmanship standards.
Question 8: What does a "section view" on a construction drawing
show?
A. The exterior elevation of a building
B. The horizontal layout of a floor
C. A cut-through of an object showing internal construction
D. The roof plan of a structure
CORRECT ANSWER: C. A cut-through of an object showing internal
construction
Rationale: A section view represents an object as if it were sliced to reveal
internal relationships and construction details.
Question 9: Which line type on a drawing indicates an object that is
above or below the cut plane?
A. Object line
B. Hidden line
C. Center line
D. Dimension line
CORRECT ANSWER: B. Hidden line
Rationale: Hidden lines (dashed lines) represent edges or objects that are
not visible in the current view because they are concealed or above/below
the cut plane.
Question 10: What information is typically found on a door schedule?
A. Painting specifications for doors
B. Door size, type, material, and hardware set
, C. Installation labor rates
D. Manufacturer contact information
CORRECT ANSWER: B. Door size, type, material, and hardware set
Rationale: Door schedules provide a tabular listing of each door with its
mark number, dimensions, material, fire rating, and hardware
requirements.
Question 11: What does the symbol "WP" indicate when found next to
an electrical device on a plan?
A. Wire Pull
B. Weatherproof
C. Wall Panel
D. Wattage Protected
CORRECT ANSWER: B. Weatherproof
Rationale: WP is the standard abbreviation for weatherproof, indicating
devices rated for wet or damp locations.
Question 12: When a drawing is labeled "1/4" = 1'-0"", what does one
inch on the drawing represent in actual construction?
A. 2 feet
B. 4 feet
C. 8 feet
D. 12 feet
CORRECT ANSWER: B. 4 feet
Rationale: At a scale of 1/4" = 1'-0", one-quarter inch represents one foot,
therefore one full inch represents four feet.
Question 13: Which CSI MasterFormat division covers thermal and
moisture protection?
A. Division 05
B. Division 06
C. Division 07
D. Division 08
CORRECT ANSWER: C. Division 07
