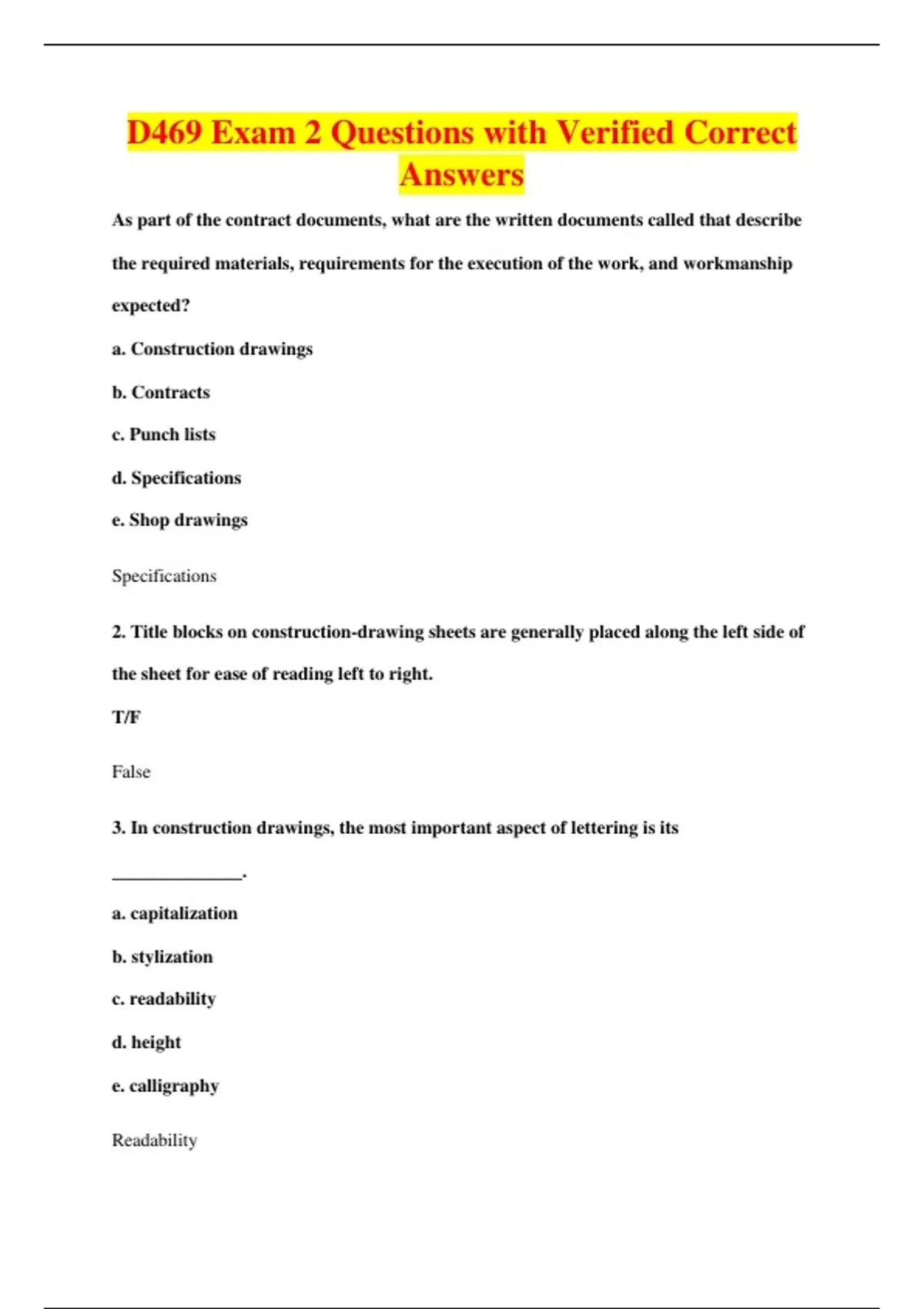

D469 Exam 2 Questions with Verified Correct
Answers
As part of the contract documents, what are the written documents called that describe
the required materials, requirements for the execution of the work, and workmanship
expected?
a. Construction drawings
b. Contracts
c. Punch lists
d. Specifications
e. Shop drawings
Specifications
2. Title blocks on construction-drawing sheets are generally placed along the left side of
the sheet for ease of reading left to right.
T/F
False
3. In construction drawings, the most important aspect of lettering is its
______________.
a. capitalization
b. stylization
c. readability
d. height
e. calligraphy
Readability
,4. The use of modular components in building construction is a common practice, as
many of the components are manufactured in standard sizes, such as 16-, 24-, and
___________ (40.6-, 60.9-, and _______cm).
a. 48-inch (121.9-cm)
b. 30-inch (76.2-cm)
c. 18-inch (45.7-cm)
d. 15-inch (38.1-cm)
e. 9-inch (22.8-cm)
a. 48-inch (121.9-cm)
5. Construction drawing legends combine graphic symbols with notes and are used on
what type of drawings?
a. floor plans
b. furniture plans
c. electrical plans
d. lighting plans
e. a and b only
f. c and d only
g. all of the above
g. all of the above
6. In a building project, various contractual agreements are needed between the parties
involved in order to detail each party's responsibilities.
a. True
b. False
a. True
,7. For bidding purposes, specifications are referred to as "closed" or "open". "Closed"
means _____ product can be used on the project other than what is specified.
a. a replacement
b. a and d only
c. any
d. a substituted
e. no
e. no
8. Sometimes a designer will require the client to pay them a "retainer" (a sum of
money) at the beginning of a project. The usual retainer is what percent of the total
fees?
a. 2
b. 5
c. 10
d. 15
e. 20
c. 10
9. What is the most common method of dimensioning, which is advantageous because it
most closely follows the construction sequence in the field and informs the particular
trades of dimensions that are the most important to their area of construction?
a. abbreviated
b. framing
c. additive
, d. finished face
e. centerline
b. framing
10. A good practice, to give an overview of the sequence of sheets and their individual
contents before the construction drawings are drafted up, is to first create a
______________ set of construction drawings.
a. bound
b. shop drawings
c. PowerPoint
d. mock-up
e. specification
d. mock-up
1. When drafting a demolition plan(s), in order to allow the viewer to ascertain the scale
of objects and features, it is generally drawn ________________ as the floor plans.
a. at half the scale
b. the same scale
c. at twice the scaled as a reversed image
d. three times the scale
b. the same scale
2. When no former plans exist of a building or interior space to be renovated, new
drawings must be made through a process commonly called _______.
a. replacement measurements
b. preliminary measurements
Answers
As part of the contract documents, what are the written documents called that describe
the required materials, requirements for the execution of the work, and workmanship
expected?
a. Construction drawings
b. Contracts
c. Punch lists
d. Specifications
e. Shop drawings
Specifications
2. Title blocks on construction-drawing sheets are generally placed along the left side of
the sheet for ease of reading left to right.
T/F
False
3. In construction drawings, the most important aspect of lettering is its
______________.
a. capitalization
b. stylization
c. readability
d. height
e. calligraphy
Readability
,4. The use of modular components in building construction is a common practice, as
many of the components are manufactured in standard sizes, such as 16-, 24-, and
___________ (40.6-, 60.9-, and _______cm).
a. 48-inch (121.9-cm)
b. 30-inch (76.2-cm)
c. 18-inch (45.7-cm)
d. 15-inch (38.1-cm)
e. 9-inch (22.8-cm)
a. 48-inch (121.9-cm)
5. Construction drawing legends combine graphic symbols with notes and are used on
what type of drawings?
a. floor plans
b. furniture plans
c. electrical plans
d. lighting plans
e. a and b only
f. c and d only
g. all of the above
g. all of the above
6. In a building project, various contractual agreements are needed between the parties
involved in order to detail each party's responsibilities.
a. True
b. False
a. True
,7. For bidding purposes, specifications are referred to as "closed" or "open". "Closed"
means _____ product can be used on the project other than what is specified.
a. a replacement
b. a and d only
c. any
d. a substituted
e. no
e. no
8. Sometimes a designer will require the client to pay them a "retainer" (a sum of
money) at the beginning of a project. The usual retainer is what percent of the total
fees?
a. 2
b. 5
c. 10
d. 15
e. 20
c. 10
9. What is the most common method of dimensioning, which is advantageous because it
most closely follows the construction sequence in the field and informs the particular
trades of dimensions that are the most important to their area of construction?
a. abbreviated
b. framing
c. additive
, d. finished face
e. centerline
b. framing
10. A good practice, to give an overview of the sequence of sheets and their individual
contents before the construction drawings are drafted up, is to first create a
______________ set of construction drawings.
a. bound
b. shop drawings
c. PowerPoint
d. mock-up
e. specification
d. mock-up
1. When drafting a demolition plan(s), in order to allow the viewer to ascertain the scale
of objects and features, it is generally drawn ________________ as the floor plans.
a. at half the scale
b. the same scale
c. at twice the scaled as a reversed image
d. three times the scale
b. the same scale
2. When no former plans exist of a building or interior space to be renovated, new
drawings must be made through a process commonly called _______.
a. replacement measurements
b. preliminary measurements
