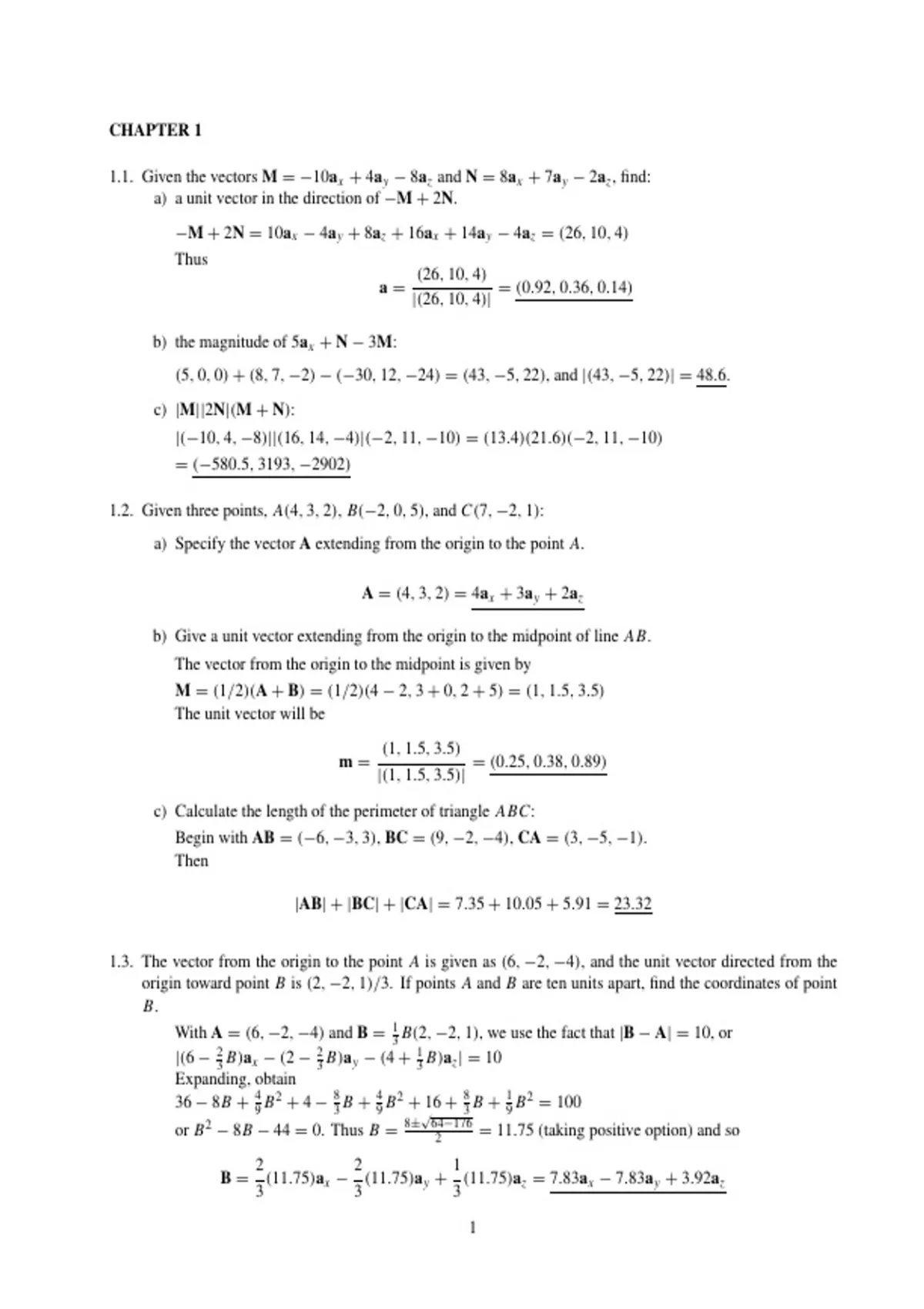

CHAPTER 1

1.1. Given the vectors M = −10ax + 4ay − 8az and N = 8ax + 7ay − 2az , find:
a) a unit vector in the direction of −M + 2N.
−M + 2N = 10ax − 4ay + 8az + 16ax + 14ay − 4az = (26, 10, 4)
Thus
(26, 10, 4)
a= = (0.92, 0.36, 0.14)
|(26, 10, 4)|

b) the magnitude of 5ax + N − 3M:
(5, 0, 0) + (8, 7, −2) − (−30, 12, −24) = (43, −5, 22), and |(43, −5, 22)| = 48.6.
c) |M||2N|(M + N):
|(−10, 4, −8)||(16, 14, −4)|(−2, 11, −10) = (13.4)(21.6)(−2, 11, −10)
= (−580.5, 3193, −2902)

1.2. Given three points, A(4, 3, 2), B(−2, 0, 5), and C(7, −2, 1):
a) Specify the vector A extending from the origin to the point A.

A = (4, 3, 2) = 4ax + 3ay + 2az

b) Give a unit vector extending from the origin to the midpoint of line AB.
The vector from the origin to the midpoint is given by
M = (1/2)(A + B) = (1/2)(4 − 2, 3 + 0, 2 + 5) = (1, 1.5, 3.5)
The unit vector will be
(1, 1.5, 3.5)
m= = (0.25, 0.38, 0.89)
|(1, 1.5, 3.5)|
c) Calculate the length of the perimeter of triangle ABC:
Begin with AB = (−6, −3, 3), BC = (9, −2, −4), CA = (3, −5, −1).
Then

|AB| + |BC| + |CA| = 7.35 + 10.05 + 5.91 = 23.32


1.3. The vector from the origin to the point A is given as (6, −2, −4), and the unit vector directed from the
origin toward point B is (2, −2, 1)/3. If points A and B are ten units apart, find the coordinates of point
B.
With A = (6, −2, −4) and B = 31 B(2, −2, 1), we use the fact that |B − A| = 10, or
|(6 − 23 B)ax − (2 − 23 B)ay − (4 + 31 B)az | = 10
Expanding, obtain
36 − 8B + 49 B 2 + 4 − 83 B + 49 B 2 + 16 + 83 B + 19 B 2 = 100
√
8± 64−176
or B 2 − 8B − 44 = 0. Thus B = 2 = 11.75 (taking positive option) and so
2 2 1
B= (11.75)ax − (11.75)ay + (11.75)az = 7.83ax − 7.83ay + 3.92az
3 3 3

1
