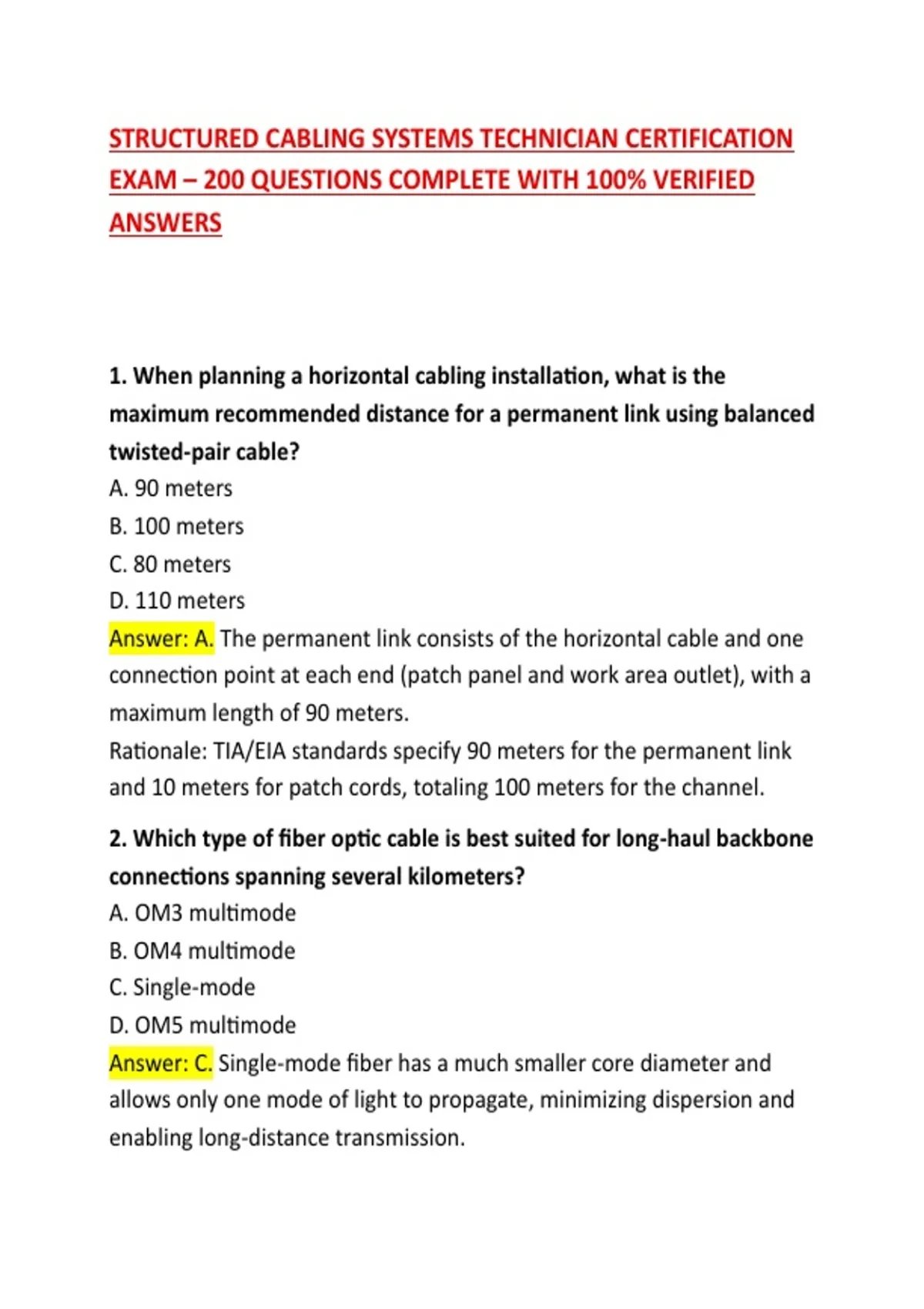

STRUCTURED CABLING SYSTEMS TECHNICIAN CERTIFICATION
EXAM – 200 QUESTIONS COMPLETE WITH 100% VERIFIED
ANSWERS
1. When planning a horizontal cabling installation, what is the
maximum recommended distance for a permanent link using balanced
twisted-pair cable?
A. 90 meters
B. 100 meters
C. 80 meters
D. 110 meters
Answer: A. The permanent link consists of the horizontal cable and one
connection point at each end (patch panel and work area outlet), with a
maximum length of 90 meters.
Rationale: TIA/EIA standards specify 90 meters for the permanent link
and 10 meters for patch cords, totaling 100 meters for the channel.
2. Which type of fiber optic cable is best suited for long-haul backbone
connections spanning several kilometers?
A. OM3 multimode
B. OM4 multimode
C. Single-mode
D. OM5 multimode
Answer: C. Single-mode fiber has a much smaller core diameter and
allows only one mode of light to propagate, minimizing dispersion and
enabling long-distance transmission.
,Rationale: Multimode fibers are limited by modal dispersion, making
them suitable for shorter distances like within a data center or campus
backbone.
3. What is the primary purpose of a consolidation point in a horizontal
cabling system?
A. To interconnect backbone and horizontal cables
B. To provide a test point for certification
C. To allow for reconfiguration of work areas without pulling new cable
from the telecommunications room
D. To convert electrical signals to optical signals
Answer: C. A consolidation point allows for modular reconfiguration of
horizontal cabling in open office environments.
Rationale: It is typically located in the work area and connects the
horizontal cable to the work area outlet, providing flexibility.
4. Which standard color code is typically used for the termination of 4-
pair unshielded twisted-pair (UTP) cable using the T568A wiring
scheme?
A. White-blue, blue, white-orange, orange, white-green, green, white-
brown, brown
B. White-green, green, white-orange, blue, white-blue, orange, white-
brown, brown
C. White-orange, orange, white-green, blue, white-blue, green, white-
brown, brown
D. White-brown, brown, white-blue, blue, white-orange, orange, white-
green, green
Answer: B. T568A uses the color sequence: white-green, green, white-
orange, blue, white-blue, orange, white-brown, brown.
,Rationale: T568A is mandated for U.S. government installations and is
interchangeable with T568B as long as both ends of a cable match.
5. A technician is installing cable in an air-handling plenum space.
Which cable jacket rating is required by the National Electrical Code
(NEC)?
A. Riser (CMR)
B. General purpose (CM)
C. Plenum (CMP)
D. Outdoor (CMX)
Answer: C. Plenum-rated cables (CMP) have low smoke and flame
spread characteristics and are required in environmental air spaces.
Rationale: NEC mandates CMP for plenum spaces because standard PVC
jackets release toxic smoke when burned.
6. What is the maximum allowable pulling tension for a 4-pair 24 AWG
copper cable during installation?
A. 25 pounds
B. 50 pounds
C. 100 pounds
D. 10 pounds
Answer: A. The standard maximum pulling tension for 4-pair balanced
twisted-pair cable is 25 pounds (110 Newtons).
Rationale: Exceeding this tension can stretch the copper conductors,
altering their geometry and degrading transmission performance.
7. Which test is used to measure the length of a copper cable and
identify faults like opens and shorts?
A. Optical Time Domain Reflectometer (OTDR)
B. Time Domain Reflectometer (TDR)
, C. Visual Fault Locator (VFL)
D. Power Meter
Answer: B. A TDR sends a pulse down the copper cable and measures
the time it takes for reflections to return, calculating distance and
identifying faults.
Rationale: OTDR is used for fiber optic cables, while TDR is specifically
for metallic (copper) cables.
8. When terminating a shielded twisted-pair (STP) cable, what is the
most critical step to ensure proper grounding and performance?
A. Untwisting the pairs as much as possible
B. Ensuring the drain wire is securely bonded to the connector shell or
ground
C. Using only T568B wiring scheme
D. Removing the foil shield completely
Answer: B. The drain wire must be terminated to a grounded connector
or patch panel to provide a path for induced noise and static.
Rationale: Proper grounding of the shield is essential for the
electromagnetic immunity that STP cables are designed to provide.
9. What is the minimum bend radius for a 4-pair UTP cable during
installation?
A. 1 times the cable diameter
B. 2 times the cable diameter
C. 4 times the cable diameter
D. 10 times the cable diameter
Answer: C. The minimum bend radius for UTP during installation is
typically 4 times the outside diameter (OD) of the cable.
Rationale: Exceeding this radius can kink the cable, altering the twist
geometry and causing signal attenuation or crosstalk.
