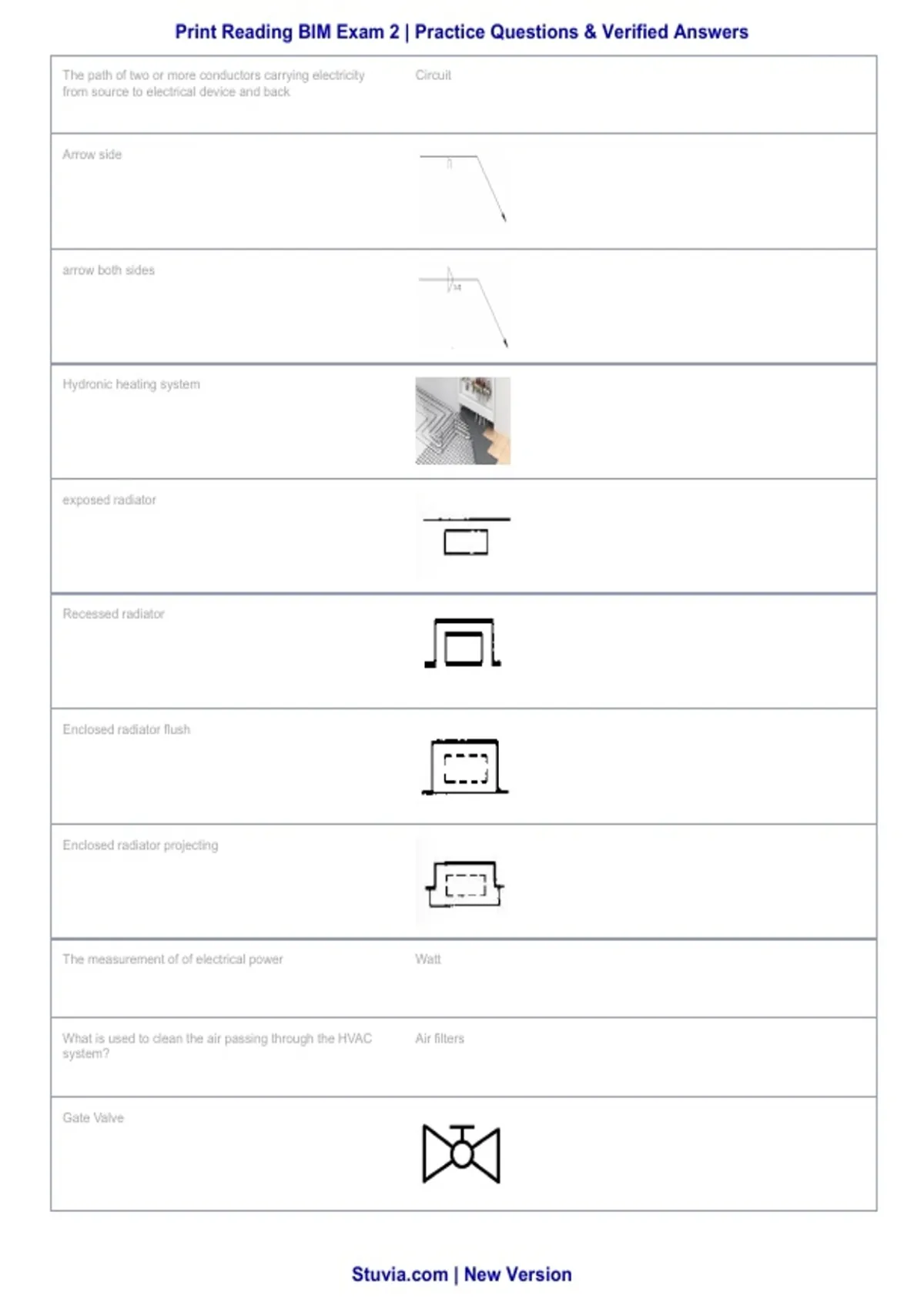

Print Reading BIM Exam 2 | Practice Questions & Verified Answers
The path of two or more conductors carrying electricity Circuit
from source to electrical device and back
Arrow side
arrow both sides
Hydronic heating system
exposed radiator
Recessed radiator
Enclosed radiator flush
Enclosed radiator projecting
The measurement of of electrical power Watt
What is used to clean the air passing through the HVAC Air filters
system?
Gate Valve
Stuvia.com | New Version
, Print Reading BIM Exam 2 | Practice Questions & Verified Answers
Forced air heating system
What type of pipe is commonly used for sewage piping? ABS
Gable
Valley
What does HVAC stand for Heating-Ventilating-Air Conditioning AND/OR Cooling
What is the electromotive force causing current to flow? Voltage
What type of pipe is commonly used for hot water supply? CPVC
What is the measurement of the current? Ampere
What type of pipe is not commonly used for hot water PVC
supply?
What terms are used to describe a bearing? Minutes, degrees, seconds
Contour lines placed close together indicate what kind of A steep slope
slope?
What makes up the core of the drawing set on a project? Architectural plans
Bearing indicates the ______________ of the line direction
_______________ plans show the materials and Architectural
construction processes used to build a structure
Stuvia.com | New Version
