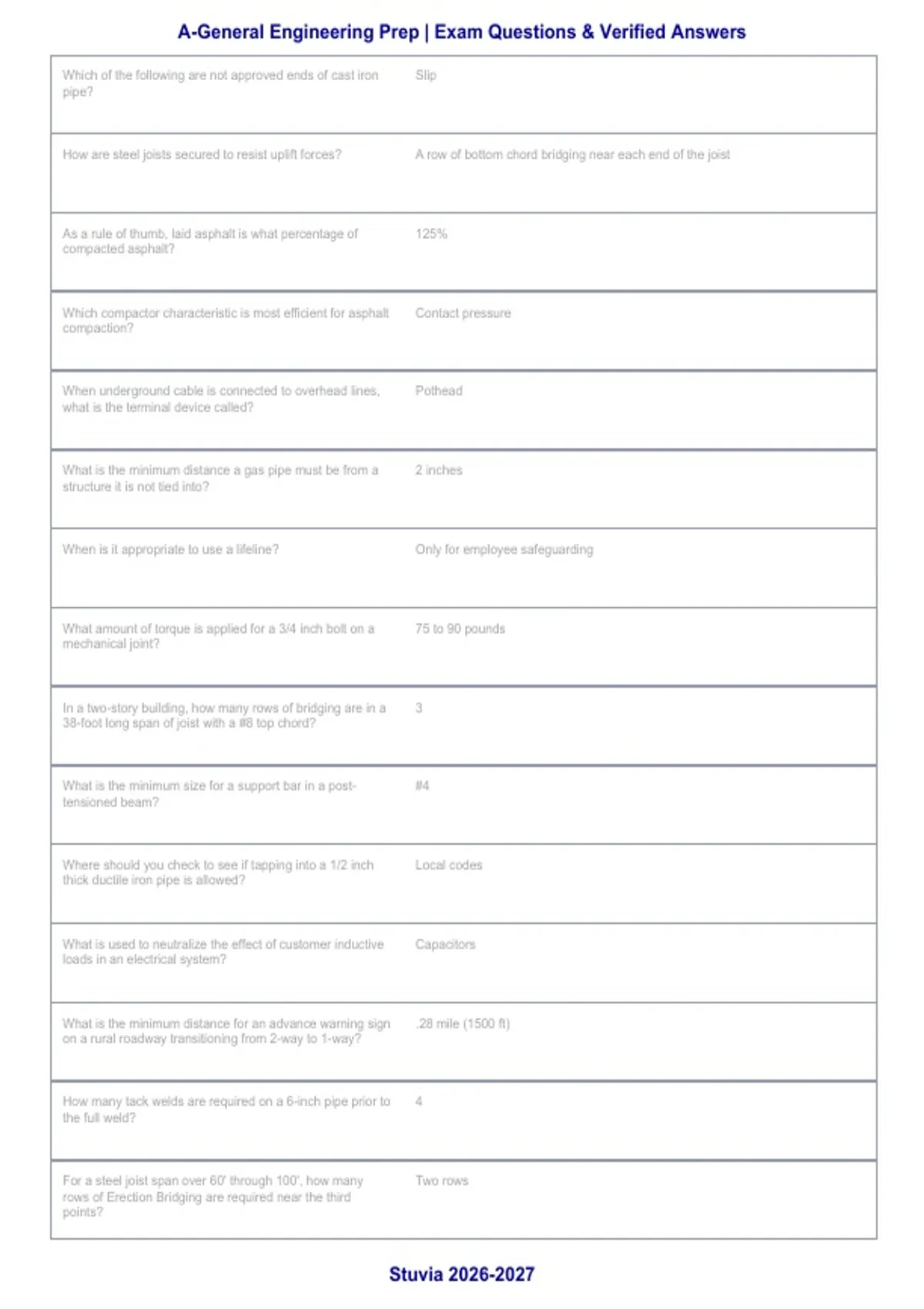

A-General Engineering Prep | Exam Questions & Verified Answers
Which of the following are not approved ends of cast iron Slip
pipe?
How are steel joists secured to resist uplift forces? A row of bottom chord bridging near each end of the joist
As a rule of thumb, laid asphalt is what percentage of 125%
compacted asphalt?
Which compactor characteristic is most efficient for asphalt Contact pressure
compaction?
When underground cable is connected to overhead lines, Pothead
what is the terminal device called?
What is the minimum distance a gas pipe must be from a 2 inches
structure it is not tied into?
When is it appropriate to use a lifeline? Only for employee safeguarding
What amount of torque is applied for a 3/4 inch bolt on a 75 to 90 pounds
mechanical joint?
In a two-story building, how many rows of bridging are in a 3
38-foot long span of joist with a #8 top chord?
What is the minimum size for a support bar in a post- #4
tensioned beam?
Where should you check to see if tapping into a 1/2 inch Local codes
thick ductile iron pipe is allowed?
What is used to neutralize the effect of customer inductive Capacitors
loads in an electrical system?
What is the minimum distance for an advance warning sign .28 mile (1500 ft)
on a rural roadway transitioning from 2-way to 1-way?
How many tack welds are required on a 6-inch pipe prior to 4
the full weld?
For a steel joist span over 60' through 100', how many Two rows
rows of Erection Bridging are required near the third
points?
Stuvia 2026-2027
, A-General Engineering Prep | Exam Questions & Verified Answers
What is the maximum allowable variance in the placement 1 inch
of a stirrup in a concrete wall?
What is the approximate time required for mechanically 1 minute
cutting Ductile Iron pipe per inch of diameter?
What are fans on substation transformers used for? Cooling oil
What is the plastic that encapsulates P/T cable called? Sheathing
What type of leak detection equipment is affected by Ultrasonic test
pneumatic or gas-powered equipment?
What should the paver operator do while waiting between Not move position, with a full hopper
haul trucks?
What is the classification for dirt placed around a concrete Type 4
pipe without tamping or compaction?
What is the required burial depth for supply cable of 75 kv 42 inches
(50,001 and above)?
What is used to maintain a good ground on a conductor Traveling ground
during stringing?
A wellpoint dewatering system is most efficient in what Sand
type of soil?
What should be used when connecting a copper pipe to a Dielectric tape
steel (ductile iron) pipe?
What is the minimum distance rock must be excavated 9 inches
from pipe diameters 30 inches or larger?
What is the purpose of a tailboard conference? Safety
What type of tie is used for tying a wall of rebar? The Wrap and Snap Tie
What is the system called that includes a PV Array, AC Generation
inverter, battery, DC disconnect, and charge controller?
Stuvia 2026-2027
, A-General Engineering Prep | Exam Questions & Verified Answers
How many inches can you deflect a 20-foot length of 8- 22 inches
inch ductile iron pipe with mechanical joints?
What is the minimum cover for a gas pipeline installed in a 24 inches
class 1 location in normal soil?
What is the minimum jet pressure required when jetting is 100 psi
specified for installing piles?
What is the standard height of a traffic sign on a highway 7 feet from shoulder height
road?
What is a voltmeter used to measure? Electric pressure
What must be done to the 1/16 inch raised face when It must be removed
bolting a Class 150 steel flange to a Class 125 cast iron
flange?
One hour of solar exposure is equal to how many degrees 15 degrees
of longitude?
What is the correct nozzle angle on a spray bar? 15-30 degrees
What is an 'H' frame transmission pole? A two pole structure connected by cross braces
A joist girder is not normally: Bridged
What size polyethylene tubing is needed to cover an 18 37 inch
inch ductile iron pipe?
What is the maximum distance you can drop a hammer 15 feet
when driving piles?
What must be done to a single joist before releasing it? Weld both sides of one bearing shoe
What tool is primarily used to hold live conductors? Wire Tongs
What is the maximum operating temperature for pipelines 250 degrees
with neoprene gasket material?
Stuvia 2026-2027
Which of the following are not approved ends of cast iron Slip
pipe?
How are steel joists secured to resist uplift forces? A row of bottom chord bridging near each end of the joist
As a rule of thumb, laid asphalt is what percentage of 125%
compacted asphalt?
Which compactor characteristic is most efficient for asphalt Contact pressure
compaction?
When underground cable is connected to overhead lines, Pothead
what is the terminal device called?
What is the minimum distance a gas pipe must be from a 2 inches
structure it is not tied into?
When is it appropriate to use a lifeline? Only for employee safeguarding
What amount of torque is applied for a 3/4 inch bolt on a 75 to 90 pounds
mechanical joint?
In a two-story building, how many rows of bridging are in a 3
38-foot long span of joist with a #8 top chord?
What is the minimum size for a support bar in a post- #4
tensioned beam?
Where should you check to see if tapping into a 1/2 inch Local codes
thick ductile iron pipe is allowed?
What is used to neutralize the effect of customer inductive Capacitors
loads in an electrical system?
What is the minimum distance for an advance warning sign .28 mile (1500 ft)
on a rural roadway transitioning from 2-way to 1-way?
How many tack welds are required on a 6-inch pipe prior to 4
the full weld?
For a steel joist span over 60' through 100', how many Two rows
rows of Erection Bridging are required near the third
points?
Stuvia 2026-2027
, A-General Engineering Prep | Exam Questions & Verified Answers
What is the maximum allowable variance in the placement 1 inch
of a stirrup in a concrete wall?
What is the approximate time required for mechanically 1 minute
cutting Ductile Iron pipe per inch of diameter?
What are fans on substation transformers used for? Cooling oil
What is the plastic that encapsulates P/T cable called? Sheathing
What type of leak detection equipment is affected by Ultrasonic test
pneumatic or gas-powered equipment?
What should the paver operator do while waiting between Not move position, with a full hopper
haul trucks?
What is the classification for dirt placed around a concrete Type 4
pipe without tamping or compaction?
What is the required burial depth for supply cable of 75 kv 42 inches
(50,001 and above)?
What is used to maintain a good ground on a conductor Traveling ground
during stringing?
A wellpoint dewatering system is most efficient in what Sand
type of soil?
What should be used when connecting a copper pipe to a Dielectric tape
steel (ductile iron) pipe?
What is the minimum distance rock must be excavated 9 inches
from pipe diameters 30 inches or larger?
What is the purpose of a tailboard conference? Safety
What type of tie is used for tying a wall of rebar? The Wrap and Snap Tie
What is the system called that includes a PV Array, AC Generation
inverter, battery, DC disconnect, and charge controller?
Stuvia 2026-2027
, A-General Engineering Prep | Exam Questions & Verified Answers
How many inches can you deflect a 20-foot length of 8- 22 inches
inch ductile iron pipe with mechanical joints?
What is the minimum cover for a gas pipeline installed in a 24 inches
class 1 location in normal soil?
What is the minimum jet pressure required when jetting is 100 psi
specified for installing piles?
What is the standard height of a traffic sign on a highway 7 feet from shoulder height
road?
What is a voltmeter used to measure? Electric pressure
What must be done to the 1/16 inch raised face when It must be removed
bolting a Class 150 steel flange to a Class 125 cast iron
flange?
One hour of solar exposure is equal to how many degrees 15 degrees
of longitude?
What is the correct nozzle angle on a spray bar? 15-30 degrees
What is an 'H' frame transmission pole? A two pole structure connected by cross braces
A joist girder is not normally: Bridged
What size polyethylene tubing is needed to cover an 18 37 inch
inch ductile iron pipe?
What is the maximum distance you can drop a hammer 15 feet
when driving piles?
What must be done to a single joist before releasing it? Weld both sides of one bearing shoe
What tool is primarily used to hold live conductors? Wire Tongs
What is the maximum operating temperature for pipelines 250 degrees
with neoprene gasket material?
Stuvia 2026-2027
